Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Electronic Set - Wifi V1.0 B Package

Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Electronic Set - Wifi V1.0 B Package

Pixhawk PX4 PIX 2.4.8 is an advanced and highly stable flight controller designed for both professional and hobby-level multirotor projects. The WiFi V1.0 telemetry module included in the set enables wireless configuration and telemetry monitoring.

Pixhawk PX4 PIX 2.4.8 32 Bit Flight Controller Electronic Set - Wifi V1.0 B Package Technical Specifications:

• Processor: 32-bit STM32F427 Cortex-M4, 168 MHz

• Sensors: 3-Axis Gyroscope, Accelerometer, Magnetometer, and Barometer (high-precision IMU structure)

• Input Voltage (Pixhawk): 4.8V – 5.4V

• Power Module Input Voltage: 2S – 6S Li-Po (6V – 26V)

• Current Measurement Support: 90A / 120A compatible power module (may vary depending on package)

• Communication Protocols: PWM, PPM, SBUS, DSM/DSM2/DSM-X, I2C, CAN, UART, MAVLink

• Compatibility: PX4, ArduPilot (Copter, Plane, Rover)

• WiFi Telemetry Module: WiFi V1.0 – Wireless telemetry and configuration via UDP

• Connections: GPS, I2C, Telemetry, Power, ESC outputs, RC-IN

• Use Cases: Multicopters, fixed-wing aircraft, VTOL platforms, autonomous vehicle projects

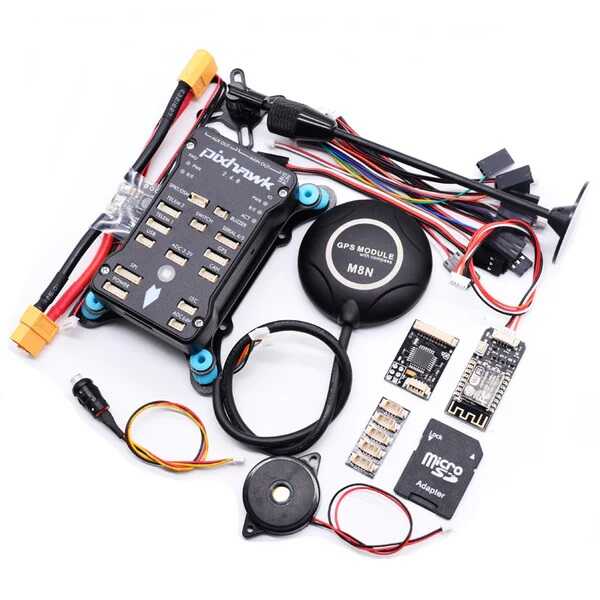

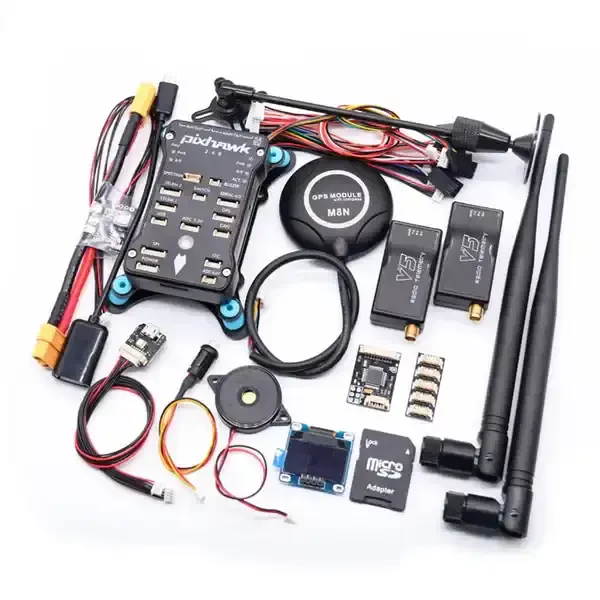

Package Contents:

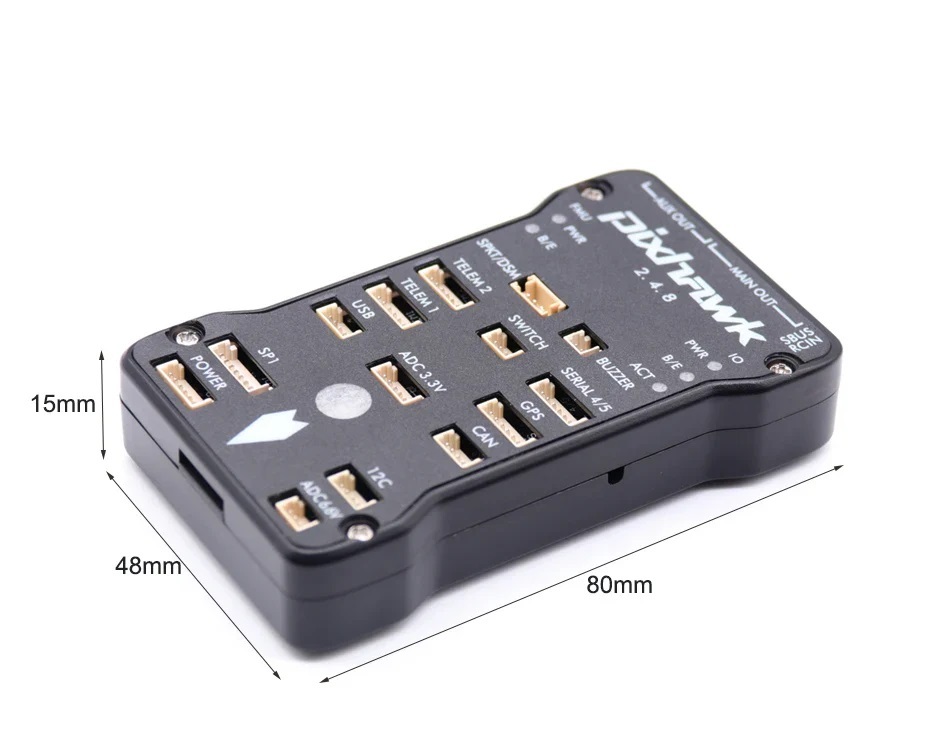

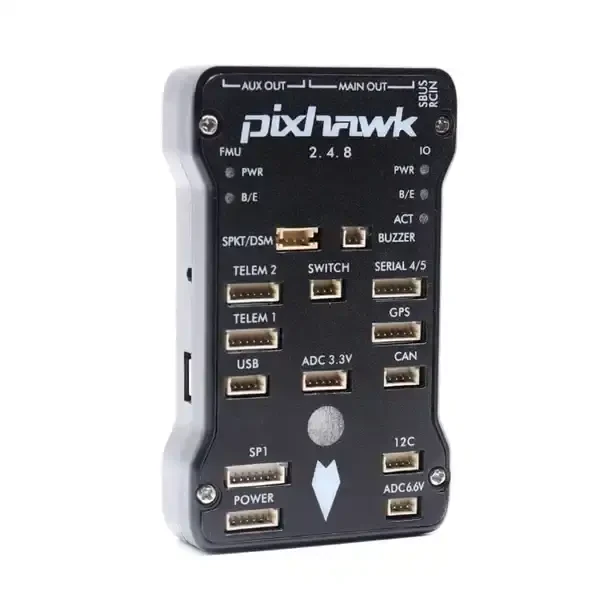

• Pixhawk PX4 PIX 2.4.8 Flight Controller

• WiFi V1.0 Telemetry Module

• Power Module

• Buzzer Warning Module

• Connection Cables

• GPS Module
