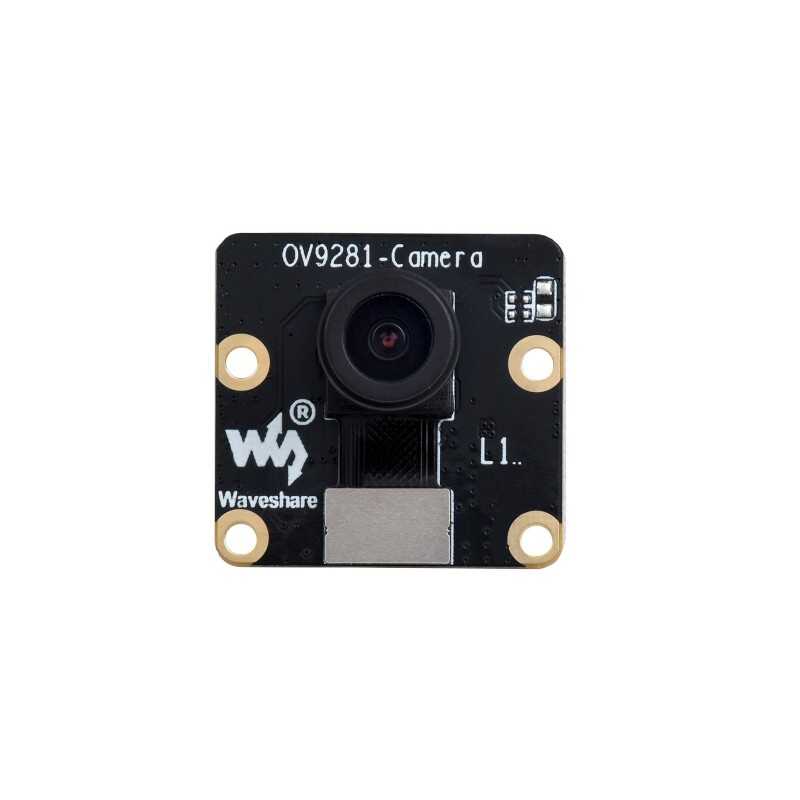

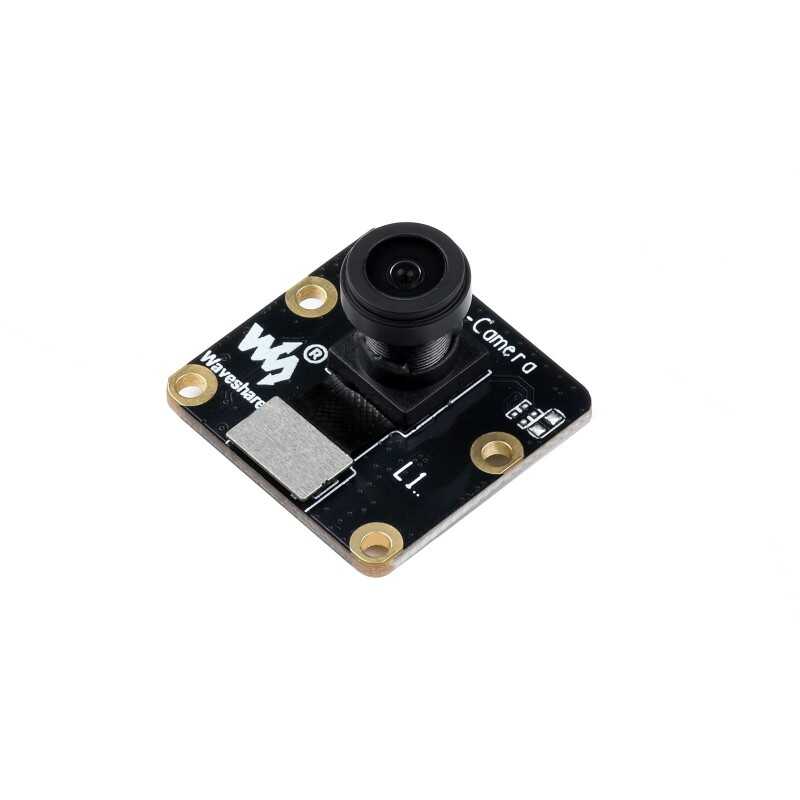

OV9281-120 Mono Camera for Raspberry Pi, Global Shutter, 1MP

OV9281-120 1MP Mono Camera Connects Directly to Different Kinds of Raspberry Pi Including 4B/3B+/3A+/3B/2B/B+/A+. Zero / Zero 2 W Series Requires Extra FPC Cable. Spherical Shutter Eliminates Jelly Effect When Shooting Fast Moving Objects, More Suitable for High Frame Rate Capturing.




OV9281-120 1MP Mono Camera for Raspberry Pi Specifications:

• Sensor: OV9281
• Camera Type: mono
• Shutter: Spherical shutter
• Distortion: 7.5%Focal Length: 3.15mm

• cmos Size: 1/4 inch
• Pixels: 1MP (1280 x 800)
• Aperture: F2.5
• Field of View: 120°(E)
• Focus: Fixed focus

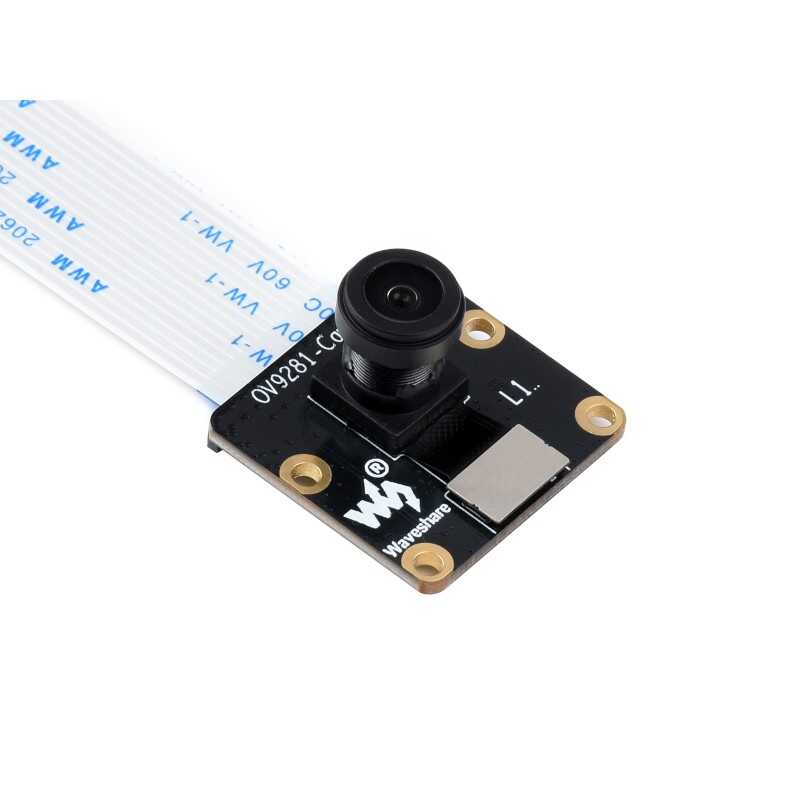

Working with Raspberry Pi:

Direct Connection To Different Kinds Of Raspberry Pi Including 4B/3B+/3A+/3B/2B/B+/A+, Extra FPC Cable Required For Zero / Zero 2 W Series.

NOTE: for reference only, NOT including Raspberry Pi and yellow FPC.


OV9281-120 1MP Mono Camera Dimensions:
