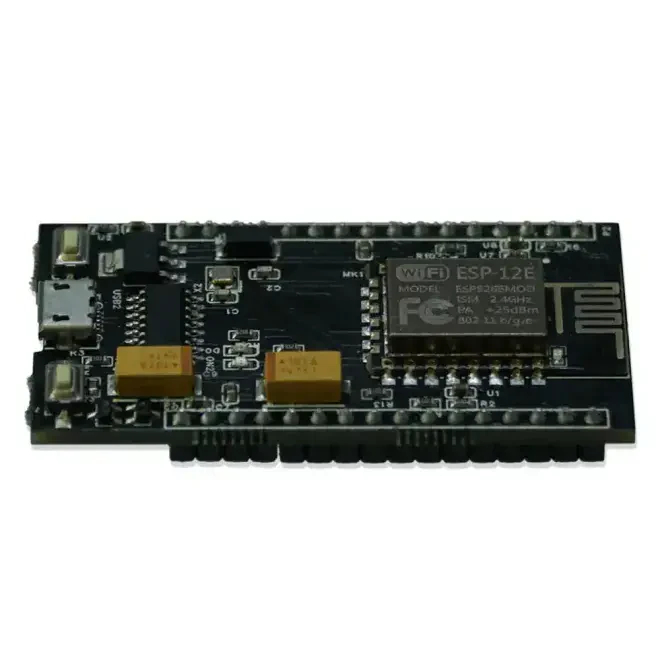

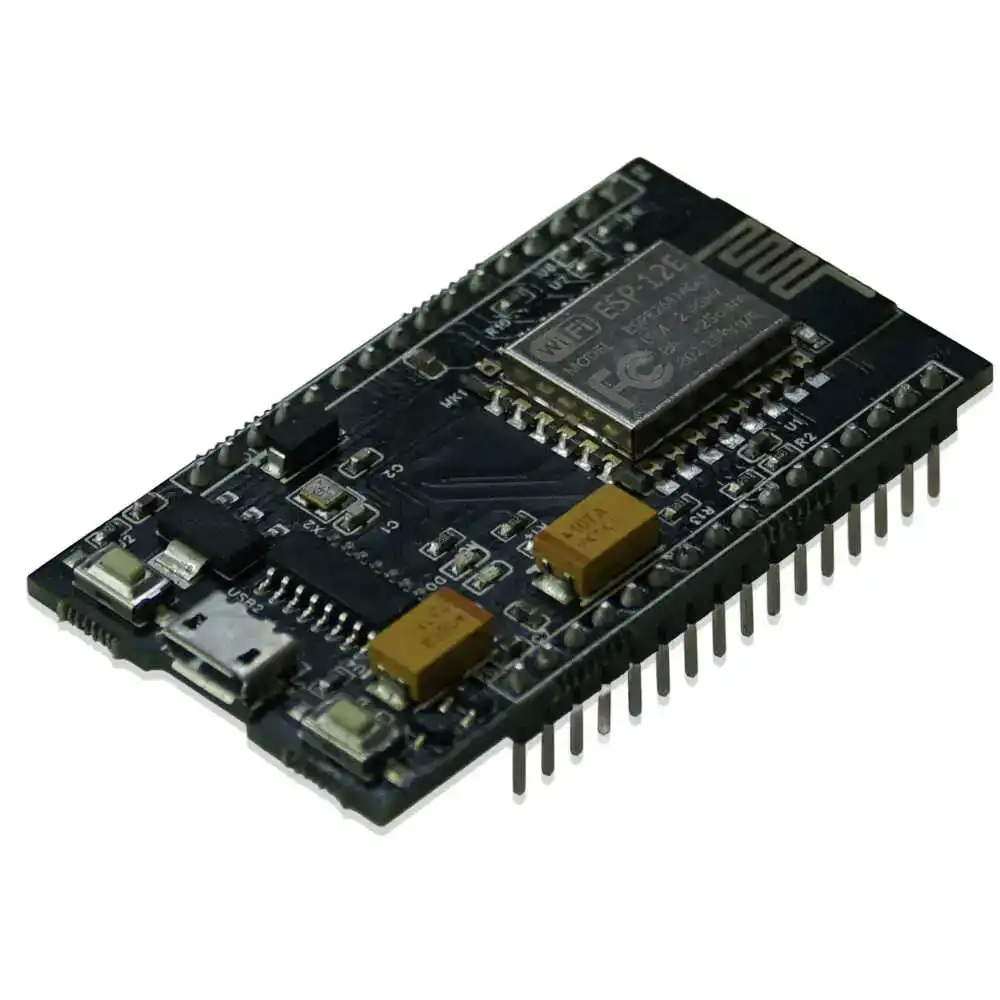

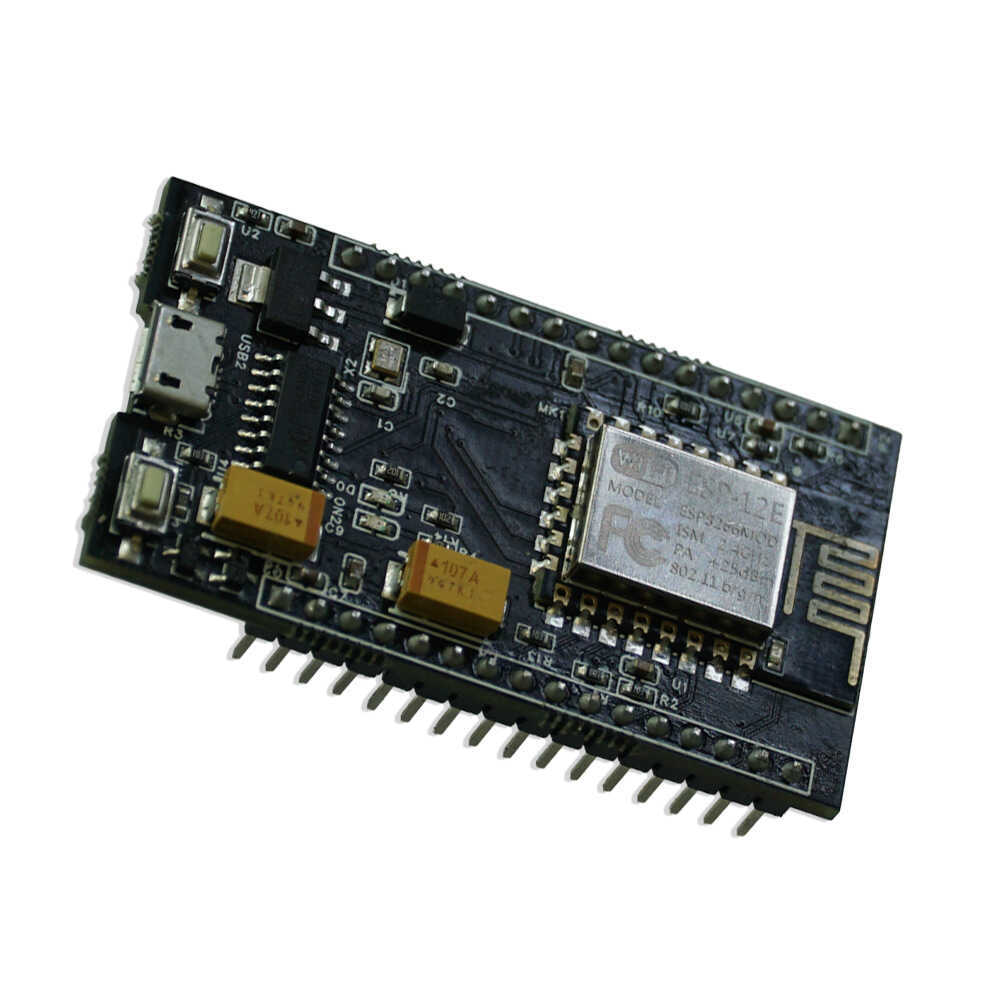

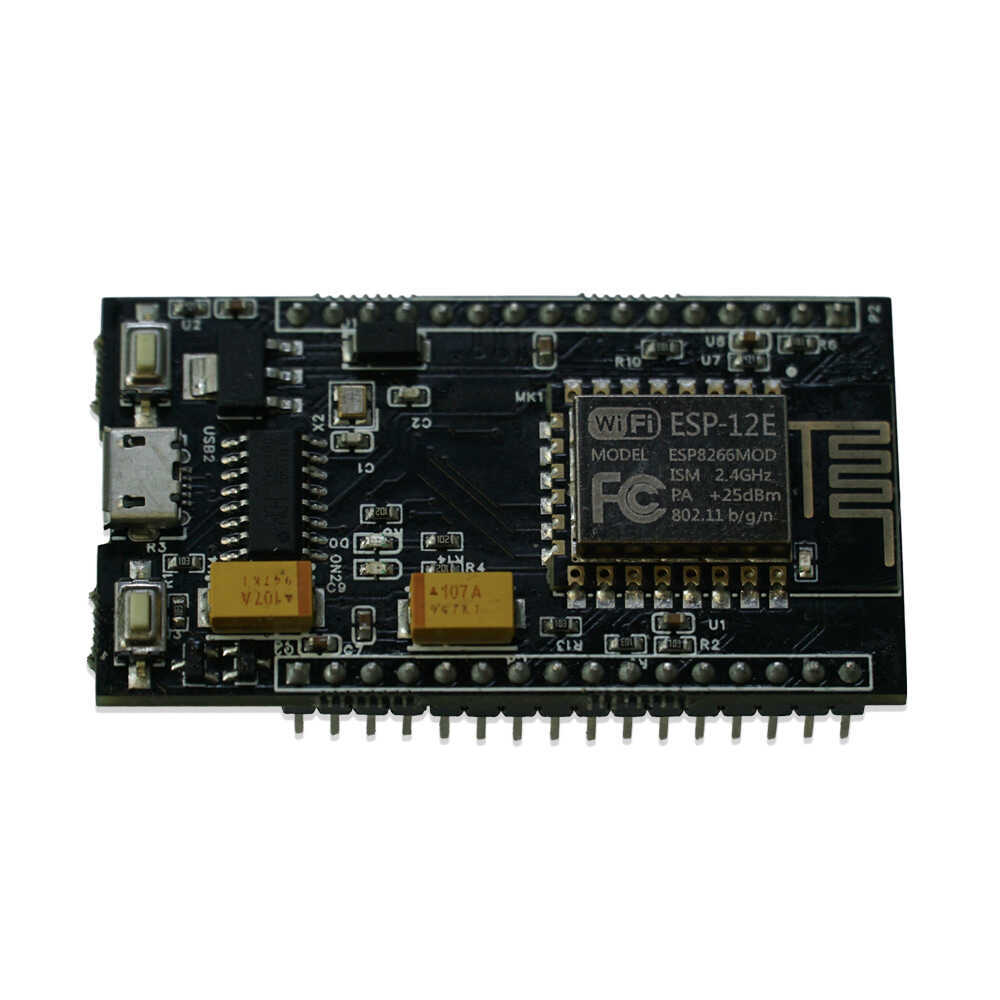

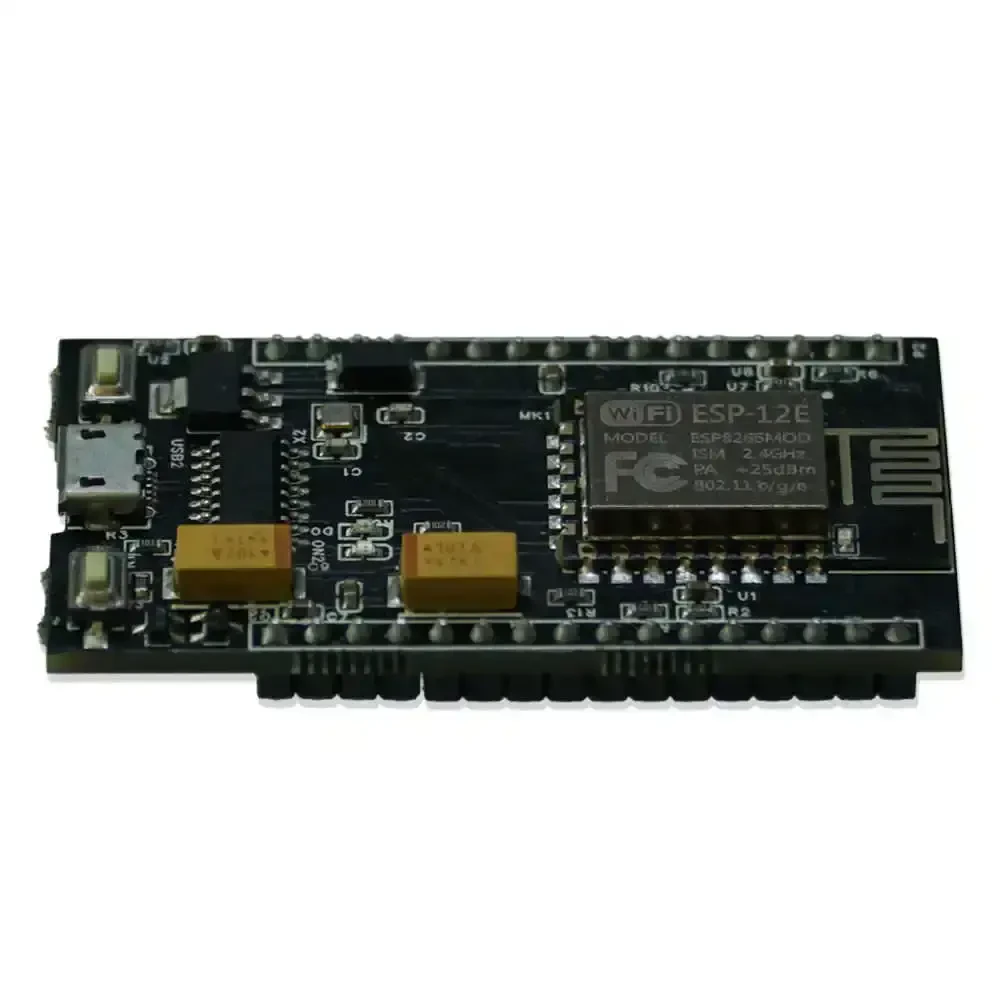

NodeMCU V3 ESP8266 ESP-12E Development Board - 32 pin

NodeMCU V3 ESP8266 ESP-12E Development Board - 32 pin

The NodeMCU V3 ESP8266 ESP-12E Development Board is an excellent choice for those looking to build IoT (Internet of Things) projects and smart devices. This development board is based on the ESP8266 ESP-12E Wi-Fi module and offers a powerful and compact platform.

NodeMCU V3 provides a broad and efficient development environment. You can quickly build projects using popular programming languages like Arduino IDE or MicroPython. Its integrated Wi-Fi support makes it easy for your device to connect to the internet and communicate data.

The NodeMCU ESP8266 development board is compatible with various sensors, motors, relays, and other components. With its GPIO pins, you can customize and expand your projects. The built-in voltage regulator ensures a stable power supply and enables your projects to run more reliably.

NodeMCU V3 ESP8266 ESP-12E Development Board offers an ideal platform for smart home applications, remote monitoring systems, sensor networks, autonomous devices, and more. With its user-friendly interface and expandable structure, bringing your projects to life is now easier.

LoLin is a development board with a preloaded NodeMCU firmware running on the ESP8266 WiFi module. Since it is developed using the ESP8266 SDK, it supports GPIO, PWM, IIC, 1-Wire, and ADC connections without requiring an extra microcontroller.

https://www.youtube.com/watch?v=h65adj50fcs&t=992s

NodeMCU V3 ESP8266 ESP-12E Development Board - 32 pin Technical Specifications:

• Based on ESP8266 ESP-12E Wi-Fi module

• 32-pin extended GPIO layout

• 80 MHz – 160 MHz processor frequency

• Supports 11 digital I/O, PWM, I2C, SPI, ADC

• Easy programming via MicroUSB

• Compatible with 3.3V – 5V (input USB 5V, output 3.3V)

• eLua core (Lua 5.1.4)

• Supports lua-cjson

• spiffs file system

• Supports json, file, timer, pwm, i2c, spi, 1-wire, net, mqtt, coap, gpio, wifi, adc, uart, and system APIs
