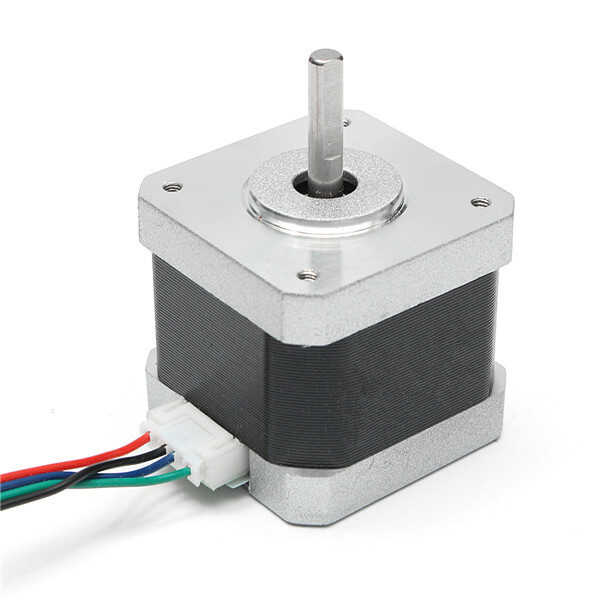

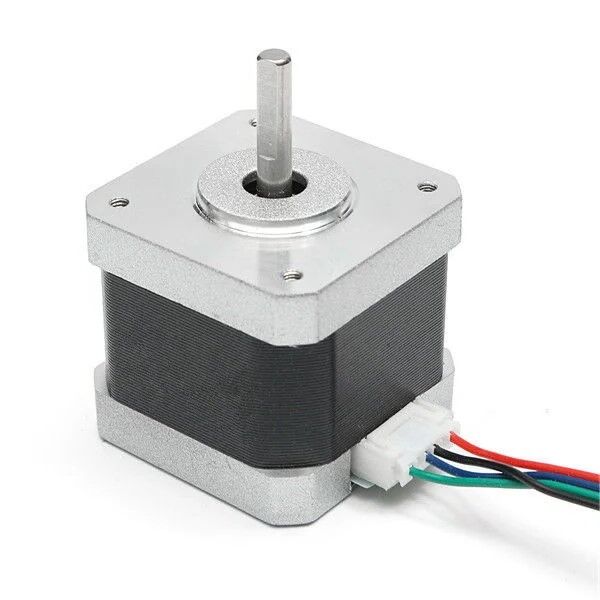

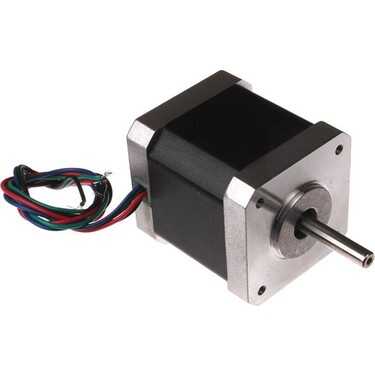

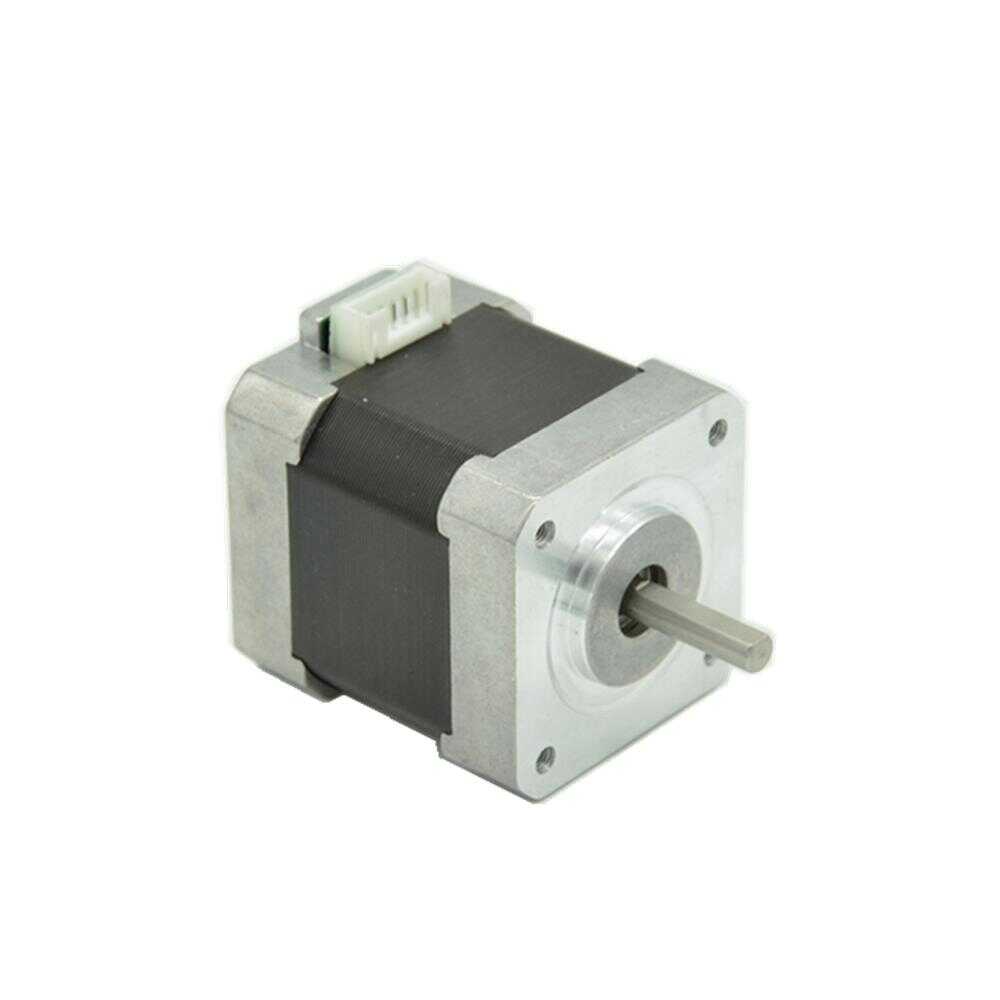

Nema17 Stepper Motor BYGHW609 A 1.7A 1.8 Degree - 40mm Length

Product Code
Brand / Origin
Without Vat
273.76 TL



Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Nema17 Step Motor BYGHW609 A 1.7A 1.8 Degree - 40mm Length

    The Nema17 Step Motor BYGHW609 A 1.7A 1.8 Degree - 40mm Length is a powerful stepper motor for 3D printers, CNC machines, robotic projects, and other automation applications. This high-quality stepper motor provides precise motion control and enhances the performance of your project.

    The BYGHW609 A model is a compact Nema17 stepper motor with a length of 40mm. This motor generates high torque while offering a 1.8-degree step angle for precise movements. This allows you to achieve high precision and accuracy in your prints or moving parts.

    The current rating of the stepper motor is 1.7A, providing high-performance and powerful motion. The motor's high torque output enables it to carry heavy loads easily and operate reliably in your projects.

    The BYGHW609 A stepper motor features a durable and robust construction. It is made from high-quality materials for long-lasting use. This ensures you can rely on it for extended periods in your projects.

    The Nema17 Step Motor BYGHW609 A 1.7A 1.8 Degree - 40mm Length is easy to integrate and offers a wide range of applications. It's a preferred choice in various applications such as 3D printers, CNC machines, and robotic projects.

    This stepper motor provides strong and stable performance in your project's motion system. Its reliability and precise control make it stand out. Purchase it now and enhance the efficiency of your project!

    Nema17 Step Motor BYGHW609 A 1.7A 1.8 Degree Technical Specifications:

    •  Model: BYGHW609 A
    •  Motor Type: Nema17
    •  Length: 40mm
    •  Step Angle: 1.8 degrees
    •  Current: 1.7A
    •  Phases: 2-phase
    •  Operating Voltage: 12V
    •  Coil Resistance: 1.5 ohm
    •  Coil Inductance: 3.2 mH
    • Holding Torque: 4.4
    • Acceleration Torque: 3.2
    •  Step Angle Accuracy: ±5%
    •  Maximum Operating Temperature: 80°C
    •  Insulation Class: B
    •  Wiring: 4-wire
    •  Weight: Approximately 250 grams
