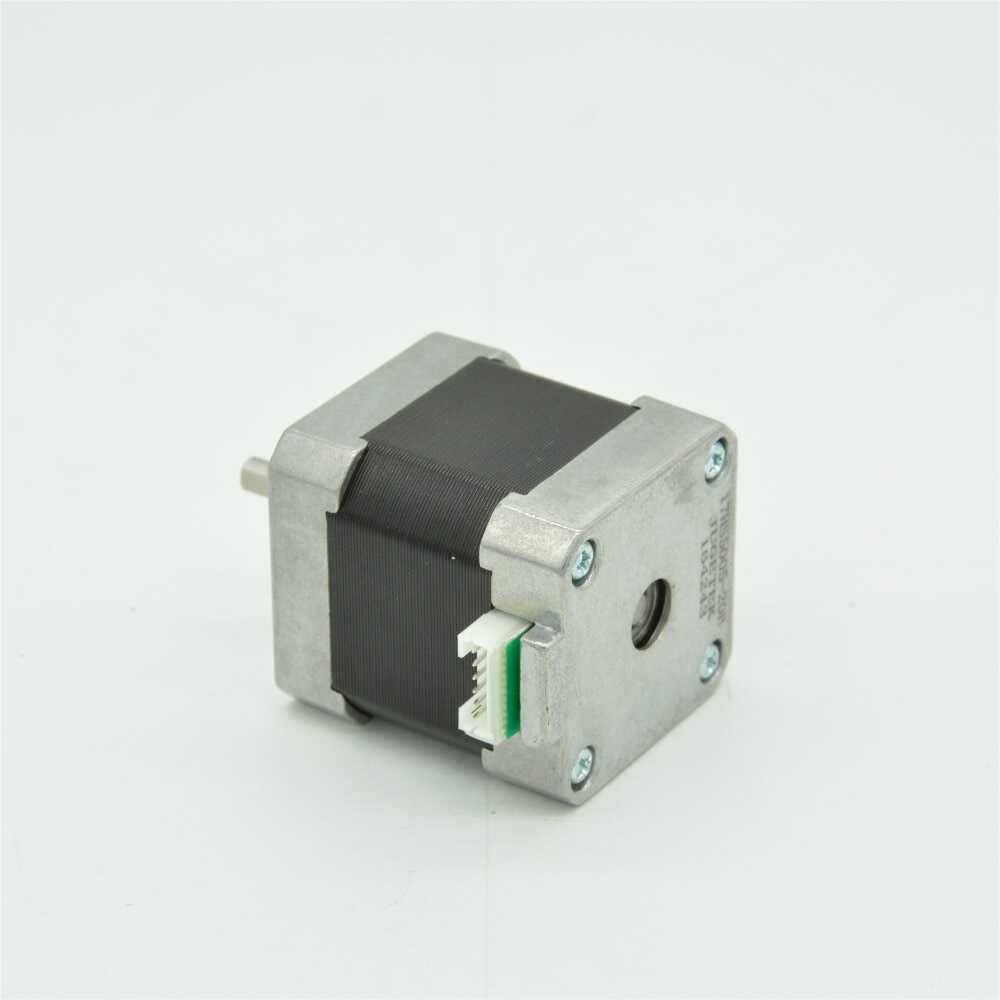

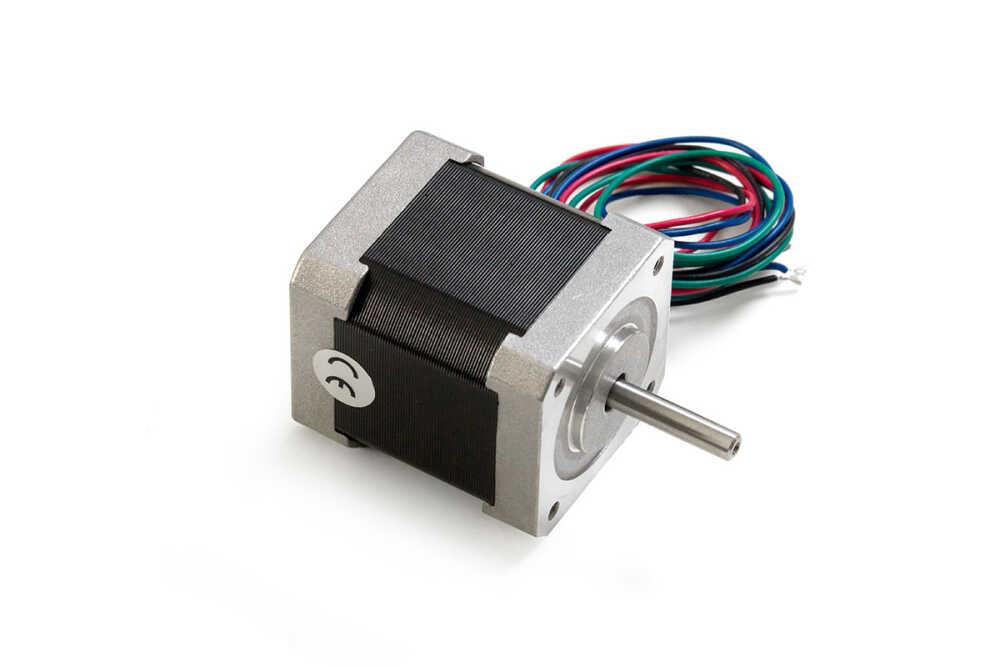

Nema17 Stepper Motor 1.68A

Nema17 Stepper Motor 1.68A

Nema17 Stepper Motor, is a motor used in 3D printers and for projects that require precise control, such as CNC machines. Since it can be controlled numerically, it can be controlled by products such as computers or microprocessors. Since it can convert electrical energy into physical energy by rotational motion, it can change its angular position in steps. In addition, the motor has 4 wires, so it can be controlled together with DC motor drives working with H-bridge logic.

Nema17 Stepper Motor Technical Specifications:

• Dimension: 43.3 x 42 mm
• Weight: 295 g
• Current Rating: 1.68A
• Shaft Diameter: 5 mm
• Shaft Length: 20 mm
• Voltage Value: 2.8V / 4V (It can also work with 12V / 24V.)
• Resistance: 1.70 Ω (Per Coil)
• Inductance: 4.5 mH (Per Coil)
• Holding Torque: 4 cm
• Number of Cables: 4-Pin Cable
• Cable Length: 100 cm
• Radial Load: 100N
• The output shaft is supported by two ball bearings.
