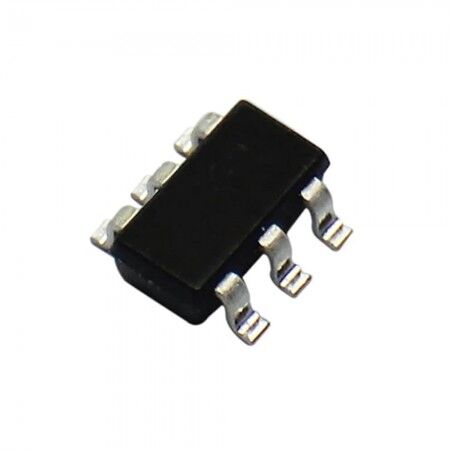

MT3608 SOT-23-6L SMD Voltage Regulator IC

MT3608 SOT-23-6L SMD Voltage Regulator IC

The MT3608 is a high-efficiency, fixed-frequency step-up (boost) DC-DC converter IC offered in a compact 6-pin SOT-23 package. Operating at 1.2MHz, it enables the use of low-cost passive components and supports high efficiency. It features soft start for controlled inrush current and switches to pulse frequency modulation (PFM) under light loads to save energy.

Technical Specifications:

• Input Voltage: 2V – 24V
• Output Voltage: Adjustable, up to 28V
• Maximum Output Current: 2A
• Switching Frequency: 1.2MHz
• Efficiency: Up to 93%
• Internal Power MOSFET Resistance: 80mΩ
• Protections: Overcurrent, overtemperature, undervoltage lockout
• Operating Temperature: -40°C to +85°C
• Package Type: SOT-23-6

Applications:

• Battery-powered devices
• LCD display bias supply
• Set-top boxes
• DSL and cable modems
• PCI/PCIe network cards
