Micro:Mate - A Mini Expansion Board for micro:bit (Gravity Compatible)
INTRODUCTION

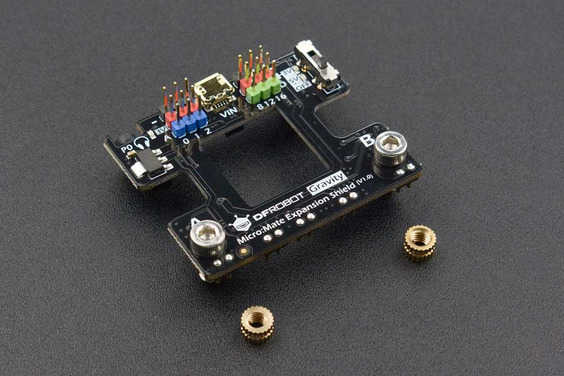

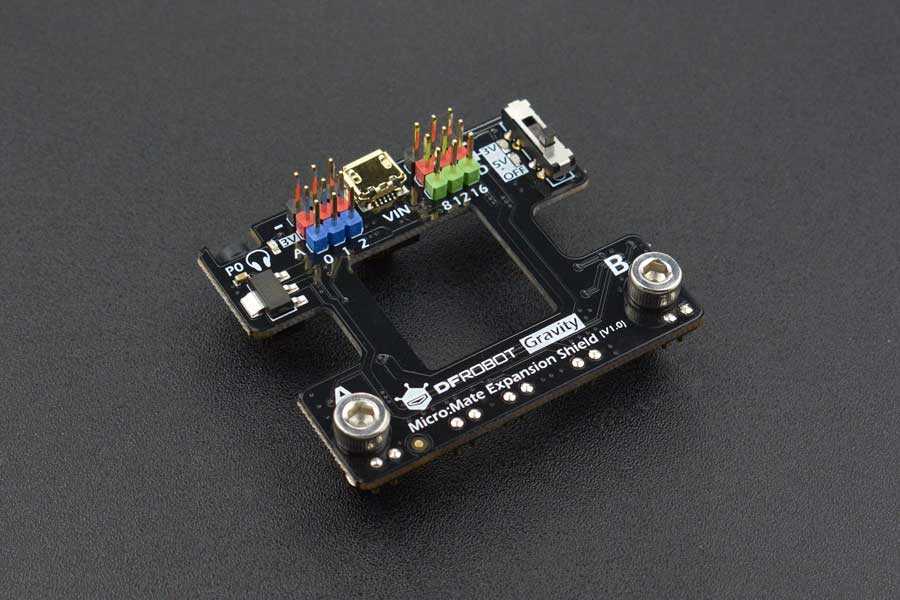

Micro:Mate is a tiny micro:bit I/O expansion board for learning electronics and building DIY projects.

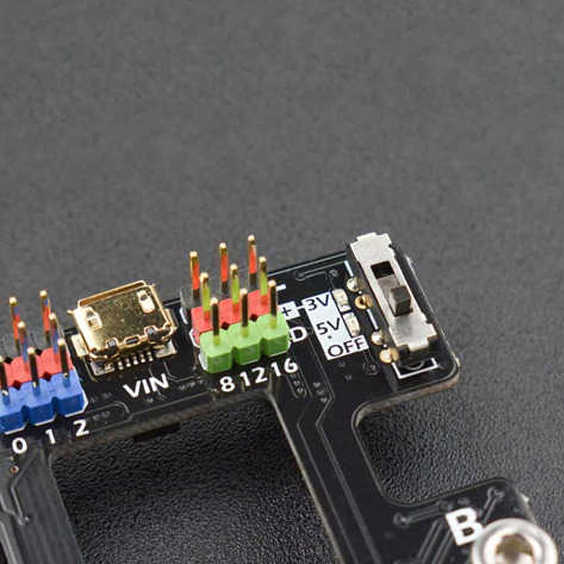

Micro:Mate expands 6 sets of 3-pin I/O interfaces, capable of connecting DFRobot Gravity series modules, servo motors, sensorsand jumper wires. Additionally, Pin 8, 12, 16 support voltage switch between 3V-5V, allowing up to 5V 2A digital (PWM) output.

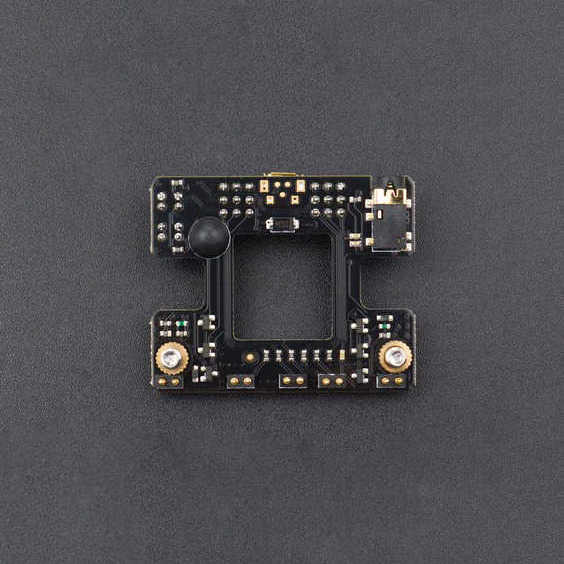

Micro:Mate is in the same dimension of micro:bit. It connects to micro:bit through contact pins (with spring loaded), ensuring easy, compact and secure connection. The rubber bumpers and the 3.5mm audio jack on the back side keep the expansion installed stably on the board, meanwhile prevents reversed connection.
Note:
The mounting screws should be well tightened to ensure a secured connection.

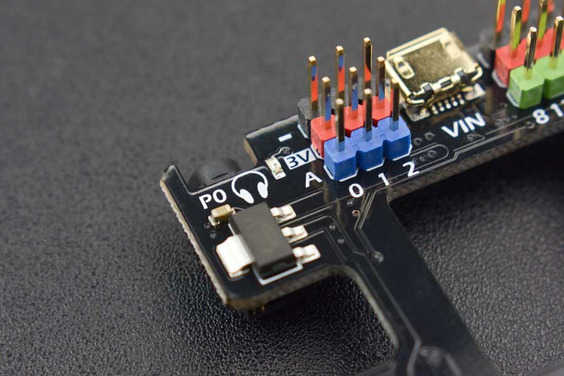

Micro:Mate only supports 3V (3.3V) analog input from Pin 0, 1, 2. The Micro USB
Power port on Micro:Mate cannot be used for data transmission.
Components with large power consumption should be connected to Pin 8, 12, 16, with 5V power supply.
Part needed
2 x 9G servo motor
1 x microbit
1 x micro:mate(breakout board)
1 x Pan tilt kit
1 x stuffed toy bear
Arcylic car chassis with 3 wheels (kit)
L9110 Dual Channel Motor Driver Module
micro:bits x 2
micro:bit mate
micro:gamepad
Double sided tape to stick the battery holder to the acrylic
Glue gun to immobilize the back wheel
Dupont cables
Project 8. micro:bit Christmas tree
Micro:Mate expands 6 sets of 3-pin I/O interfaces, capable of connecting DFRobot Gravity series modules, servo motors, sensorsand jumper wires. Additionally, Pin 8, 12, 16 support voltage switch between 3V-5V, allowing up to 5V 2A digital (PWM) output.
Micro:Mate is in the same dimension of micro:bit. It connects to micro:bit through contact pins (with spring loaded), ensuring easy, compact and secure connection. The rubber bumpers and the 3.5mm audio jack on the back side keep the expansion installed stably on the board, meanwhile prevents reversed connection.
Note:
The mounting screws should be well tightened to ensure a secured connection.
Micro:Mate only supports 3V (3.3V) analog input from Pin 0, 1, 2. The Micro USB
Power port on Micro:Mate cannot be used for data transmission.
Components with large power consumption should be connected to Pin 8, 12, 16, with 5V power supply.
| Product Image |  |
 |
 |
| Product Name | Micro:bit - an Educational & Creative Tool for Kids | Micro:Mate - A Mini Expansion Board for micro:bit (Gravity Compatible) | micro:bit Expansion Board for Boson (Gravity Compatible) |
| SKU | DFR0497 | DFR0518 | DFR0521 |
| Operating Voltage | 3.5~5.5V | 3.3V/5V | 3.3V |
| Power supply | DC2.1/Terminals | USB | USB |
| External supply voltage | 3.5~5.5V | 3.3V/5V | 3.3V/5V |
| Digital ports (IO/PWM) | 17/8 | 3 | 3 |
| Analog ports (input/output) | P0、P1、P2 | 3 | 3 |
| UART | x | x | x |
| I2C | 2 | x | x |
| SPI | x | x | x |
| Interrupt pin (quantity) | x | x | x |
| Interface Type | Gravity | Gravity | Gravity |
| 3.5mm headphone port | x | √ | √ |
| Dimension | 63 x 58 mm | 68.5×53.3 mm | 80×70 mm |
| Mounting hole | 50*55 | - | - |
| Weight (g) | 64 | 23 | 48 |
| Price | $14.9 | $5.9 | $7.9 |
| Drive the servo | √ | √ | x |
| Scenarios | Many motors and sensors needed | Suitable for small Works | Initial Stage |
| Key Features |
17 io ports with 2 i2c interfaces Can drive Quad DC Motor Driver |
IO port expands 6 and the pin replaces the edge connector slot
Anti-reverse pad on the back, which protects the control board and prevents micro-reverse
Drive high current equipment, such as steering gear, components connected to 8 12 16
|
3-Pin fool-proof connector x 6 Edge Connector
|
Project 1: OBLOQ-IoT Module +Micro:bit IoT Flower Watering
Hardware list:
Gravity: UART OBLOQ – IOT Module (Microsoft Azure)
Micro:Mate - A Mini Expansion Board for micro:bit (Gravity Compatible)
Micro:bit - an Educational & Creative Tool for Kids
9g Metal Gear Micro Servo (1.8Kg)
One bottle and part of tube
Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant
Project 2: Microbit Projects: Yes/No Bear
There are 2 possible answers. Either yes or no. We randomly generate the outcome when a button is pressed. When the answer is yes, the display will show Y & the tilt servo will response. When no, the display will show N and pan servo will response.Part needed
2 x 9G servo motor
1 x microbit
1 x micro:mate(breakout board)
1 x Pan tilt kit
1 x stuffed toy bear
Project 3: Micro:bit car with DFRobot gamepad
What you need?Arcylic car chassis with 3 wheels (kit)
L9110 Dual Channel Motor Driver Module
micro:bits x 2
micro:bit mate
micro:gamepad
Double sided tape to stick the battery holder to the acrylic
Glue gun to immobilize the back wheel
Dupont cables
Project 4: LED writing board (micro:bit compatible)
The LED writing board is created using a photo frame that is surrounded with LED strip lights. When button A is pressed, the led strip turns white and flash. When button B is pressed, a random color is generated. To off, press button A and B together.
Hardware components:
- photo frame
- RGB individually addressable LED strip (neo pixels)
- microbit
- micro:mate(breakout board)
Microbit Project 5: Basketball score counter
Part needed
- IR sensor *1
- micro:bit *1
- micro:mate(breakout board) *1
- Gravity: Digital Speaker Module *1
- Dupont cables *1
- Basketball hoop *1
Project 6. Magnet switch lamp with micro:bit
Components list
- Micro:bit
- Micromate
- magnet
- 8 x ws2812 5050 led ring
- Dupont cables
- Christmas Ornaments
Hardware components:
- 9G servo motor *2
- micro:bit *1
- micro:mate(breakout board) *1
- Pan tilt kit *1
- Dual-axis XY Joystick Module *1
- 2n2222 transistor *1
- WLtoys Missile shooter *1
- Dupont cables
Project 8. micro:bit Christmas tree
Hardware components:
- Micro:bit *1
- Micro:Mate - A Mini Expansion Board for micro:bit *1
- 360 servo *1
- DFPlayer - A Mini MP3 Player For Arduino *1
- Dupont cables *1
FEATURES
- Color coded Gravity 3-Pin interface, compatible with hundreds of plug&play electronic modules
- 3-way analog input; 6-way digital input/output (PWM); 3V/5V jumper switch; 3.5mm audio jack
- External Micro USB power port, up to 5V 2A power output.
- Well-designed component lay-out and silk-screen. Reversed connection protection.
SPECIFICATION
- Interface: 6 x Gravity 3Pin
- Operating Voltage: 5V/3.3V
- Input Power: <10W
- Measuring Range: 0-3.3V (Analog), 0-5V (Digital):

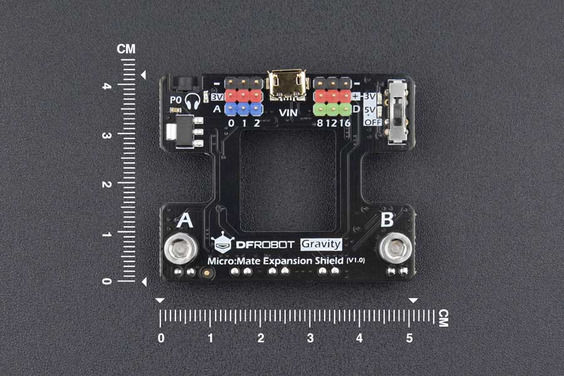

- Dimension：68.5 * 53.3mm/ 2.7 * 2.1 inches
- Weight：22.8g
DOCUMENTS
SHIPPING LIST
- Micro:Mate Gravity Expansion Board x1
- Brass nut M4*5*4 x2
