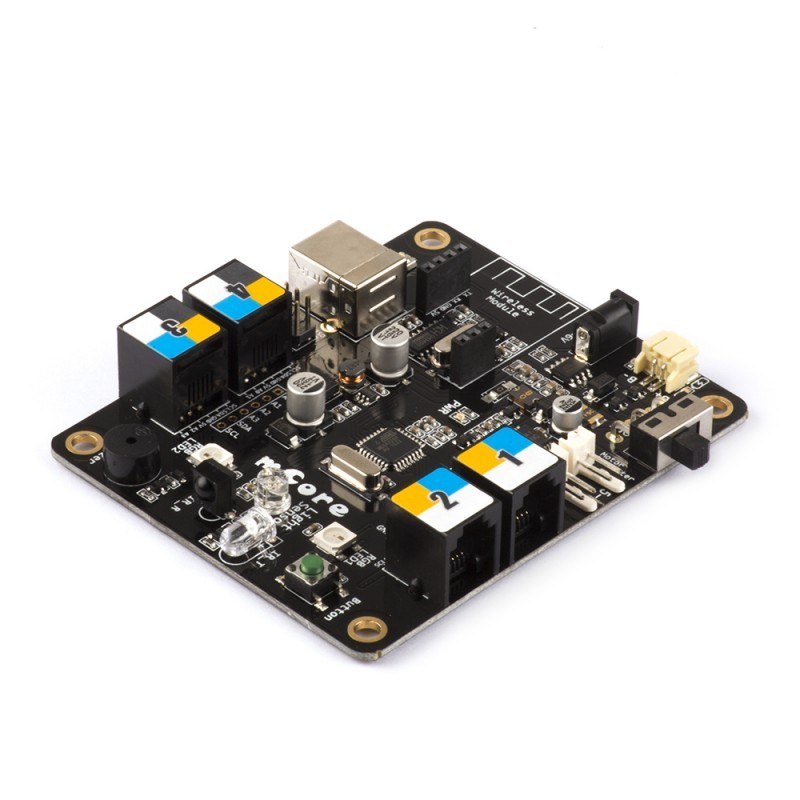

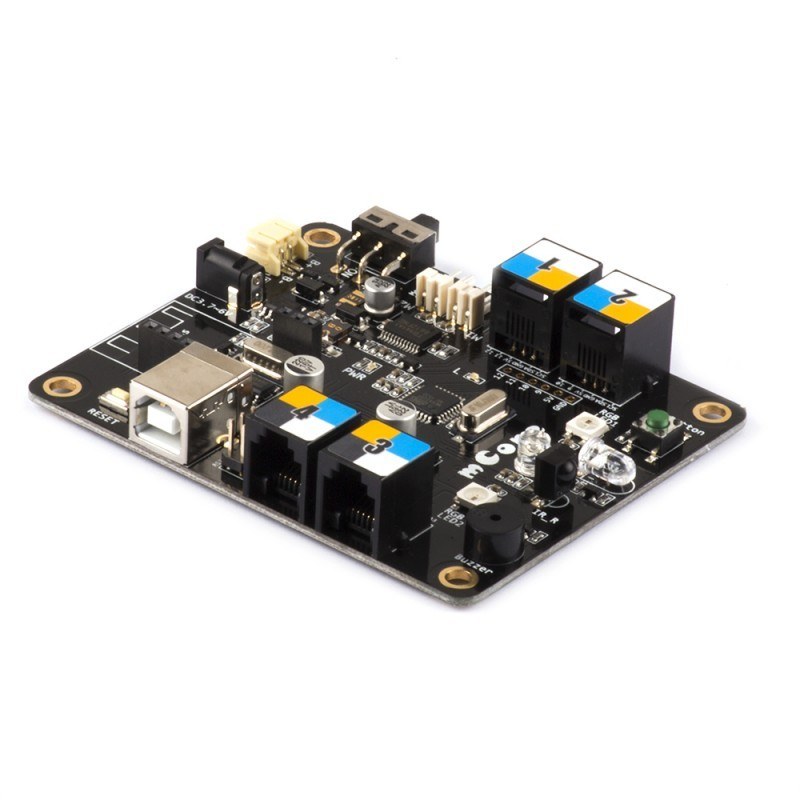

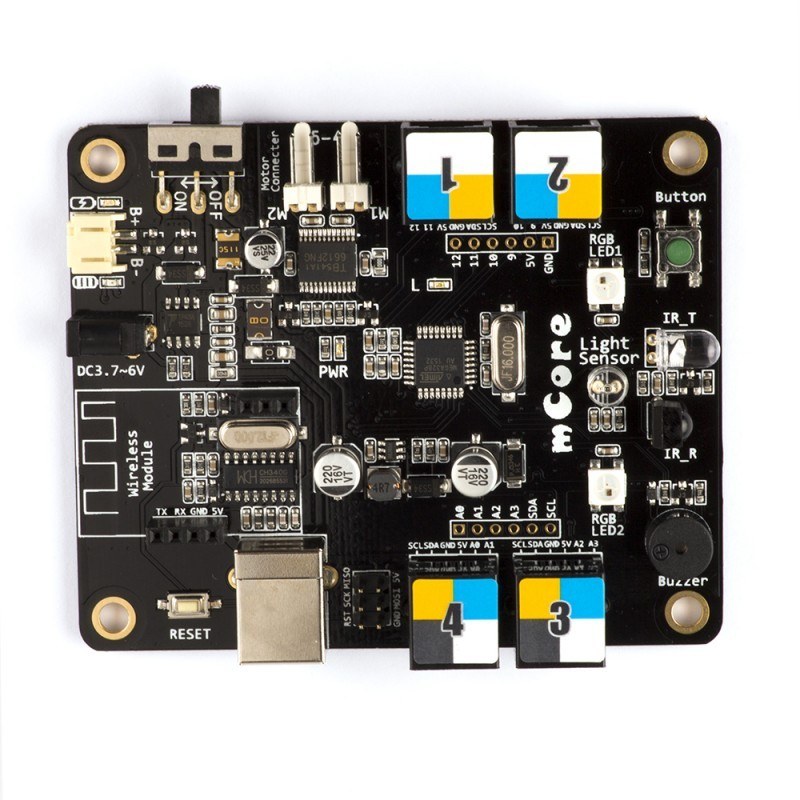

mCore - Main Control Board for mBot

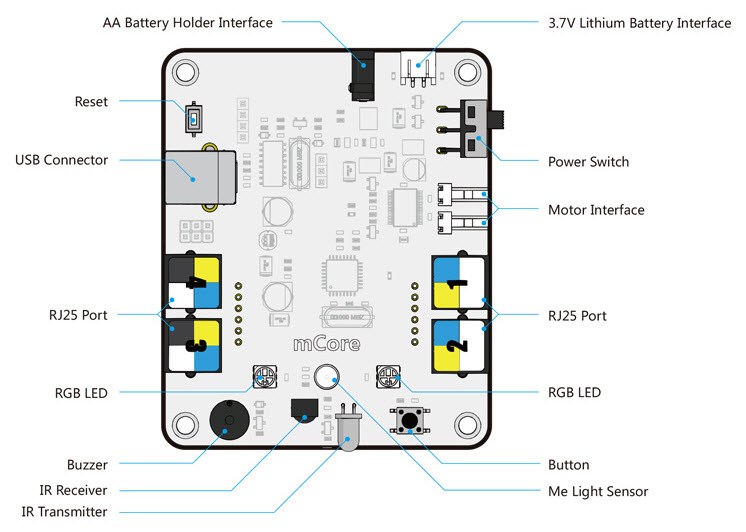

mCore is an easy-to-use main control board specially designed for mBot. Based on Arduino Uno, mCore integrates various onboard sensors, such as buzzer, light sensor, RGB LED, etc., which provides you an easier way to start learning electronics.

Features

• Comes with Arduino and Makeblock Library for easy programming.
• Include various featured sensors, such as buzzer, light sensor, RGB LED, etc.

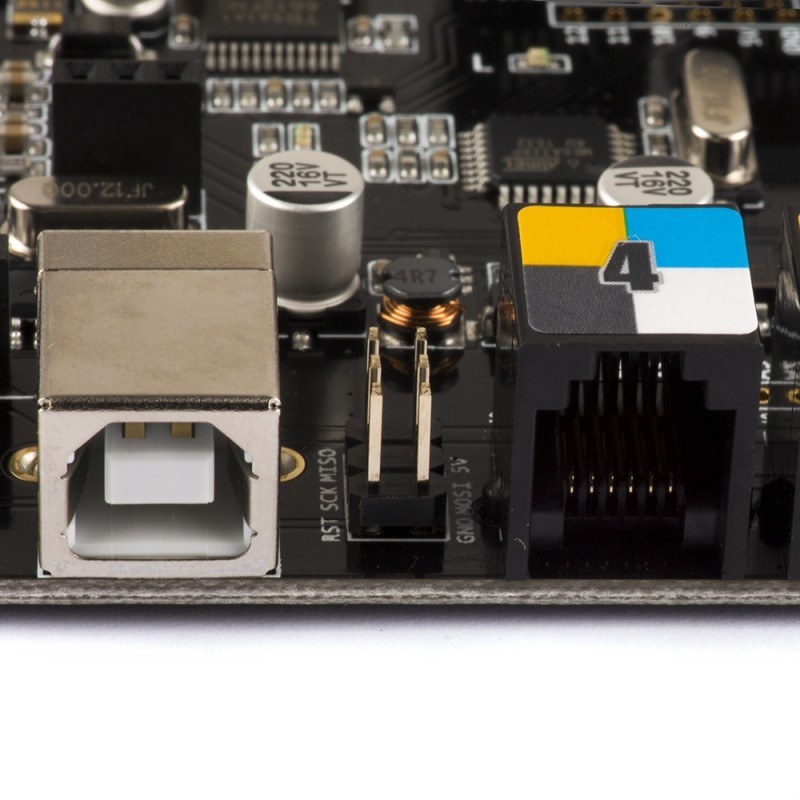

• On-board USB type B connector design for long-time use.
• Resettable fuse prevents the board from getting burn.
• Four color-labelled RJ25 connectors for easy wiring and expansion with more Arduino sensors.

Technical Specifications:

• Operating Voltage 3.7-6V DC power
• Microcontroller ATmega238
• Product Dimension 90 x 79 x 18mm (3.54 x 3.11 x 0.71inch)
• Net Weight 43g (1.52oz)
