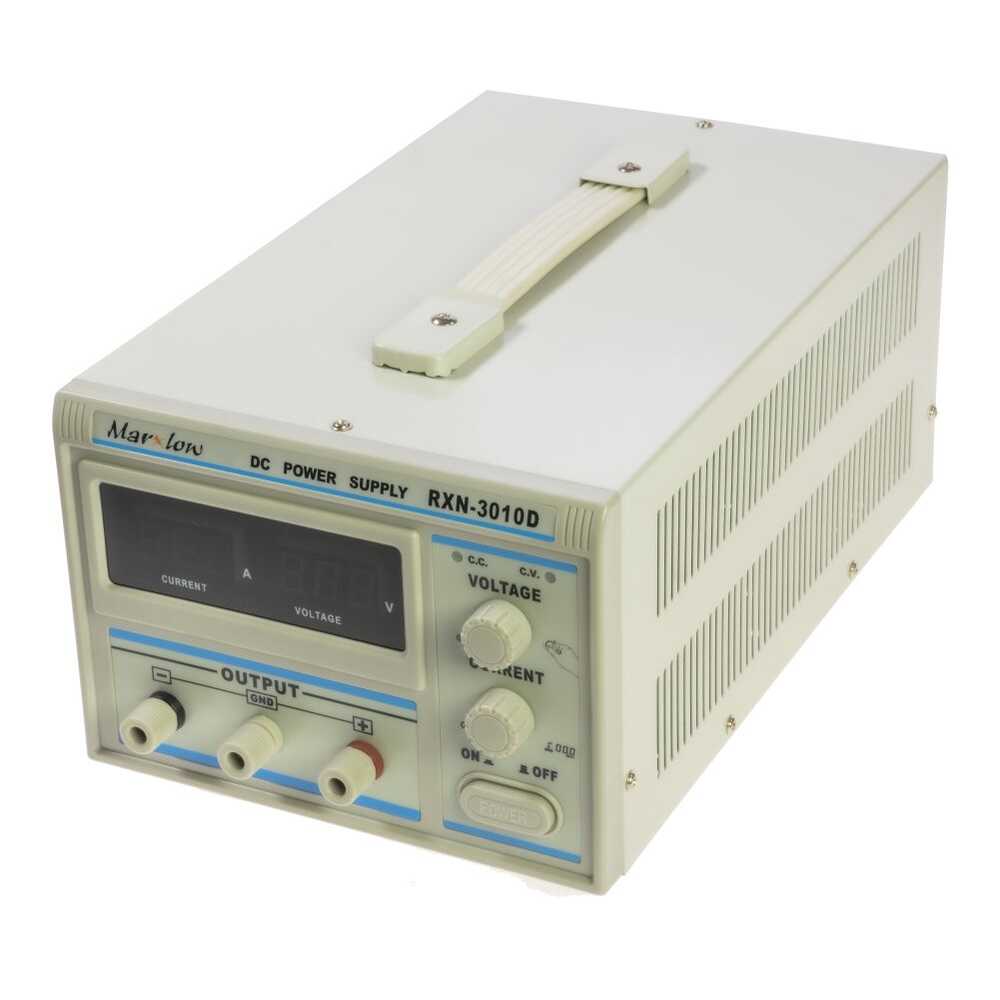

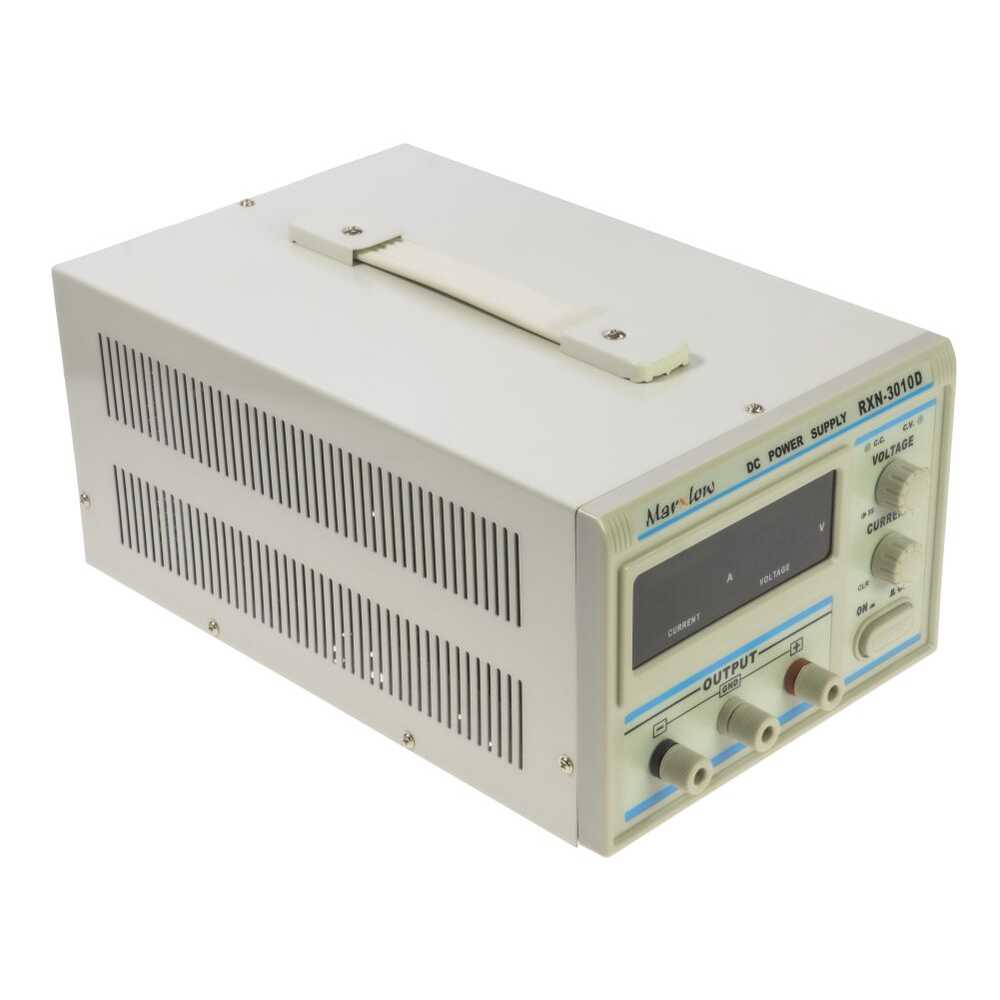

Marxlow RXN-3010D 0-30 Volt 0-10 Ampere Transformer Regulated Power Supply

Marxlow RXN-3010D 0-30 Volt 0-10 Amp Transformer-Regulated Power Supply

Marxlow RXN-3010D 0-30 Volt 0-10 Amp Transformer-Regulated Power Supply Features:

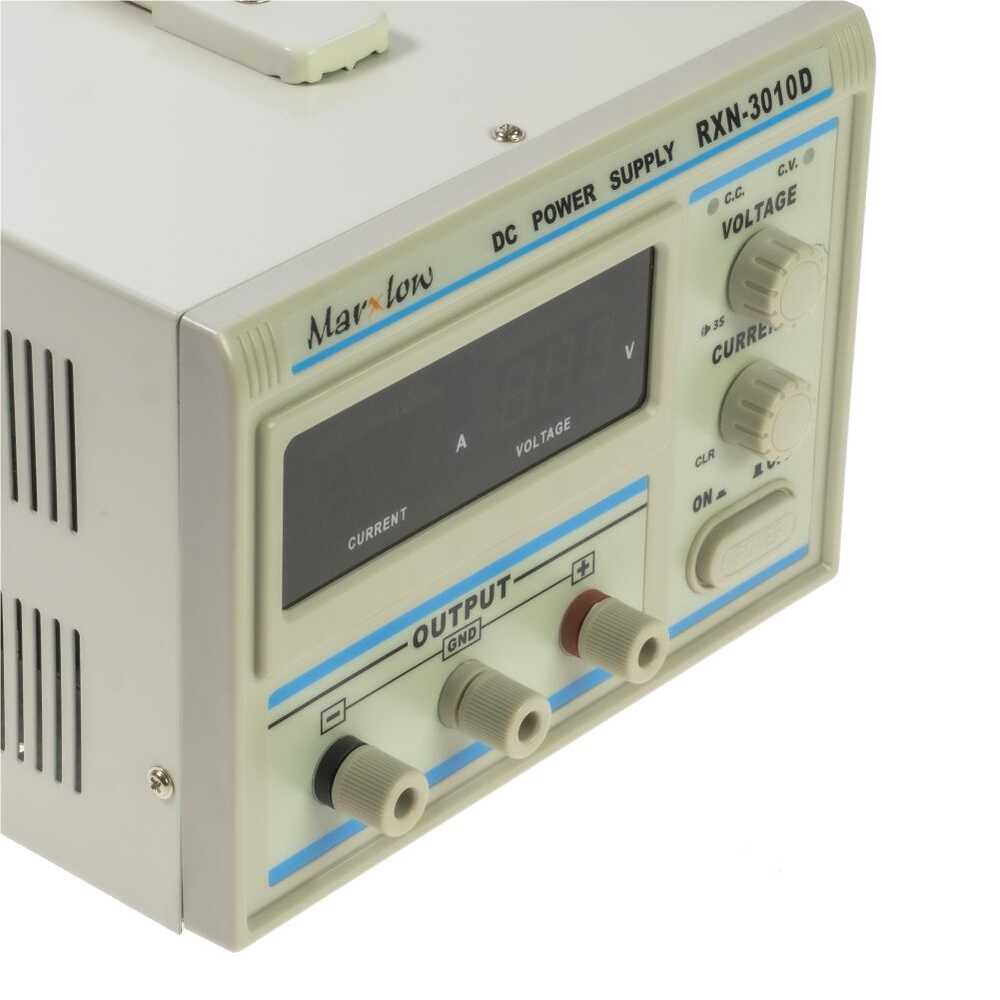

Front/rear output terminal

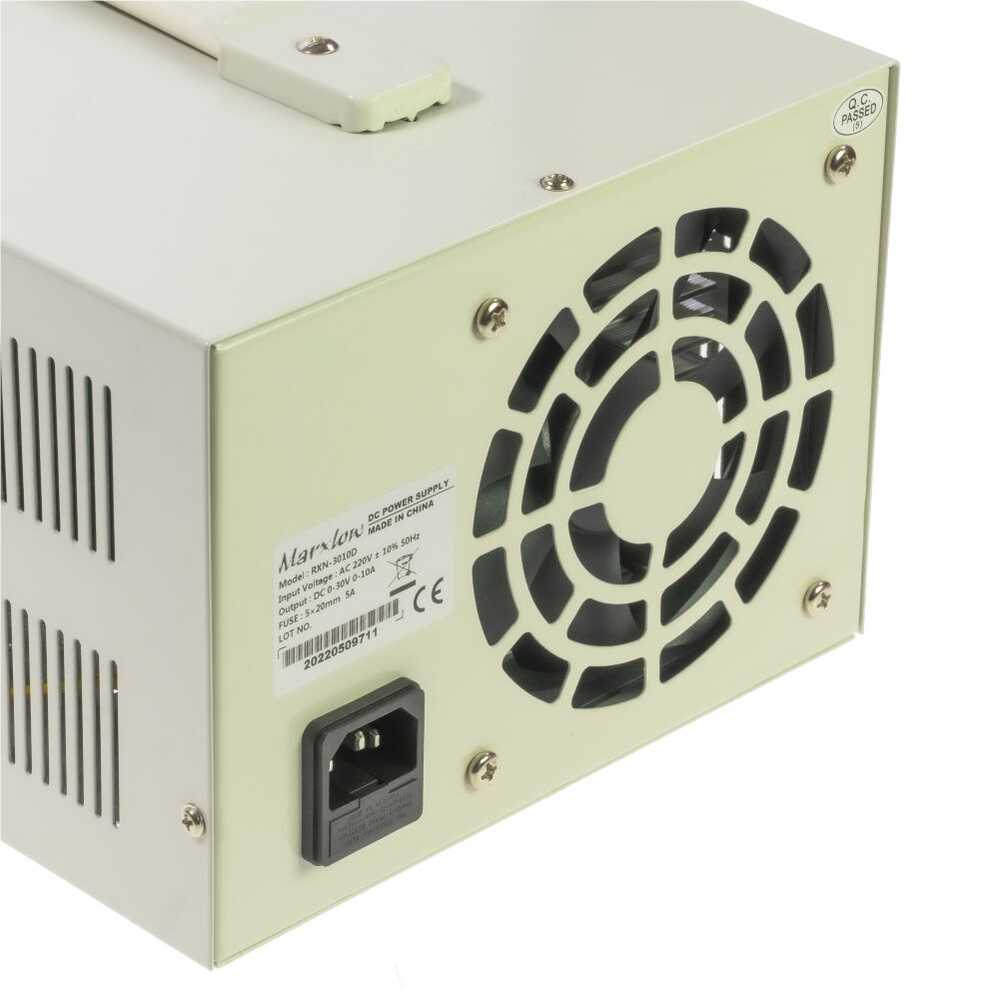

Internal radiator and electronic temperature control cooling fan
Digital or pointer meter displays voltage and current values
Coarse and fine adjustable potentiometer allows you to set Voltage / Current output continuously with high resolution
Simplified function and low-cost high universal type power supply
Equipment Plastic panel, modern, simple and beautiful


Marxlow RXN-3010D 0-30 Volt 0-10 Amp Transformer Adjustable Power Supply Technical Specifications:

• Input voltage: 220V AC ± 10% 50Hz (can also be 110V AC ± 10% 50Hz if required)
• Output voltage: 0 - 30V
• Output current: 0 - 10A
• Operating temperature: -10°C - 40°C
• Storage temperature: -10°C to 40°C
• Voltage stability: ≤ 0.01% + 2mV
• Load stability: ≤ 0.01% + 2mV
• Duty cycle: ≤ 100μs
• Ripple noise: ≤ 1mVRMS (RMS)
• Temperature coefficient of units: ≤ 200ppm/°C
• Current stability: ≤ 0.1% + 3mV
• Load stability: ≤ 0.2% + 3mV
• Voltage display accuracy: Three light-emitting diodes: ± 1% ± 1 unit
• Pointer table: ± 2.5%
