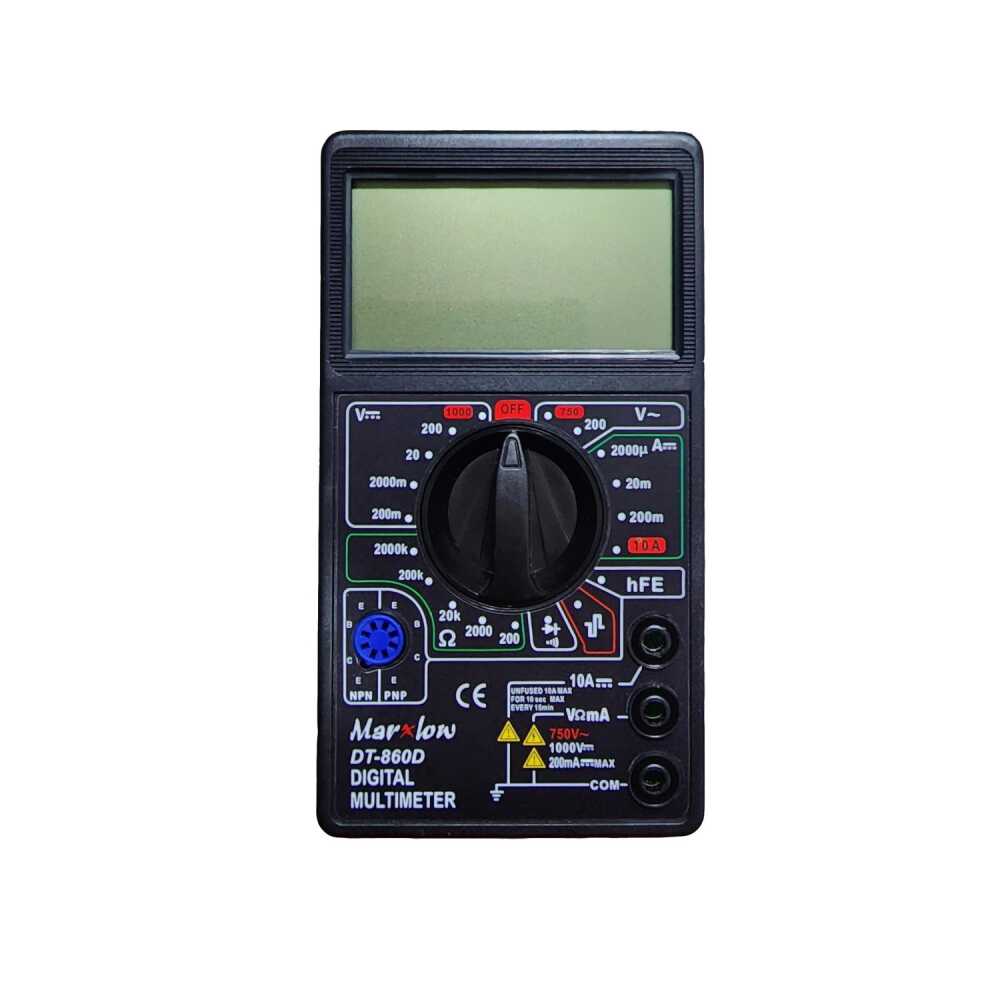

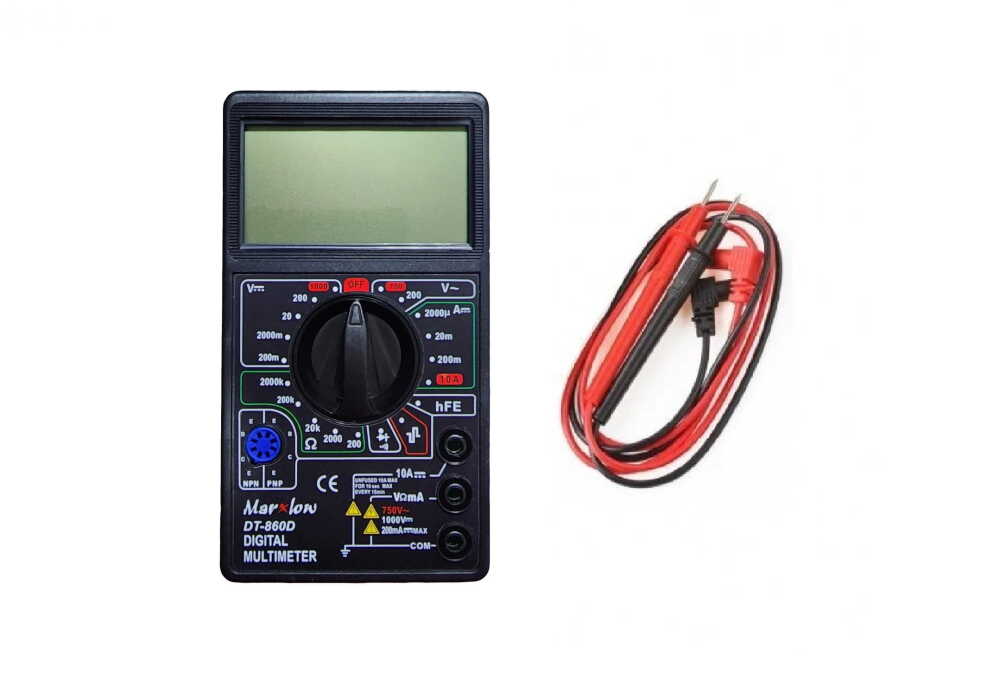

Marxlow DT860D Large Display Digital Multimeter

Marxlow DT860D Large Display Digital Multimeter

Marxlow DT860D is a practical digital multimeter designed for workshops, electronics repair, and hobby projects, featuring a large, easy-to-read display. It combines AC/DC voltage and current measurements, resistance measurement, as well as diode and continuity tests in a single device. With its backlit screen, data hold function, and auto power-off, it offers comfortable use both in the field and on the bench. A battery is included in the package.

Marxlow DT860D Large Display Digital Multimeter Technical Specifications:

• Display: Large backlit LCD; 3½-digit (~1999 counts)

• DC Voltage (VDC) ranges: 200 mV / 2 V / 20 V / 200 V / 1000 V

• AC Voltage (VAC) ranges: 2 V / 20 V / 200 V / 750 V

• DC Current (ADC) ranges: 200 µA / 2 mA / 20 mA / 200 mA / 10 A

• Resistance (Ω) ranges: 200 Ω / 2 kΩ / 20 kΩ / 200 kΩ / 2 MΩ / 20 MΩ / 200 MΩ

• Capacitance (F) ranges: 2 nF – 200 µF (typical)

• Continuity test: Fast check with audible buzzer

• Diode test: Displays P–N junction forward voltage

• Functions: Data Hold, backlight, low-battery indicator, auto power-off

• Safety: Fused 10 A input; suitable for CAT II 600 V applications

• Power: 9 V Battery (6F22) – battery included

• Dimensions: 69 × 125 × 25 mm

• Sampling rate: ~3 readings/s (typical)

• Usage note: The 10 A range is for short-duration tests; do not use under prolonged load.
