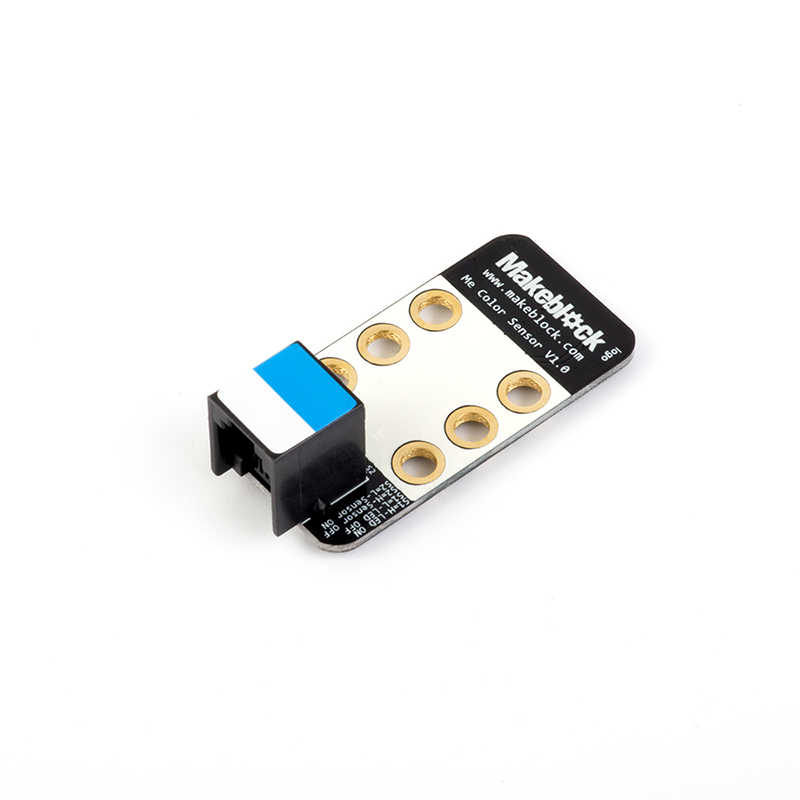

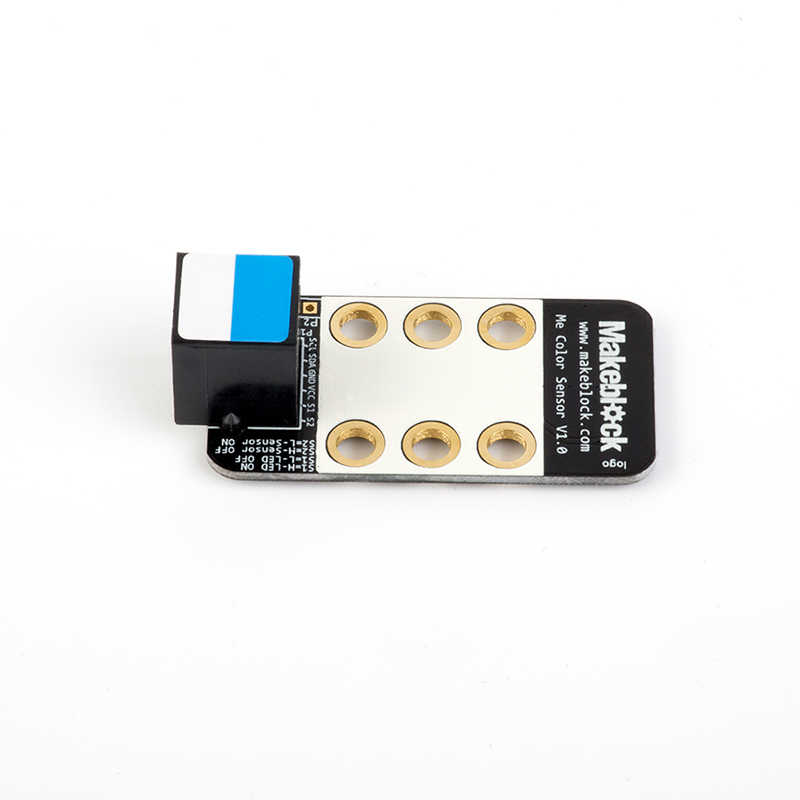

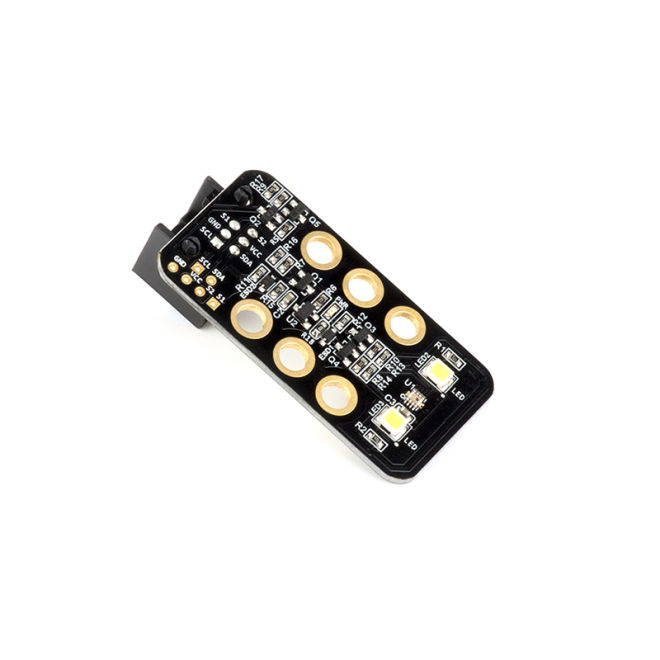

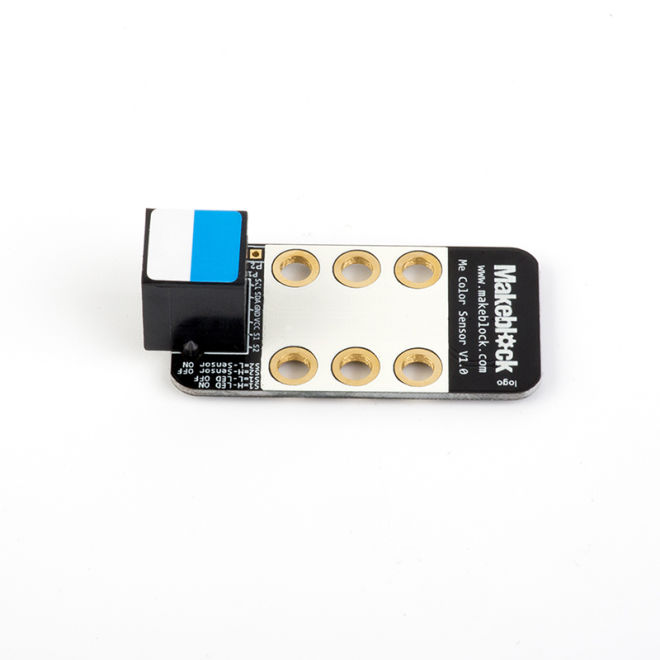

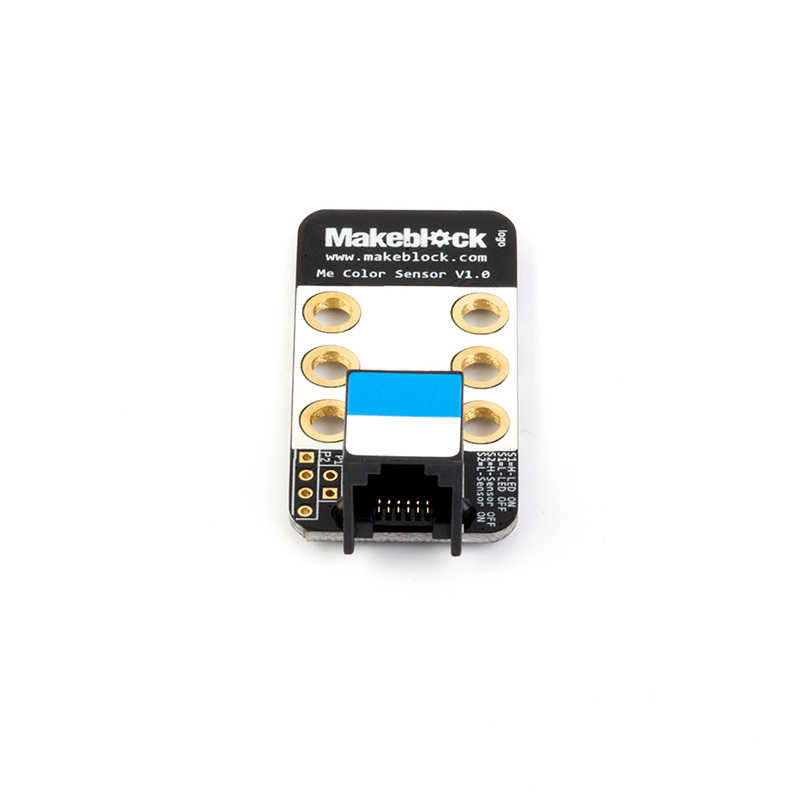

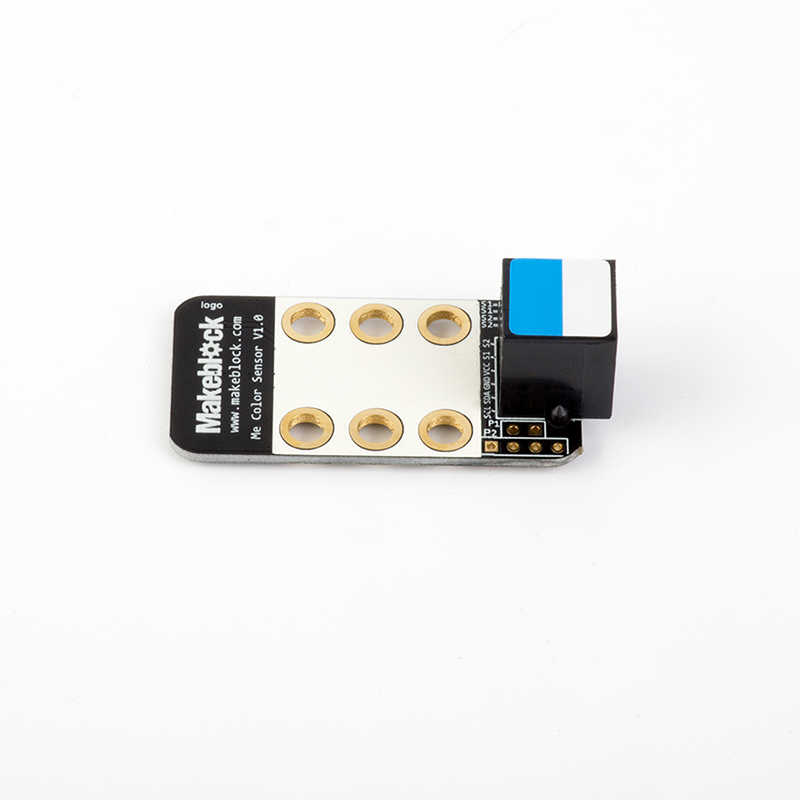

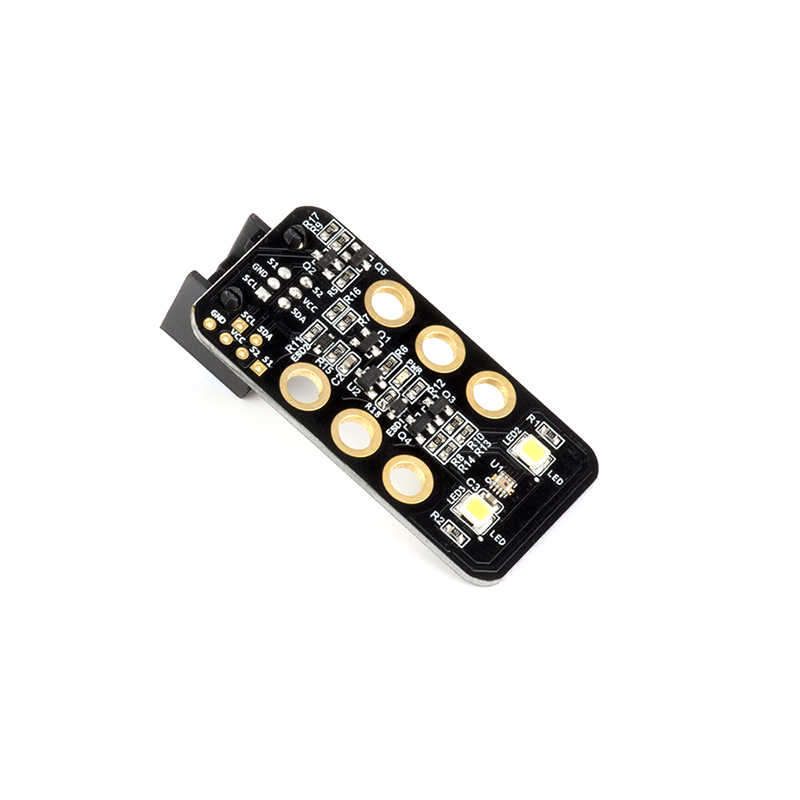

Makeblock Me Color Sensor V1

The Me Color Sensor is a color sensor capable of recognizing a total of six colors, including black, white, red, blue, yellow, and green. This module's interface port is a standard blue-and-white, and uses I2C protocol for communication. It must be directly connected to a motherboard with a blue-and-white interface port.

Features:

• The white region is a reference point for the attachment of the metal beam.

• Contains reverse current protection; reverse current will not damage the IC.

• Supports Arduino IDE programming and provides a runtime library to simplify programming.

• Supports mBlock graphics programming; suitable for users of all ages.

• Uses RJ25 cables for convenient connections;
  offers modular installation, compatible with the Lego series.



Specification:

• Operating voltage: 5V

• Operating current: <5mA

• Operating temperature: -20~60˚C

• Signal type: I2C

• Module dimensions: 48mm x 24 mm x 18 mm (LxWxH)
