LPG / Isobutane / Propane Gas Sensor MQ-6

Product Code
:
13086
Brand / Origin
:
China
Quantity
:
0
Without Vat
:
9.05 TL
Out of stock Alert when in stock
Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Share:
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

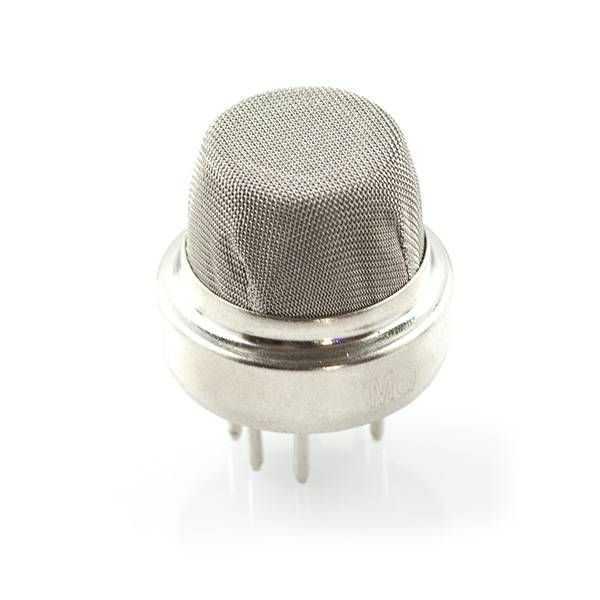

  • MQ-6 LPG sensor detects the presence of LPG, isobutane, and propane at concentrations from 300 to 10,000 ppm. The sensor’s simple analog voltage interface requires only one analog input pin from your microcontroller.

    Connecting 5V across the heating (H) pins keeps the sensor hot enough to function correctly. Connecting 5V at either the A or B pins causes the sensor to emit an analog voltage on the other pins. A resistive load between the output pins and ground sets the sensitivity of the detector. The resistive load should be calibrated for your particular application using the equations in the datasheet, but a good starting value for the resistor is 20 kΩ.

    Features:
    • Operating Temperature: -10°-50°C
    • Operating Voltage: 5V
    • Current Draw: 150 mA
