LIDAR-Lite v3 Sensor

Product Code
:
17135
Brand / Origin
:
Sparkfun
Quantity
:
0
Without Vat
:
1,004.22 TL
Out of stock Alert when in stock
Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

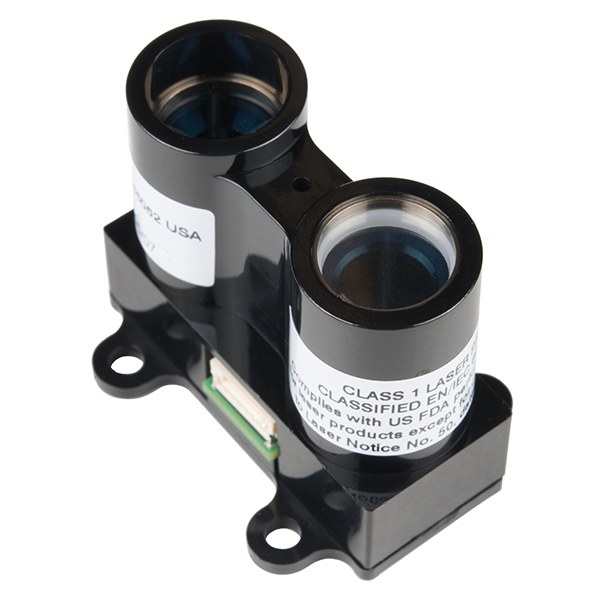

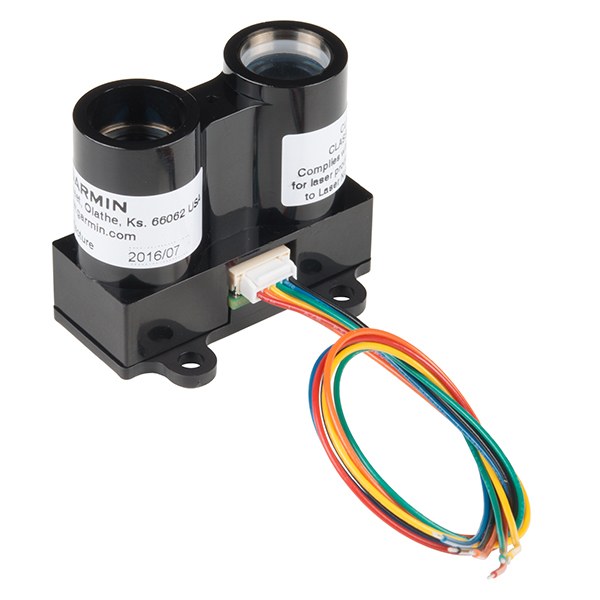

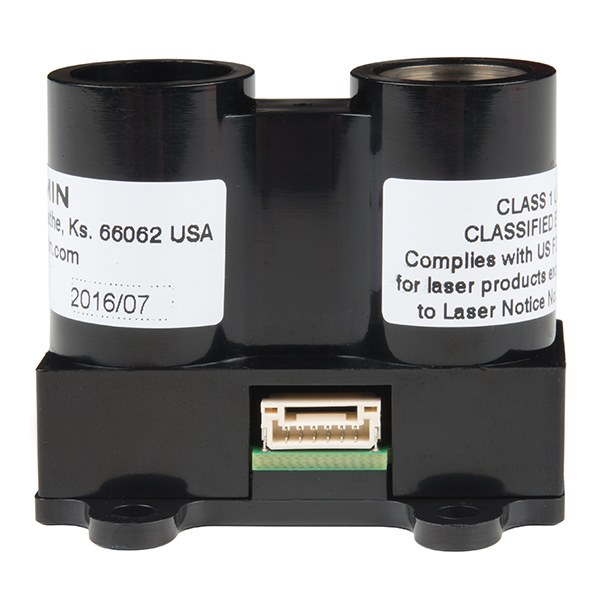

  • This is the LIDAR-Lite v3, a compact, high-performance optical distance measurement sensor from Garmin™. When space and weight requirements are tight, the LIDAR-Lite v3 soars. The LIDAR-Lite v3 is the ideal solution for drone, robot or unmanned vehicle applications.

    This easy-to-use 40-meter laser-based optical ranging sensor has all the core features: Small in form and light in weight with low power consumption of less than 130mA during an acquisition. And it’s user-configurable so you can adjust between accuracy, operating range and measurement time.

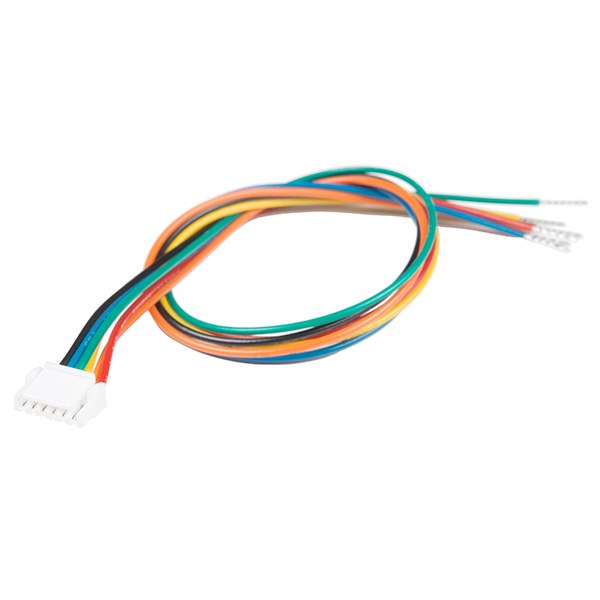

    Each LIDAR-Lite v3 features an edge-emitting, 905nm (1.3 watts), single-stripe laser transmitter, 4 m Radian x 2 m Radian beam divergence, and an optical aperture of 12.5mm. The third version of the LIDAR-Lite still operates at 5V DC with a current consumption rate of <100mA at continuous operation. On top of everything else, the LIDAR-Lite is user-configurable, allowing adjustment between accuracy, operating range and measurement time. It can be interfaced via I2C or PWM with the included 200mm accessory cable.



    Description: It’s back! This is the LIDAR-Lite v3, a compact, high-performance optical distance measurement sensor from Garmin™. When space and weight requirements are tight, the LIDAR-Lite v3 soars. The LIDAR-Lite v3 is the ideal solution for drone, robot or unmanned vehicle applications.

    This easy-to-use 40-meter laser-based optical ranging sensor has all the core features that made the LIDAR-Lite v2 so popular. Small in form and light in weight with low power consumption of less than 130mA during an acquisition. And it’s user-configurable so you can adjust between accuracy, operating range and measurement time.

    Each LIDAR-Lite v3 features an edge-emitting, 905nm (1.3 watts), single-stripe laser transmitter, 4 m Radian x 2 m Radian beam divergence, and an optical aperture of 12.5mm. The third version of the LIDAR-Lite still operates at 5V DC with a current consumption rate of <100mA at continuous operation. On top of everything else, the LIDAR-Lite is user-configurable, allowing adjustment between accuracy, operating range and measurement time. It can be interfaced via I2C or PWM with the included 200mm accessory cable.

    Note: CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2014. This product is in conformity with performance standards for laser products under 21 CFR 1040, except with respect to those characteristics authorized by Variance Number FDA-2016-V-2943 effective September 27, 2016.

    Dimensions: 20 x 48 x 40 mm (0.8 x 1.9 x 1.6 inches)

    Features:

    • Range: 0-40m Laser Emitter
    • Accuracy: +/- 2.5cm at distances greater than 1m
    • Power: 4.75–5V DC; 6V Max
    • Current Consumption: 105mA idle; 130mA continuous
    • Rep Rate: 1–500Hz
    • Laser Wave Length/Peak Power: 905nm/1.3 watts
    • Beam Divergence: 4m Radian x 2m Radian
    • Optical Aperture: 12.5mm
    • Interface: I2C or PWM

    Document:
