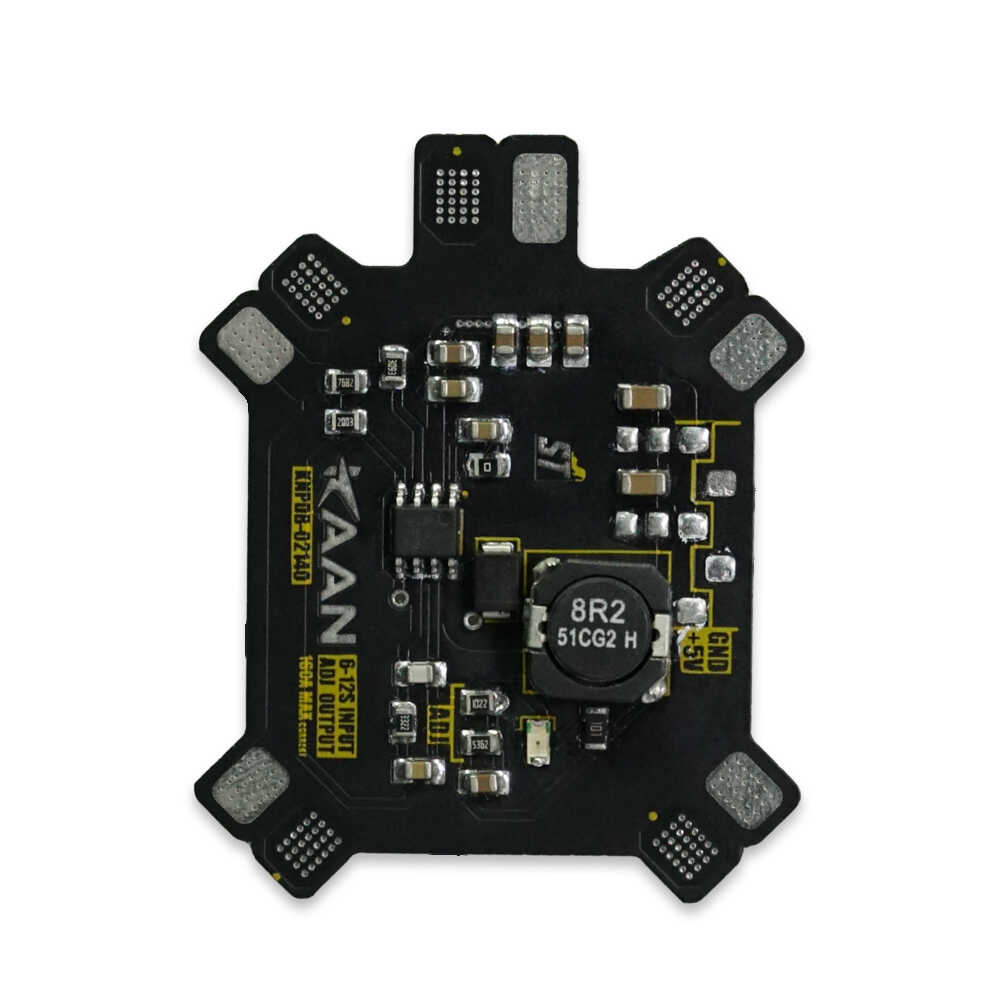

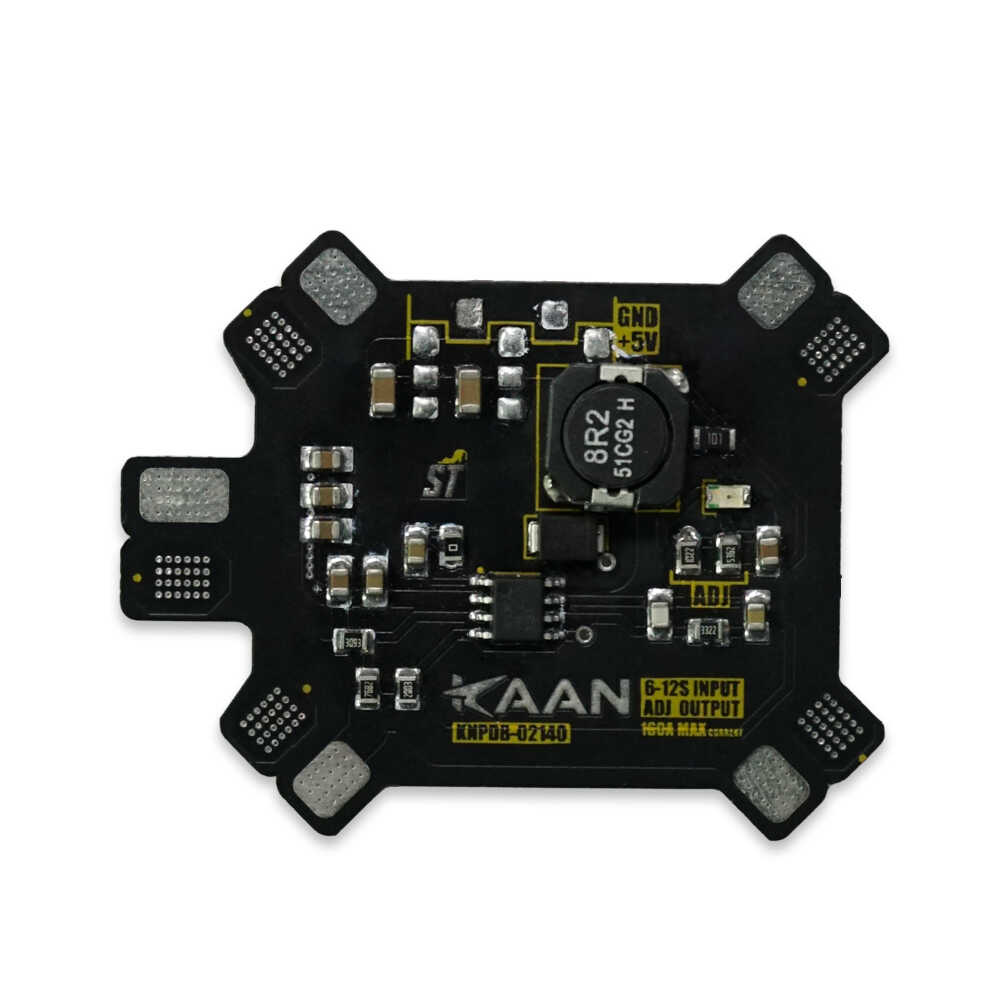

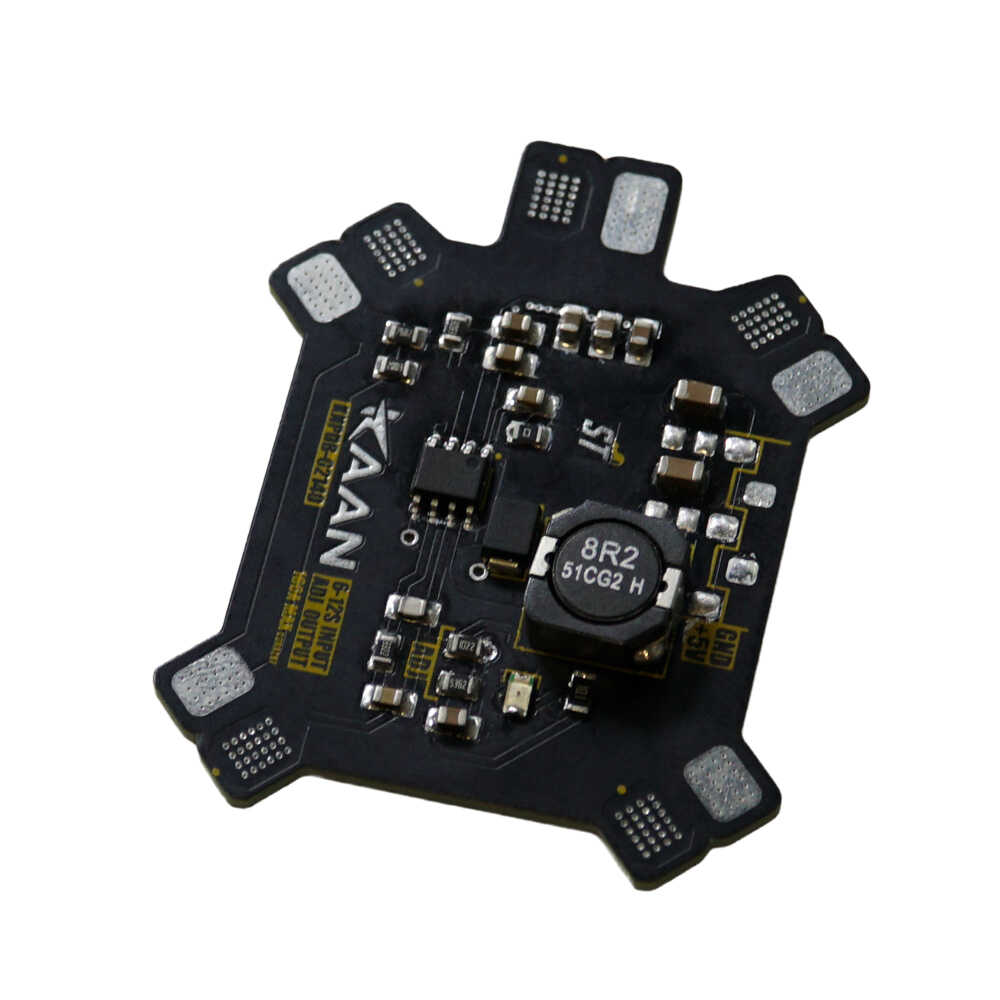

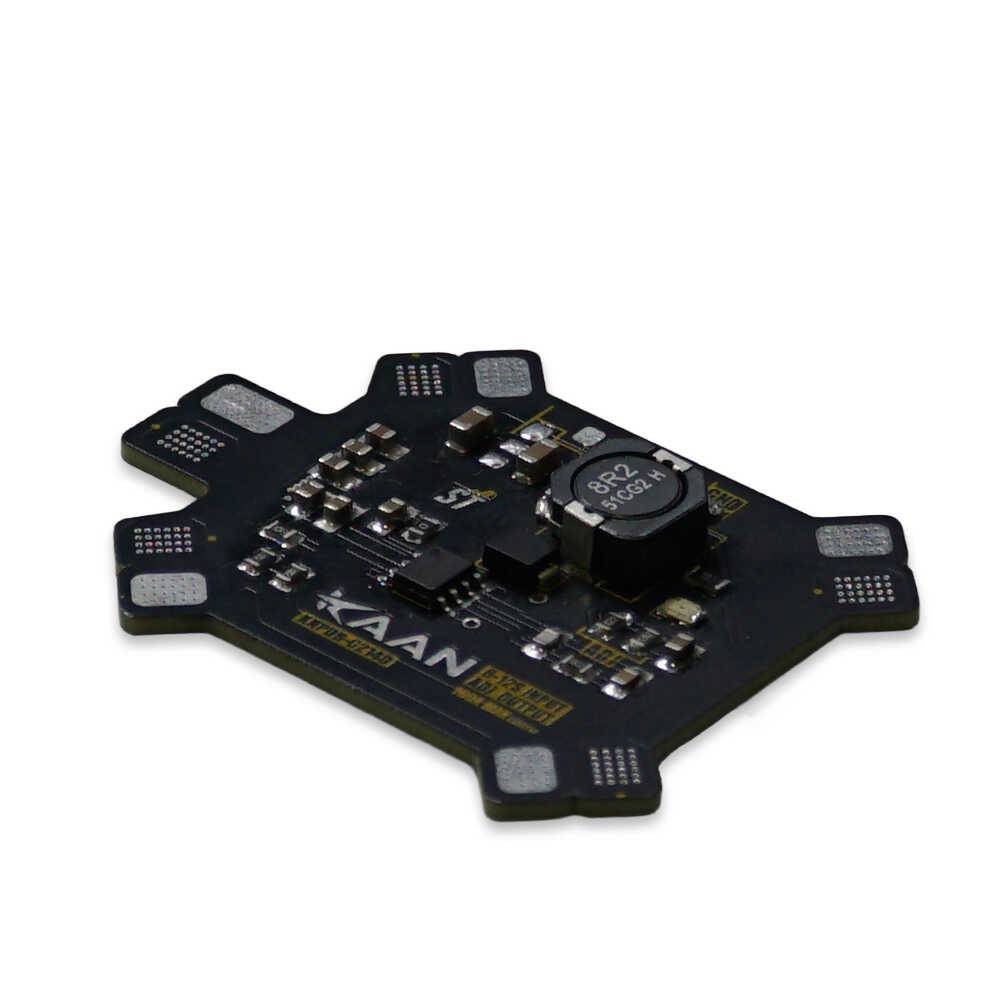

Kaan Teknoloji Power Distribution Board - KN-02140

Kaan Teknoloji Power Distribution Board - KN-02140

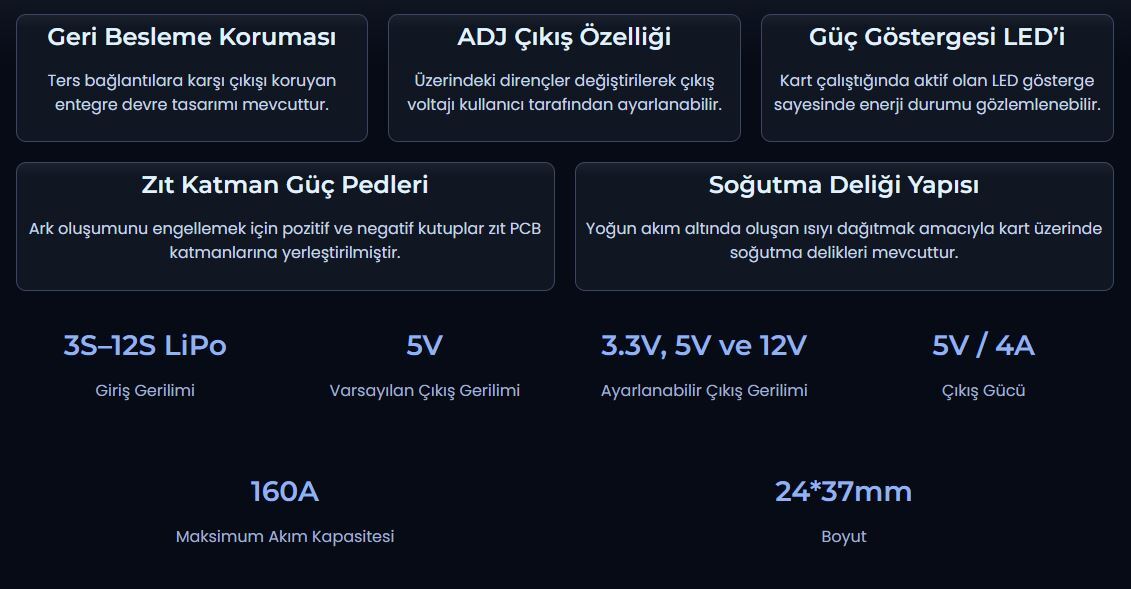

KAAN Power Distribution Board (KNPDB-02140) offers a high performance and reliable power management solution for unmanned aerial vehicles (UAV, multicopter), underwater systems, unmanned marine vehicles and robotic projects. 3S-12S LiPo (11.1V - 44.4V) battery compatibility provides a wide range of applications. The factory set output voltage of 5V can be easily changed to 3.3V, 5V or 12V via ADJ pins. With 160A continuous current capacity and 5V / 4A output power, it offers an ideal infrastructure for powerful systems. Safety and durability are prioritised with feedback protection, advanced pad structure, cooling holes and contrasting layer power pads. Energy status can be monitored instantly with the power indicator LED. With its compact size (24x37mm) and user-friendly design, KAAN Power Distribution Board will be your reliable solution partner in your professional projects.

Kaan Teknoloji Power Distribution Board - KN-02140 Technical Specifications:

• Input voltage: 6V - 24V DC (via external adapter or battery)

• On-board 3.3V and 5V regulators for stable supply to microcontroller boards and sensors

• Fuse protection on each output line (safety against overcurrent)

• 6 x 5V output ports

• 4 x 3.3V output ports

• 2 x direct input voltage output ports (VIN)

• Total output current: 3A for 5V line, 1A for 3.3V line

• Connectors compatible with standard jumper and Dupont cables

• Board size: 70mm x 50mm

• On-board indicator LEDs for power status monitoring
