Kaan Technology Power Distribution Board - KN480

KAAN Technology's PDB-KN480

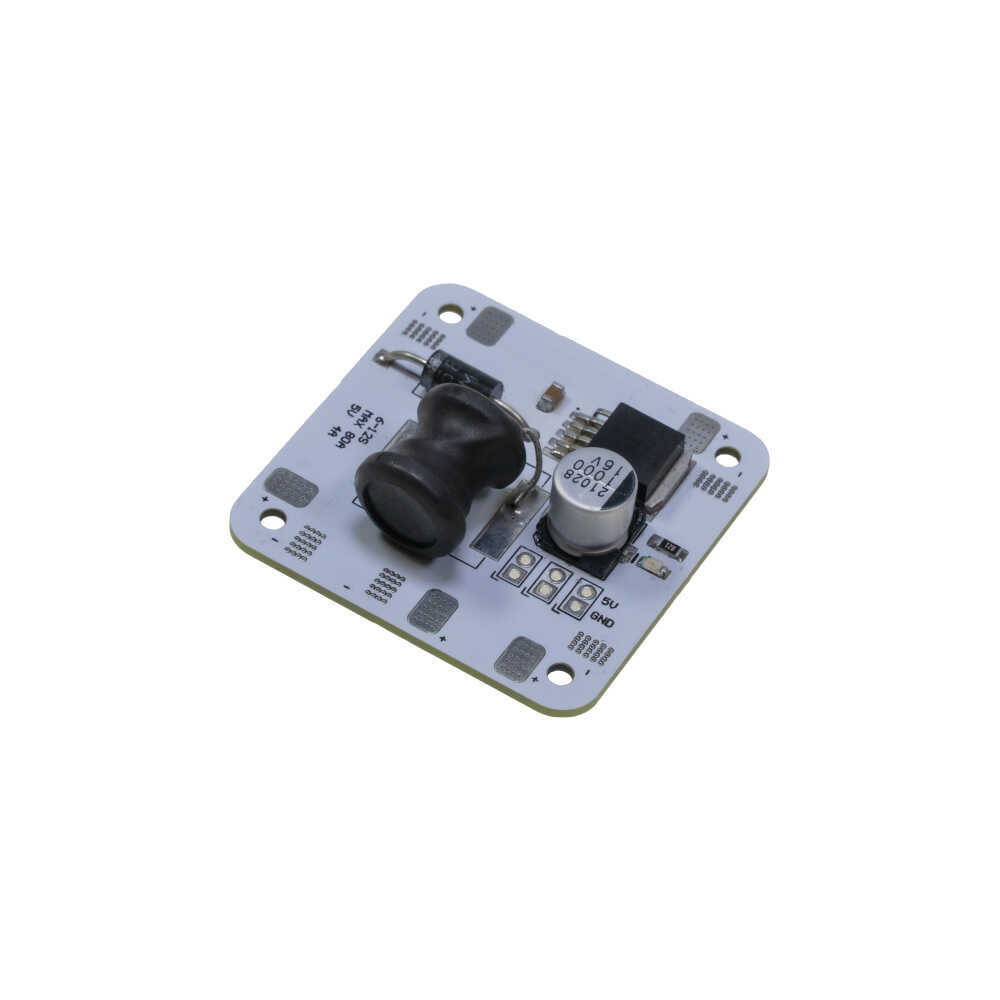

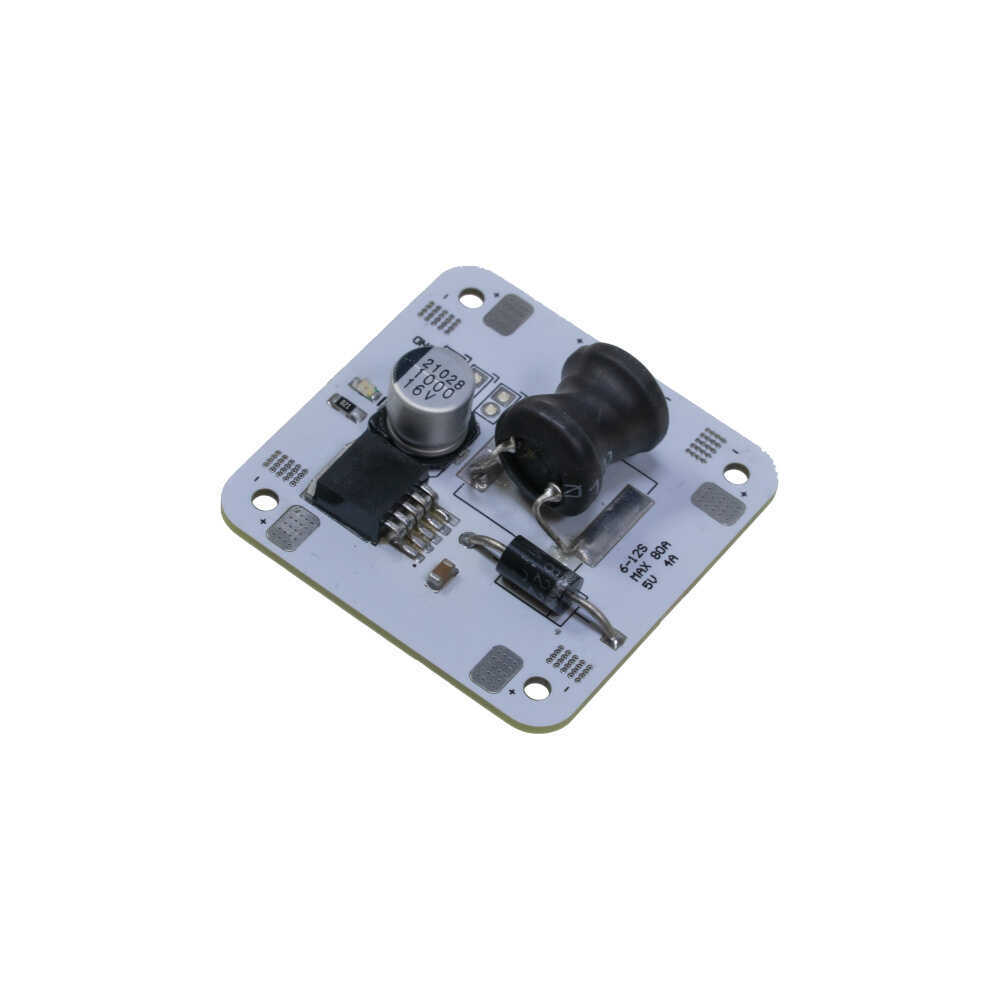

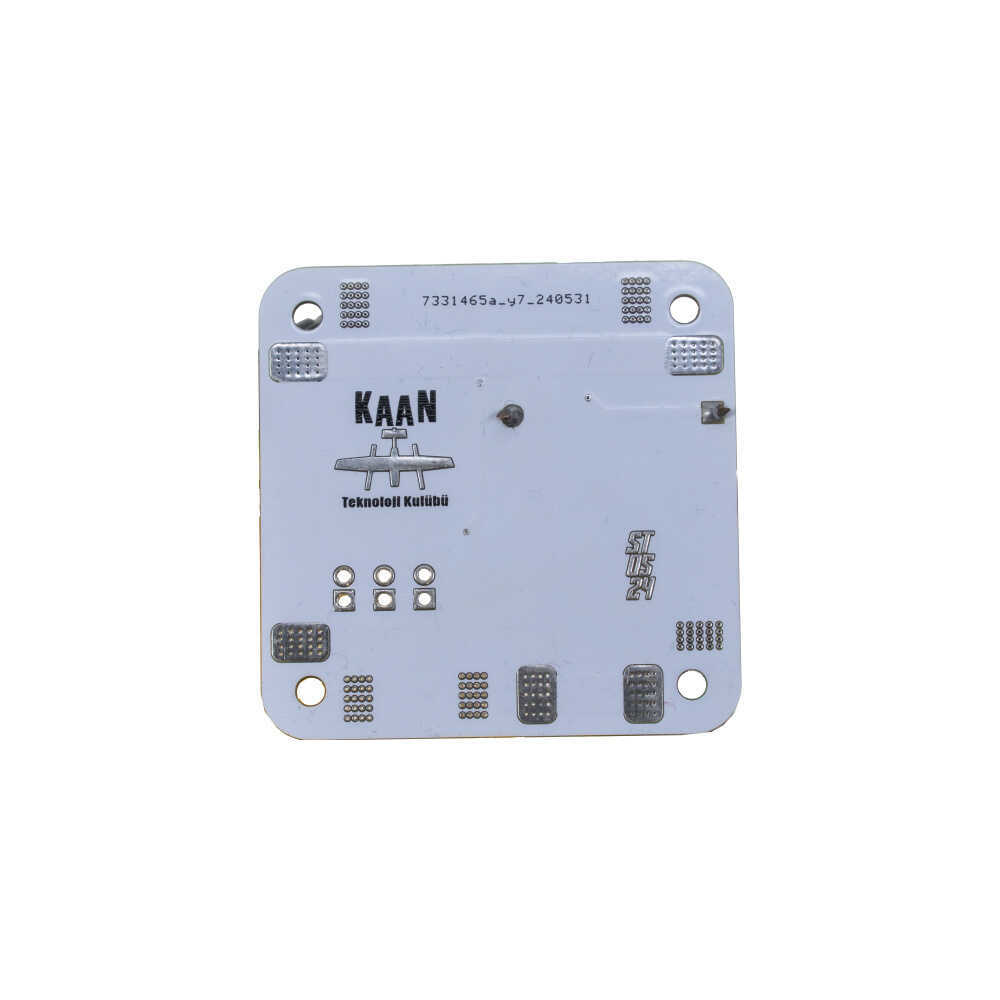

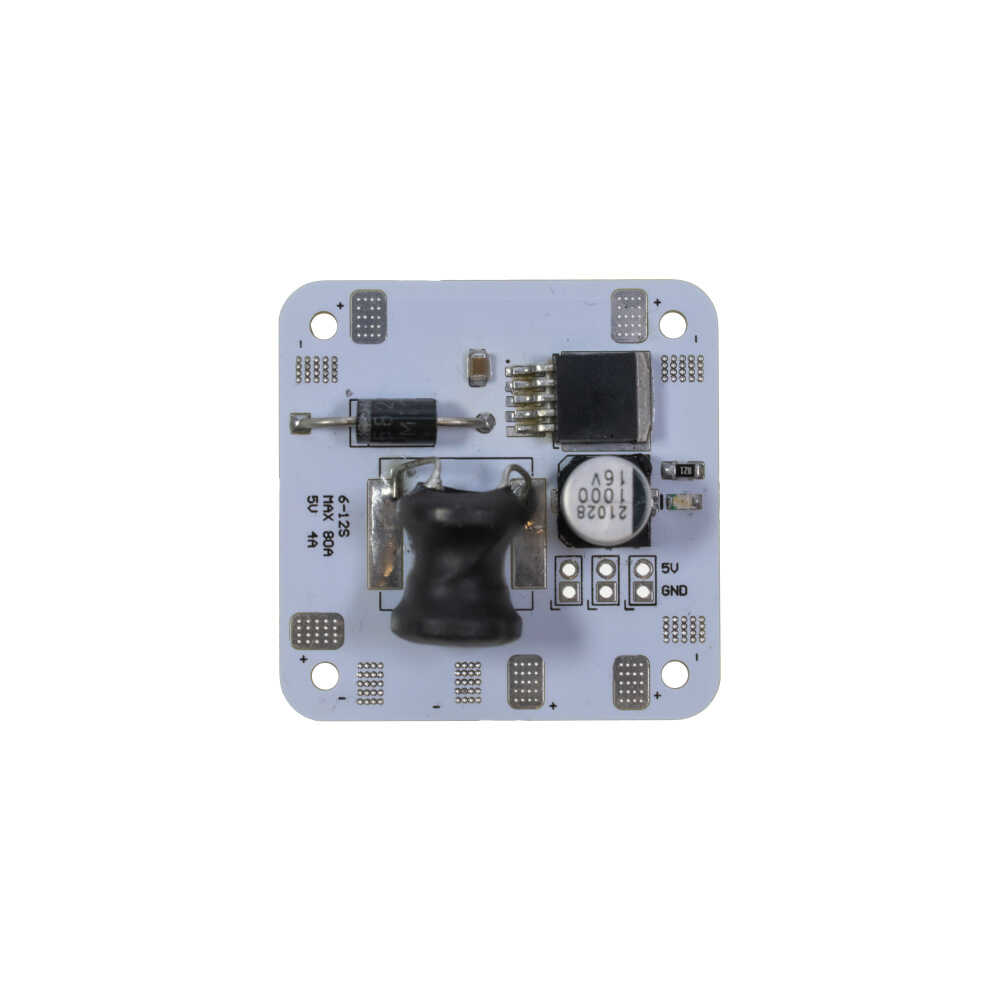

KAAN Technology's PDB-KN480 has been developed to offer superior performance and reliability with its 50.4*50.4mm dimensions and 2-layer PCB design. This board efficiently distributes power from the LiPo battery pack to 4 ESCs simultaneously. It is compatible with devices such as cameras, servos and ESCs and provides stable DC 5V output.

KAAN Technology's PDB-KN480 Features:

2oz copper, 2-layers &1.6mm PCB.
Built-in XT60 Socket
Total 5 pairs ESC solder tabs are fit for H or X type frame
5V & 12V Output LED indicators & Short circuit tolerant

KAAN Technology's PDB-KN480 Technical Spesification:

General
Input voltage range (6-12S LiPo operation): 9 - 18V DC
Regulated 5V outputs
LED power indicators ( 5V outputs )
4 ESC outputs & 1 pair VCC/GND pads

ESC outputs
Continuous current: 75A*4 or 65A*6 for each
Peak current (10 seconds/minute): 950A*4 or 85A*6

BEC 5V output
Designed for RC Receivers, Flight controllers, OSD,
and Servos.
DC/DC synchronous buck regulator.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amps (Max.2.5A 10s/minute)
Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant (5 seconds/minute)

BEC 5V @ ≈2S LiPo
Output voltage= 2S LiPo voltage -3V

Physical:
Dimensions: 50.4 x 50.4 x 4 mm (without XT60)
Mounting: 30.5 x 30.5mm, Φ3mm
Weight: 8g(w/o XT60), 12g(w/ XT60)
