Jetson Nano Developer Kit - Lite

Jetson Nano Developer Kit - Lite

JETSON-NANO-DEV-KIT is designed by Waveshare, based on the Jetson Nano Module, provides almost the same IOs, size, and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of the core module, it is qualified for fields like image classification, object detection, segmentation, speech processing, etc., and can be used in sorts of AI projects.

• Compared with the official B01 kit, JETSON-NANO-DEV-KIT cancels the TF card slot on the Nano core board and adds a 16GB eMMC memory chip, which is stable in reading and writing.
• The header switch of the DC power supply has been canceled, which means that we can directly insert the DC power supply into the circular interface and do not need to use a jumper cap to short the J48 interface first.
• Waceshare JETSON-NANO-DEV-KIT not only supports USB flash drive booting but also supports TF card booting as it has integrated a TF card slot on the expansion board. The reading and writing are stable, and it is almost the same as the B01 official core board with a TF card slot.

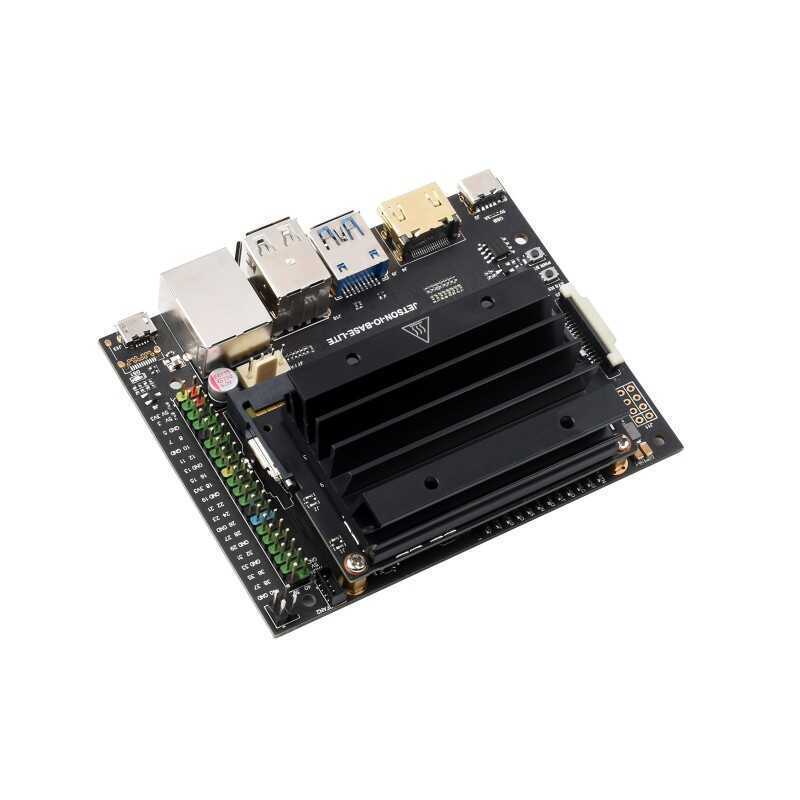

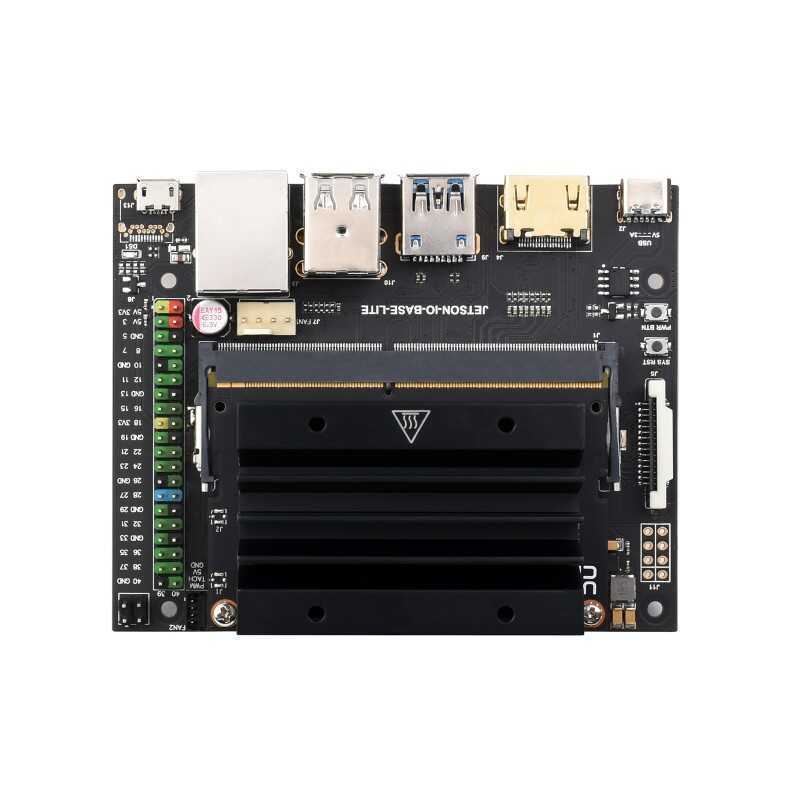

Compared with the conventional kit, JETSON-NANO-LITE-DEV-KIT simplifies the interface of the carrier board, the USB3.0 port is reduced from the original 4 to 1, and 2 USB2.0 ports are used instead, and the CSI port is reduced from the original 4 to 1. In addition, the carrier board of the Lite version also adds power and reset buttons. The carrier board of the Lite version is compatible with the original official Jetson Nano 2GB Developer Kit in terms of appearance and interface. It is suitable for users who do not require more interface resources. The core board of the Lite version also uses the Jetson Nano Module 4GB version.

• JETSON-NANO-LITE-DEV-KIT also has a TF card slot, which is convenient for users to do TF card expansion.
• Compared with JETSON-NANO-DEV-KIT, the Lite version kit has two more onboard buttons, which are used to control the mainboard power supply and system reset respectively.
• The carrier board of JETSON-NANO-LITE-DEV-KIT is basically compatible with the official Jetson Nano 2GB Developer Kit, which is suitable for users who do not require many interfaces of the carrier boards but want the performance of 4GB Nano modules.

Jetson Nano Developer Kit - Lite Technical Specifications:

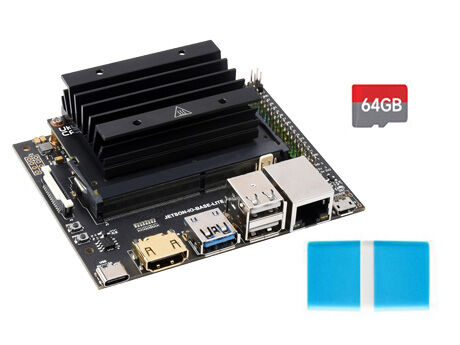

Jetson Nano Developer Kit - Lite Package Contents:

Jetson Nano Geliştirme Kiti (Board + Nano + Cooler)	64GB TF Board	Board Reader

Useful Documents:

• Datasheet
