JETSON-NANO-DEV-KIT-D-EU IC Test Board

JETSON-NANO-DEV-KIT-D-EU ICTest Board

Jetson Nano Dev Kit is a small and powerful computer that helps you run multiple neural networks in parallel for applications such as image classification, object detection, segmentation and speech processing. It has the ability to simultaneously process several high-resolution sensors by running multiple neural networks in parallel. It is also incredibly energy efficient with a consumption of 5 watts.

Jetson Nano Dev Kit Technical Specifications:

• Size: 69.6mm x 45mm
• Power: 5V/2A
• GPU: 128 Core Maxwell™ GPU
• CPU: Quad Core ARM® Cortex®-A57 CPU
• Memory: 4GB 64-bit LPDDR4
• Storage: Micro SD card slot (external minimum 16G TF card required)
• Video: Encoding: 4K @ 30 (H.264 / H.265)
• Decoding: 4K @ 60 (H.264 / H.265)
• Interfaces: Ethernet: 10/100 / 1000BASE-T
• Camera: 12-channel (3x4 / 4x2) MIPI CSI-2 DPHY 1.1 (1.5 Gbps)
• Display: HDMI 2.0,
• USB: 4x USB 3.0, USB 2.0 (Micro USB)

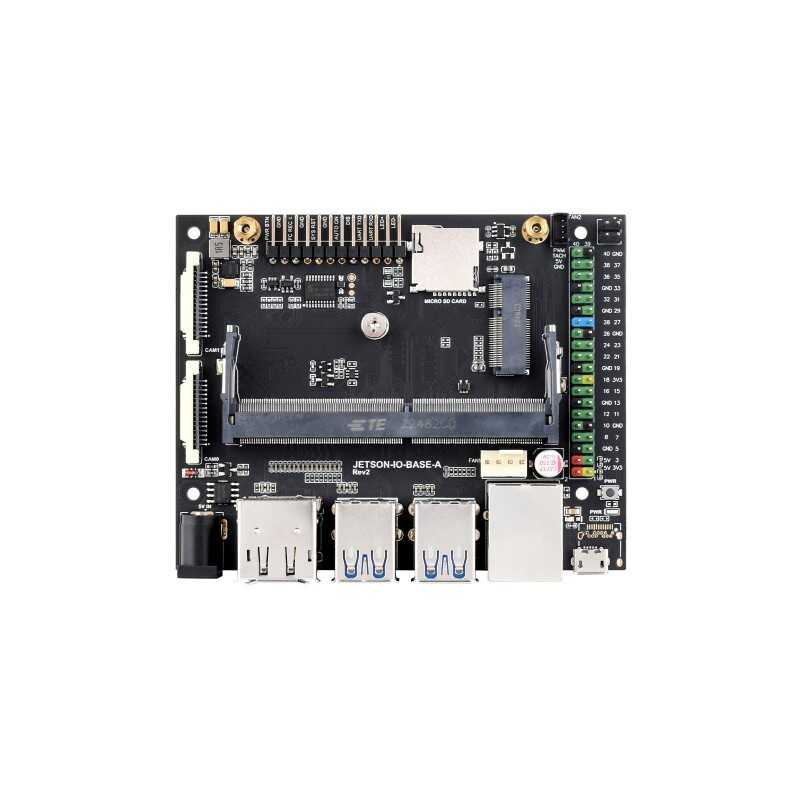

1. Core module socket
2. TF card slot
3. M.2 Key E connector
4. 1.25mm Fan header
5. PoE pins: PoE module is not included

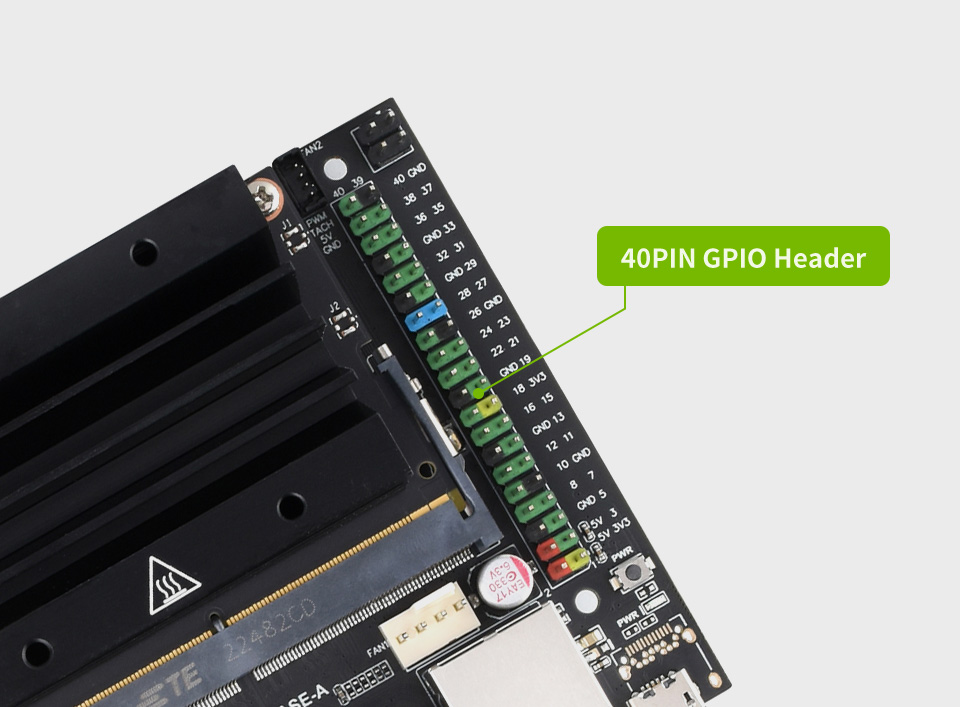

6. 40PIN GPIO header
7. 2.54mm Fan header
8. Micro USB port: for 5V power input or for USB data transmission
9. Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
10. 4x USB 3.0 port
11. HDMI output port
12. DisplayPort connector
13. DC jack: for 5V power input
14. 2x MIPI CSI camera connector
15. Multi-function 12PIN header
16. PWR button: Power ON/OFF control (same function as the PWR BTN pin)
