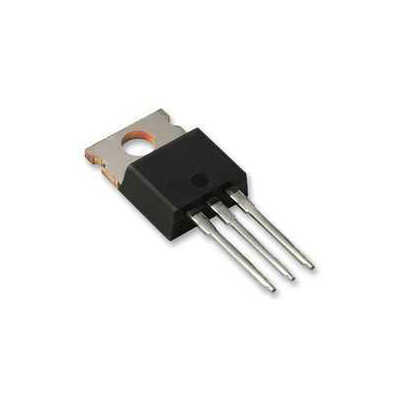

IRF2804 - 280A 40V MOSFET - TO220 Mosfet

IRF2804 - 280 A 40 V MOSFET - TO-220

The IRF2804 is an N-channel MOSFET designed for high-current and low-voltage power applications. With its low on-resistance (R_DS(on)) and high current-carrying capability, it provides excellent efficiency in motor drivers, DC-DC converters, power supplies, and battery management systems. Its fast switching performance and TO-220 package make it an ideal choice for both industrial and hobby electronics projects.

IRF2804 - 280 A 40 V MOSFET - TO-220 Specifications:

• MOSFET Type: N-Channel

• Maximum Drain-Source Voltage (V_DS): 40 V

• Maximum Continuous Drain Current (I_D): 280 A

• Power Dissipation (P_D): 300 W

• Gate Threshold Voltage (V_GS(th)): 2.0V - 4.0V

• On-Resistance (R_DS(on)): 0.002Ω (maximum)

• Package Type: TO-220

• Operating Temperature Range: -55°C ~ +175°C

Useful Documents:

• IRF2804 Datasheet
