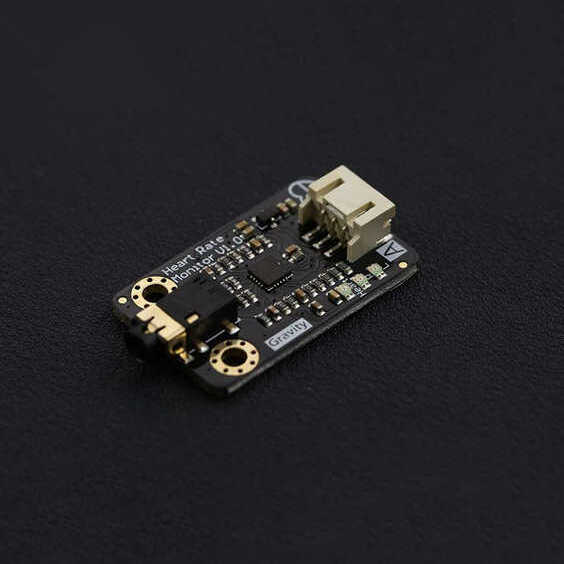

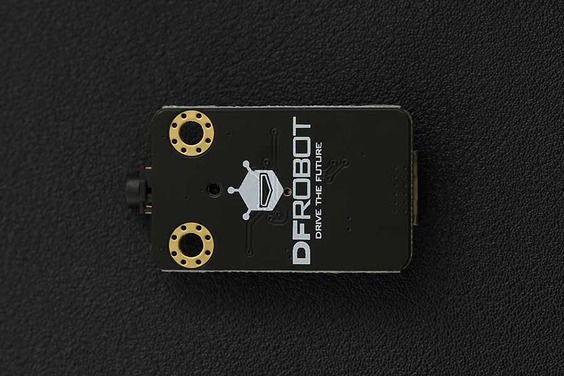

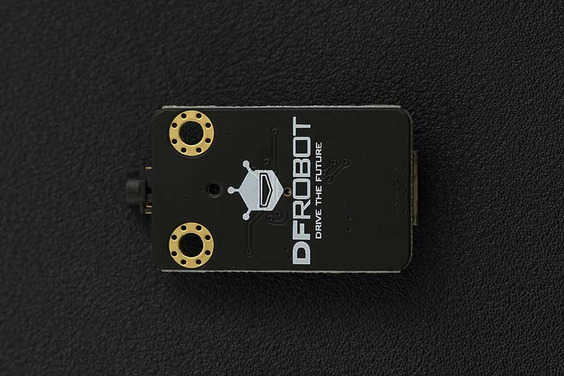

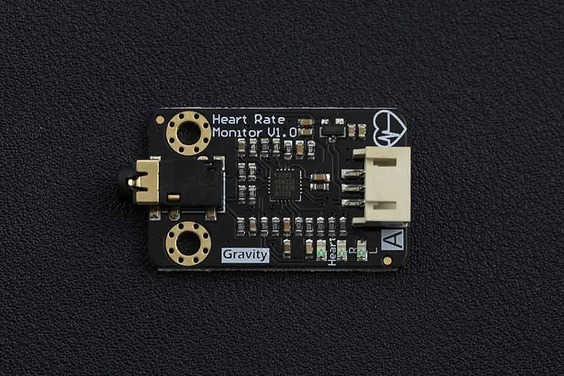

Gravity: Analog Heart Rate Monitor Sensor (ECG) For Arduino

Name: Gravity: Analog Heart Rate Monitor Sensor (ECG) For Arduino
Brand: DFROBOT
SKU: 18430
Price: 1020.14 TRY
Availability: OutOfStock
Rating: 5 (1 reviews)

Brand

: DFROBOT

Product Code

: 18430

Fiyat

: 850.12 TL + VAT

KDV Dahil Fiyat

: 1,020.14 TL

Out Of Stock

Notify me when its in stock

PURCHASED TOGETHER

INTRODUCTION

The DFRobot Heart Rate Monitor Sensor is used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG and output as an analog reading. An ECG signal can be extremely noisy so we have included an AD8232 chip which will generate a clear signal from the PR and QT Intervals. Using the Arduino IDE "Serial Plotter" feature, you are also able to view plotted ECG output on PC!

Gravity: Arduino Heart Rate Monitor Sensor (ECG) -DFRobot

To ease the difficult of using this sensor, a Gravity Interface is adapted to allow plug&play. The IO expansion shield is the best match for this sound senor connecting to your Arduino. As this sensor can work at 3.3V which make it compatible with Raspberry Pi, intel edison, joule and curie.

Analog sensor to monitor heart rate (ECG) with AD8232

NOTE: This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions.

SPECIFICATION

Input Voltage: 3.3-6V (5V recommended)
Output Voltage: 0-3.3V
Interface: Analog
Operating current: <10mA
imension: 35 x 22(mm), 1.378" x 0.866"(in)
Interface Type: PH2.0-3P

DOCUMENTS

Product WIKI

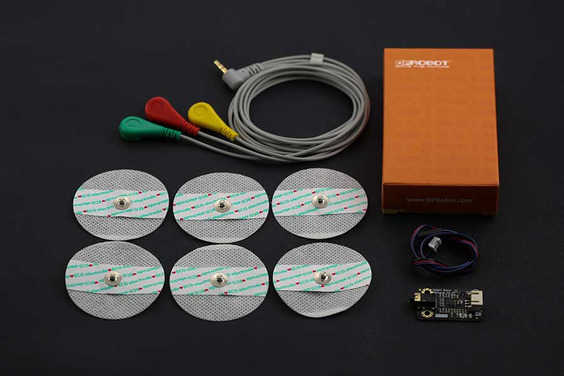

SHIPPING LIST

Heart Rate Monitor Sensor x1

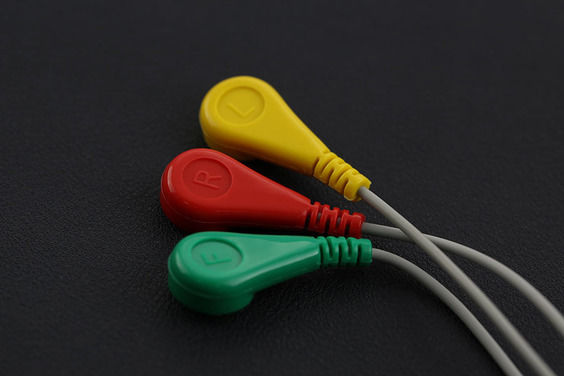

Sensor cable - Electrode Pads (3 connector) x1
Biomedical Sensor Pad x6
PH2.0-3P cable x1
