Force-Sensing Resistor - 1.5" Square - PL-1645

Product Code
:
13125
Brand / Origin
:
Pololu
Quantity
:
10+
Without Vat
:
66.84 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

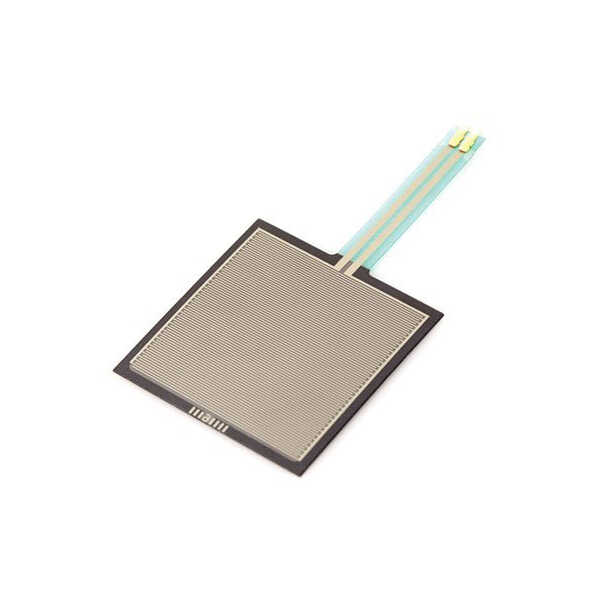

  • This force-sensing resistor (FSR) from Interlink Electronics is a passive component that acts as a variable resistor, with resistance decreasing in response to increasing applied force, which makes it easy to add a touch interface to your project or create a robot with much more sophisticated tactile senses than are possible with simple lever switches. The polymer thick film (PTF) device is optimized for use in human touch control of electronic devices and can sense an applied force anywhere in the active area ranging from a few dozen grams to a few kilograms

    According to tests, the resistance exceeded 1 MΩ with no applied pressure and dropped to a clearly detectable and very stable 50 kΩ with a 20 g weight placed on it. Pushing on the pad as hard as possible dropped the resistance to around 200 Ω. This resistance range is well suited to work directly with the internal pull-ups of many microcontrollers such as AVRs and PICs. The FSR was responsive enough and sensitive enough to distinctly pick up light, rapid finger taps, and it was even able to pick up the vibrations of a small vibration motor placed on it on the motor’s side.

    Product's Dimensions:

    • The Diameter of Pad: 4,37cm*4,37cm
    • The Dimensions Of The Detection Area: 3,81cm*3,81cm
    • Weigth: 1,2 gr
    • Thickness: 0,51 mm
    • The length of field that is between pins and detection area: 3,81cm

    The product's pin gap is suitable for using of breadboards.

    *Note: The product is not proper for sensitivity and resistance measurements. Force accuracy ranges can vary between %5 and %25 under the various circumstances. The resolution is the better than %5 of entire value range.
