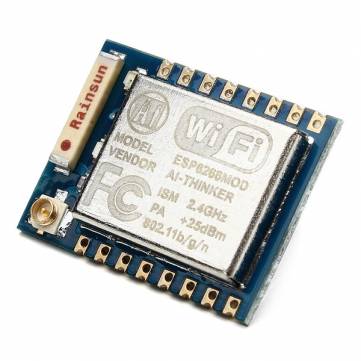

ESP8266-07 Economic Wifi Serial Transceiver Module

ESP8266-07 Wifi Serial Transceiver Module is a very economic and usefull Wifi module with same features as ESP8266 and also it can be used as SMD or pinned and it has inner antenna output. It supports TCP/IP protocol.

Antenna is not sent with the product.

Features:

• 802.11 b/g/n support
• Wi-Fi Direct (P2P) Support
• Inner TCP/IP protocol stack
• +19,5dBm output power (on 802.11b mode)
• Leak current < 10uA
• 32-bit inner processor with low power consumption
• SDIO 1.1/2.0, SPI and UART support
• STBC, 1x1 MIMO, 2x1 MIMO
• Turning on and receiving data package time < 2ms
• Power consumption on Stand-by state < 1mW



Documents:

• Click here for English datasheet.
• Click here for ESP8266 IOT SDK.
• Click here for detailed information and information of useage with Arduino.
• Click here for detailed information and example application.
• Click here for ESP8266 community forum.
