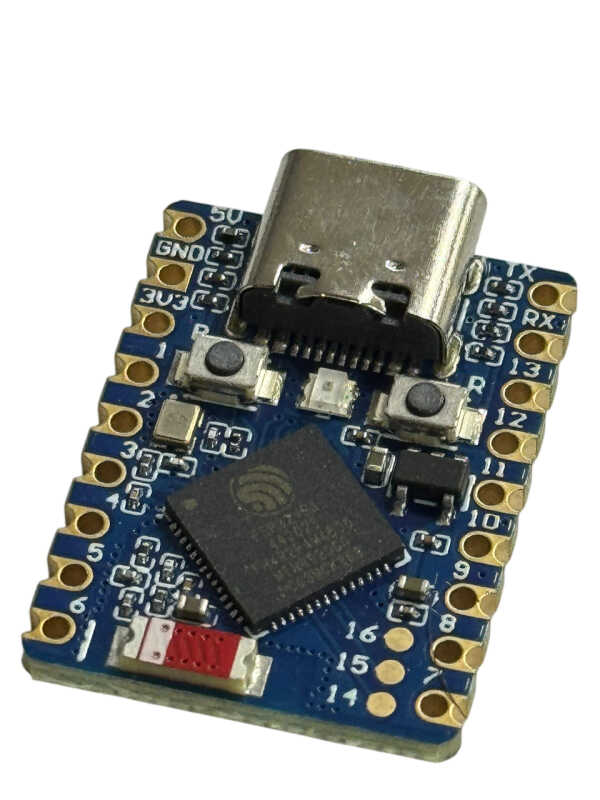

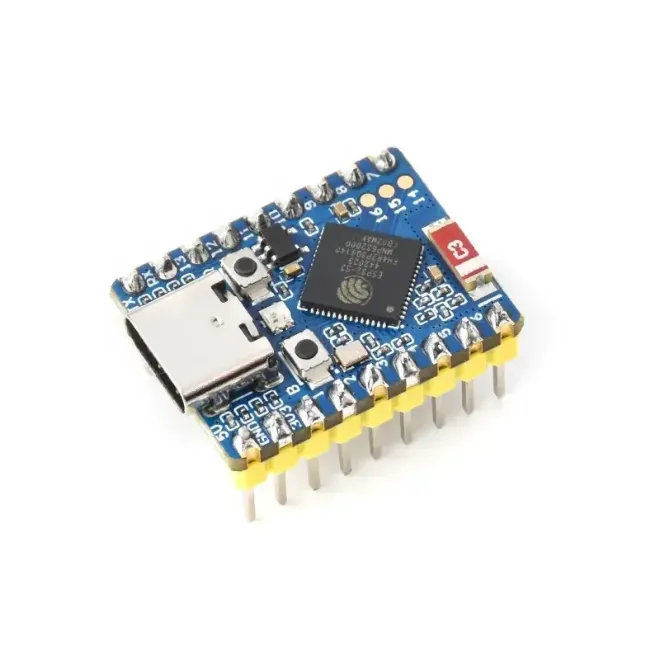

ESP32-S3 Mini WiFi and Bluetooth Development Board

ESP32-S3 Mini WiFi and Bluetooth Development Board

The ESP32-S3 Mini Development Board features Espressif’s powerful ESP32-S3 microcontroller in a compact design, offering high performance with integrated WiFi and Bluetooth connectivity. Its dual-core architecture makes it an excellent choice for IoT, embedded systems, and wireless communication projects requiring reliable and efficient operation.

With a clock speed of up to 240 MHz, built-in 2.4 GHz WiFi (802.11 b/g/n), and Bluetooth 5.0 + BLE support, the board is ideal for both high-speed data transmission and low-power applications. Its small form factor allows easy integration into space-constrained designs. Programming is simple via the onboard USB interface (Type-C or Micro USB depending on the model).

A rich set of GPIO interfaces including Digital I/O, ADC, PWM, UART, SPI, and I2C enables seamless integration with sensors, displays, and other peripherals. It supports Arduino IDE, ESP-IDF, and MicroPython, making it suitable for both beginners and professional developers.

ESP32-S3 Mini WiFi and Bluetooth Development Board Technical Specifications:

• Microcontroller: ESP32-S3

• Processor: Dual-core Xtensa LX7

• Clock Speed: Up to 240 MHz

• Wireless Connectivity: 2.4 GHz WiFi (802.11 b/g/n) and Bluetooth 5.0 + BLE

• USB Support: Onboard USB (Type-C or Micro USB depending on model)

• GPIO Interfaces: Digital I/O, ADC, PWM, UART, SPI, I2C

• Programming Support: Arduino IDE, ESP-IDF, MicroPython

• Operating Voltage: 5V via USB, onboard 3.3V regulator

• Low Power Mode: Deep Sleep support
