Notify me when its in stockELEGOO Mercury Plus 2 in 1 Washing and Curing Station V2.0

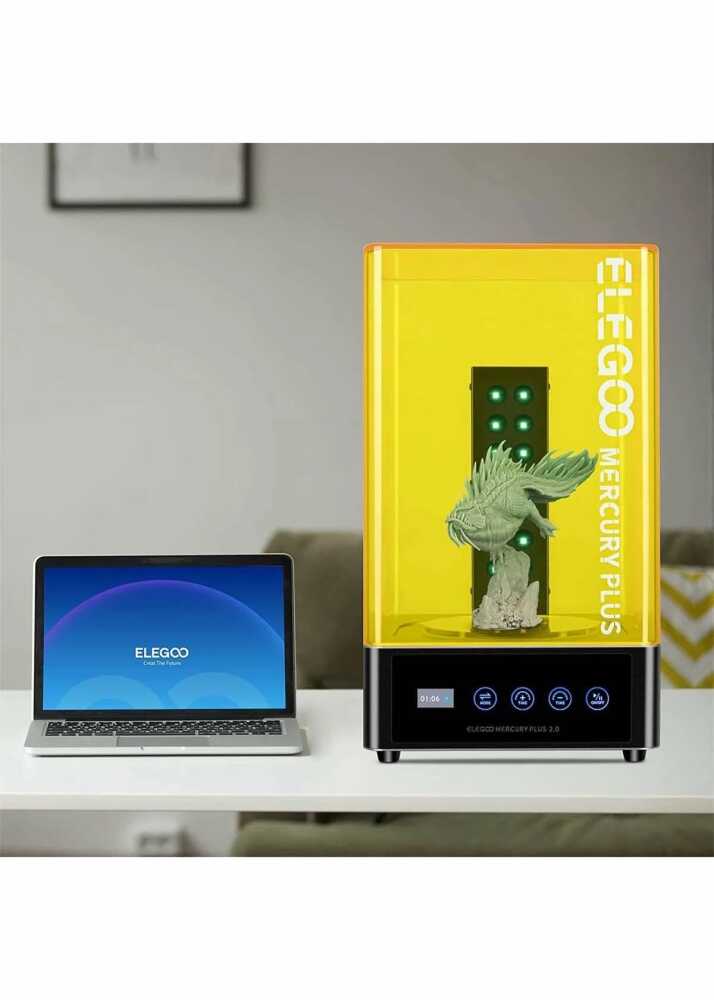

The ELEGOO Mercury Plus 2 in 1 Washing and Curing Station V2.0 is designed to provide an all-in-one post-processing solution for resin 3D prints. With upgraded protection, flexible washing modes and powerful 360° curing, it helps you achieve cleaner, stronger and more detailed results in less time.
Upgraded Protection Function: Sealed washing prevents alcohol from evaporating during the cleaning process. The fanless curing mode makes operation quieter, and the UV-blocking cover can block up to 99.95% of ultraviolet light to protect your eyes.
Smart Curing and Washing: The front TFT screen directly displays the set time and remaining time, making operation simple and intuitive. With 16 built-in 405 nm UV LEDs and a 360-degree rotating turntable, the model can be cured evenly from all directions.
Flexible Washing Modes: Models can be placed in a washing basket to be cleaned separately, or you can mount the build plate with the models still attached to avoid direct contact with uncured resin. The height of the platform bracket can be adjusted to match the liquid level in the bucket.
Ideal Compatibility: Compatible with most LCD/DLP/SLA 3D printers such as ELEGOO Mars, Mars Pro, Mars C, Photon, Photon S and more, providing ideal support for washing and curing your 3D resin prints.
Special Notes: The washing function is not very suitable for 3D models printed with water-washable resin, which are better cleaned under running water.
With dual washing and curing functions integrated into a single machine, it greatly saves desktop space. The closed washing feature effectively prevents alcohol from evaporating during cleaning and helps protect your health. The fanless design in curing mode reduces noise and delivers a more pleasant user experience.
Enhanced Safety
The enclosed washing chamber prevents alcohol from volatilizing during the cleaning process and helps protect your health. The UV-blocking cover can block up to 99.95% of ultraviolet light to protect your eyes during curing.
Lower Noise While Curing
The fanless design ensures less noise even during the curing process, allowing you to focus more on your prints and less on background sound.
360° All-Round Curing
The 360-degree rotating turntable quickly cures every detail of the model, helping you obtain a smooth and consistent surface finish from all angles.
Powerful Curing Mode
Sixteen built-in 405 nm UV curing LEDs provide strong and uniform UV light to cure your models quickly and efficiently.

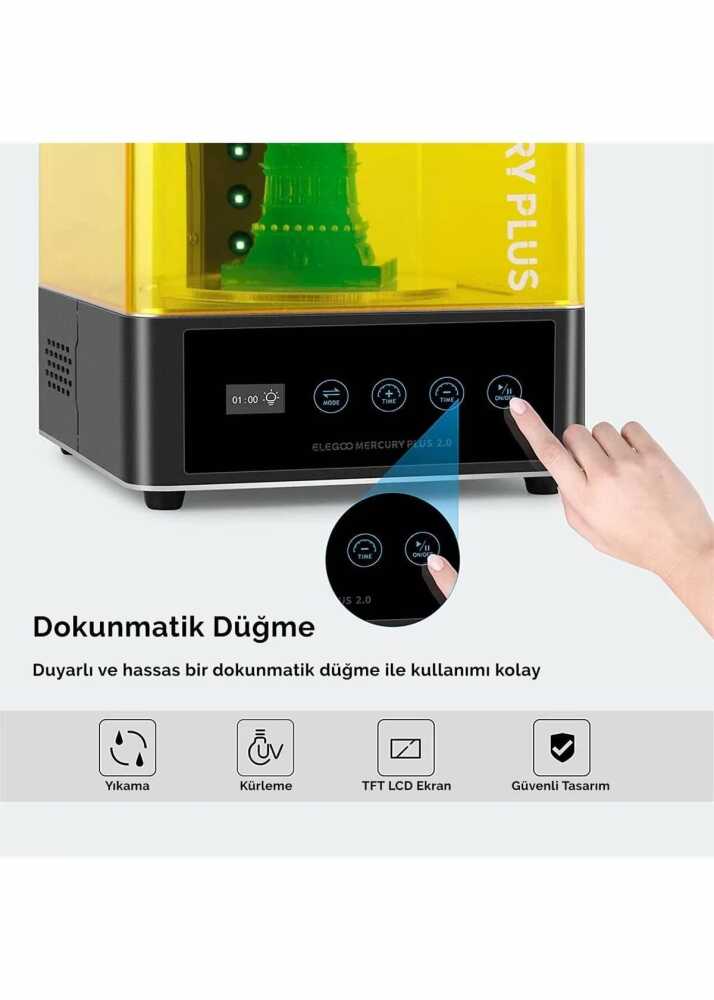

Smart Operation Mode
Simply touch the button to set the working time and see the remaining time on the display. When curing is finished, the machine beeps to notify you, saving both time and effort.
Flexible Cleaning Methods
Washing with the Build Platform
If the printed model has not been removed from the build platform, mount the build platform onto the adjustable platform support (the height of the support can be adjusted according to the liquid level in the bucket, with a maximum model height of 120 mm), then hang the platform bracket on top of the column to start the cleaning process.

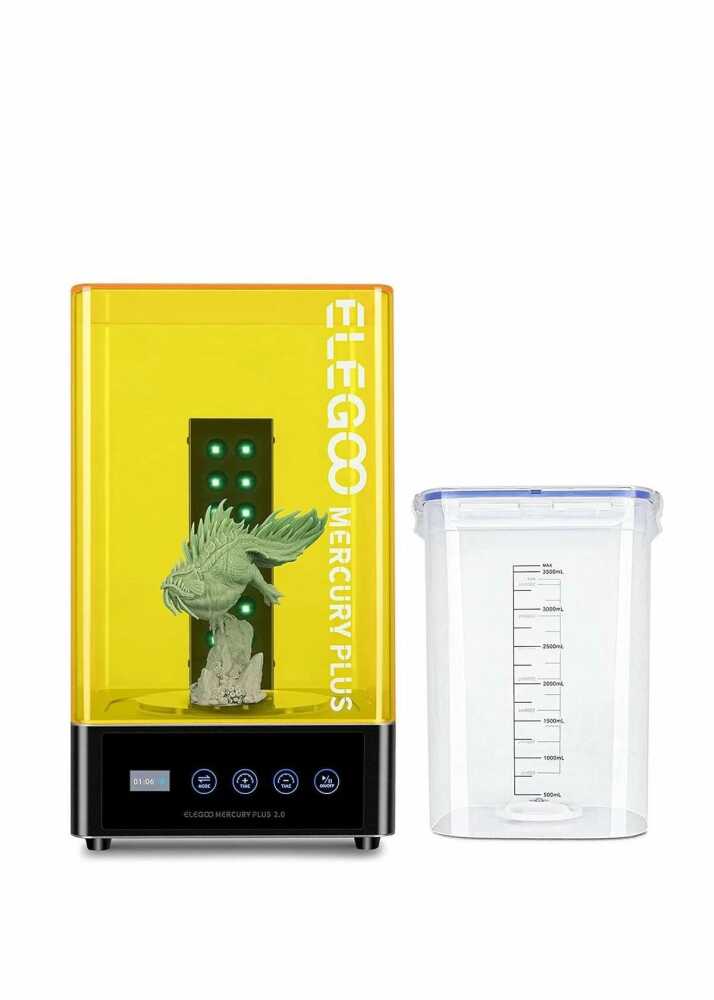

Washing with the Bucket and Basket
If the model has been removed from the build platform, place the print into the cleaning basket (maximum model height 160 mm), then hang the basket on the column to start washing. Models larger than 15 mm can use this cleaning option, and several small models can be cleaned together in the same bucket.
ELEGOO Mercury Plus 2 in 1 Washing and Curing Station V2.0 Technical Specifications:
Control Method: Touch button
Rated Power: 48 W
Input Voltage: 100 V / 240 V 50/60 Hz
UV Light: 405 nm (8 + 8 LEDs)
Time Setting: 0–30 minutes
Machine Size: 200 mm x 200 mm x 352 mm
Maximum Curing Size: φ140 x 165 mm
Maximum Washing Volume: 124 mm x 90 mm x 110 mm (with platform), 131 mm x 90 mm x 220 mm (without platform)
Net Machine Weight: 3.8 kg
