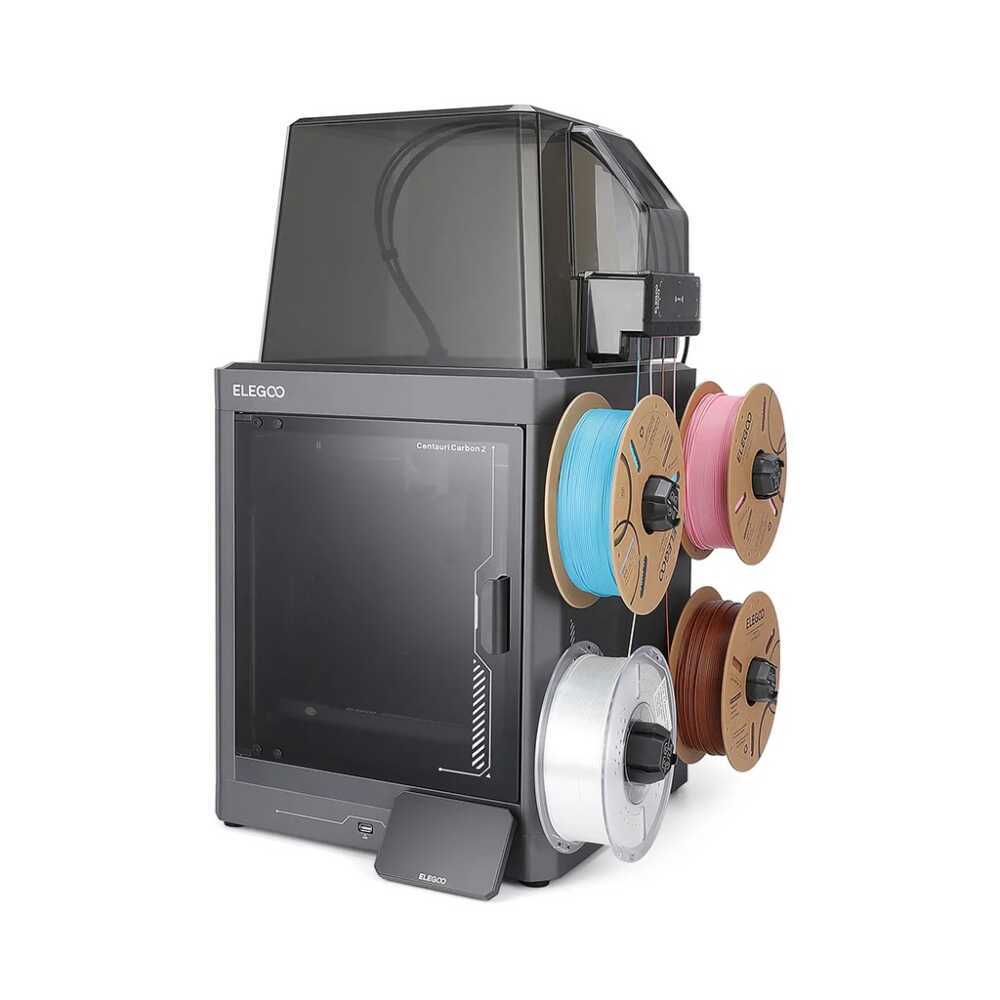

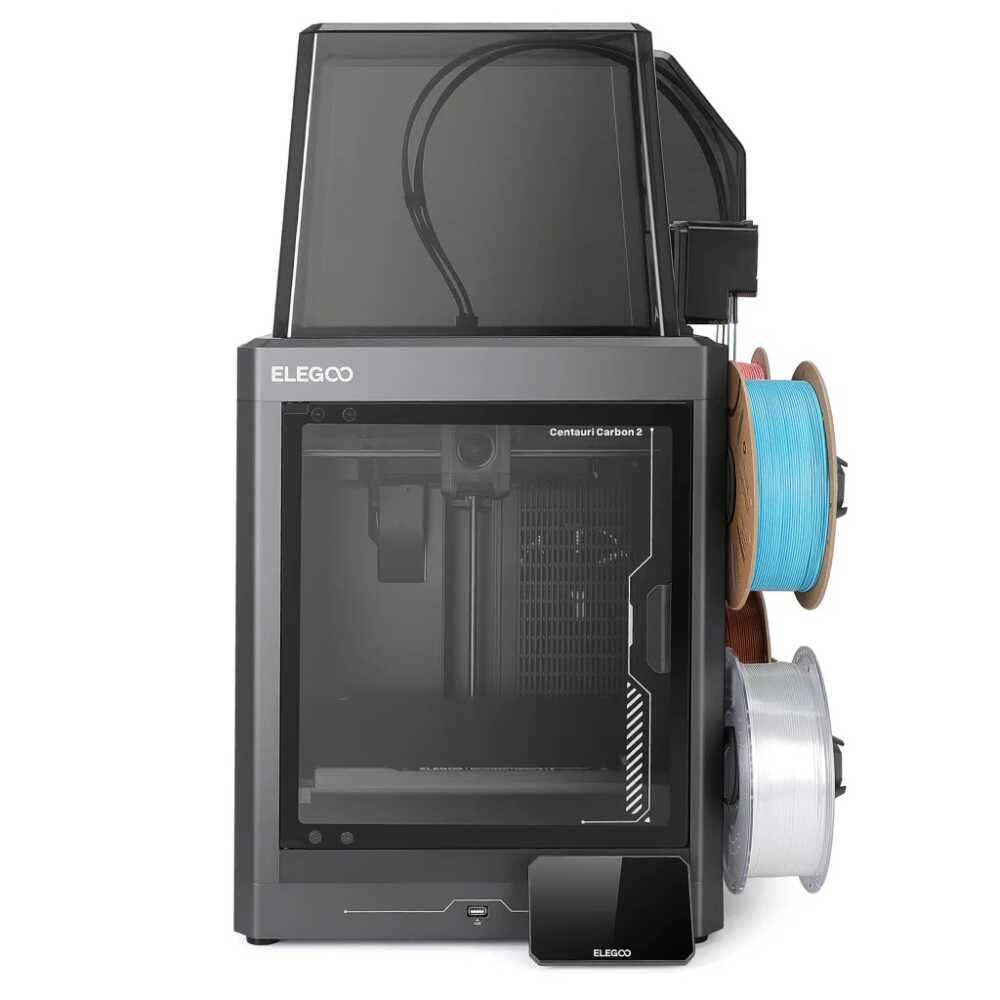

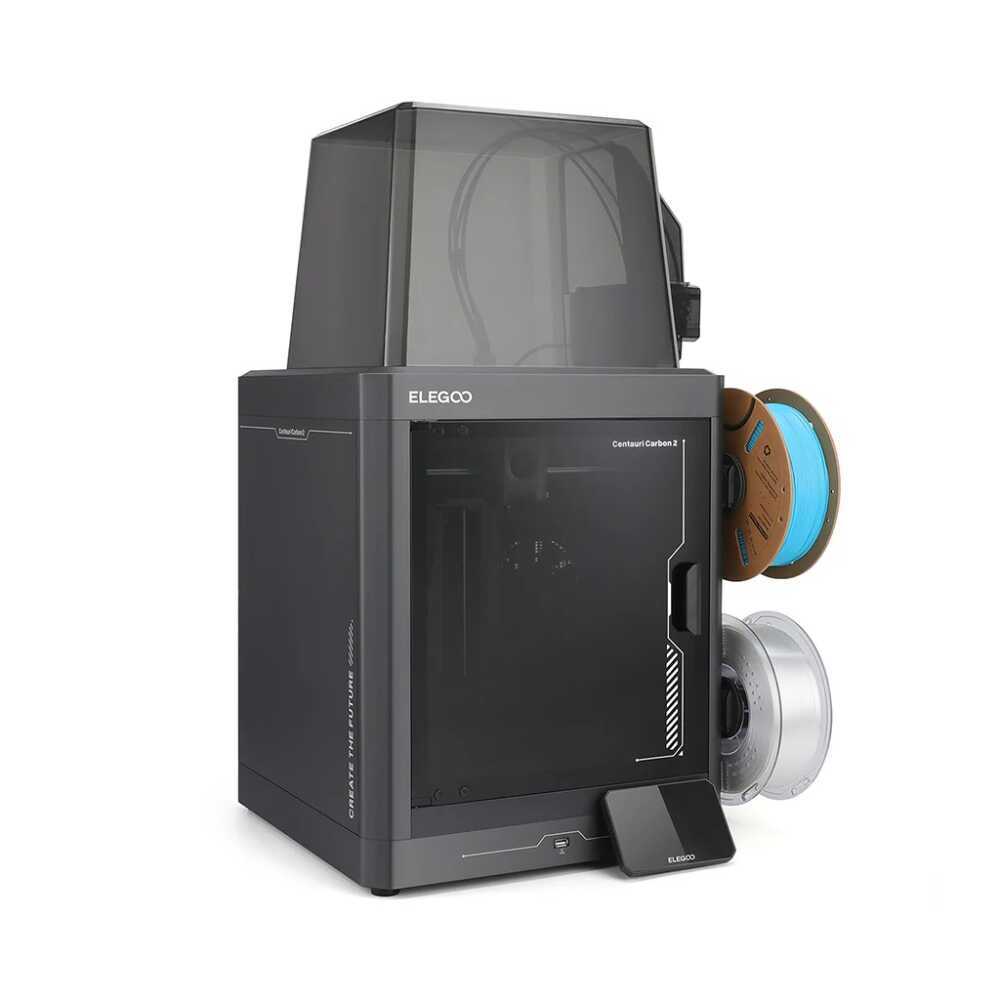

ELEGOO Centauri Carbon 2 Combo 3D Printer

ELEGOO Centauri Carbon 2 Combo 3D Printer

The ELEGOO Centauri Carbon 2 Combo is an enclosed FDM 3D printer that stands out with its high-speed CoreXY motion system, and thanks to the CANVAS multicolor printing system, it can produce up to 4 colors in a single print. With a 256 x 256 x 256 mm build volume; a nozzle structure resistant up to 350°C, a 110°C heated bed, an intelligent sensor infrastructure, and features such as fully automatic calibration/bed leveling, it offers a comprehensive platform for both beginners and performance-focused users.

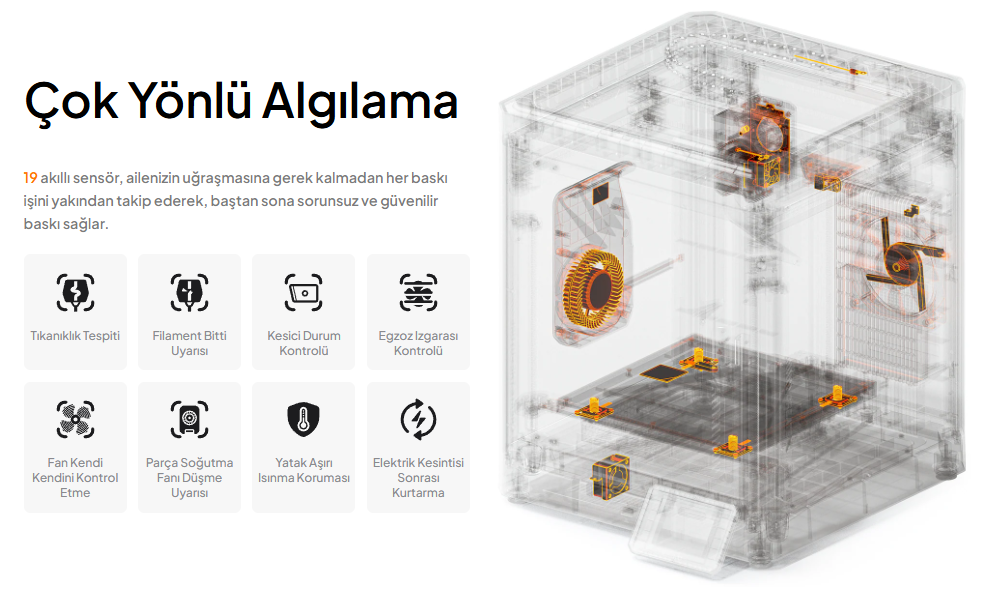

The printer makes the printing process more stable with safety and comfort-oriented functions such as live monitoring and timelapse via the built-in camera, AI-based smart detection, filament runout detection, clog detection, power loss recovery, and automatic filament unloading. On the CANVAS side, details such as RFID filament detection, automatic refill (auto refill), and auto tangle detection make multicolor use easier and more efficient.

ELEGOO Centauri Carbon 2 Combo 3D Printer Technical Specifications:

• Printing technology: FDM (Fused Deposition Modeling)

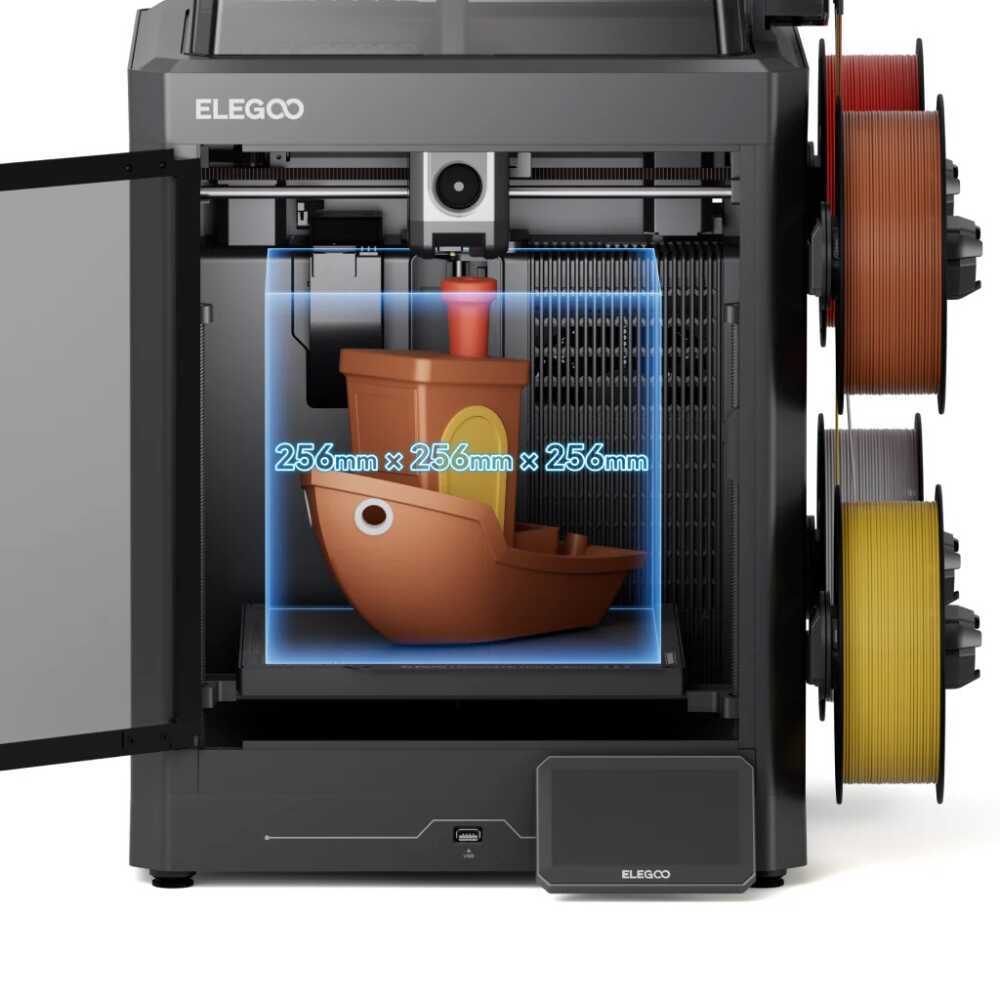

• Build volume: 256 x 256 x 256 mm

• Bed (platform) size: 260 x 260 mm

• Multicolor printing: Yes (Multicolor Capability: Yes)

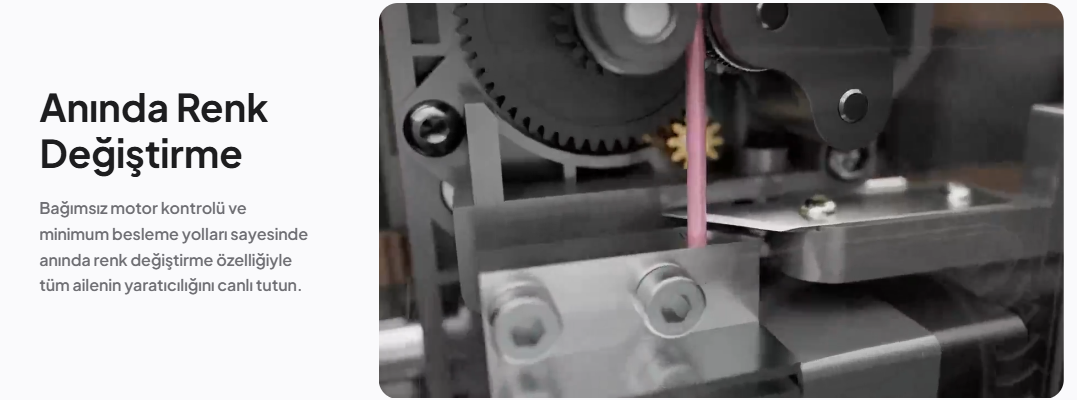

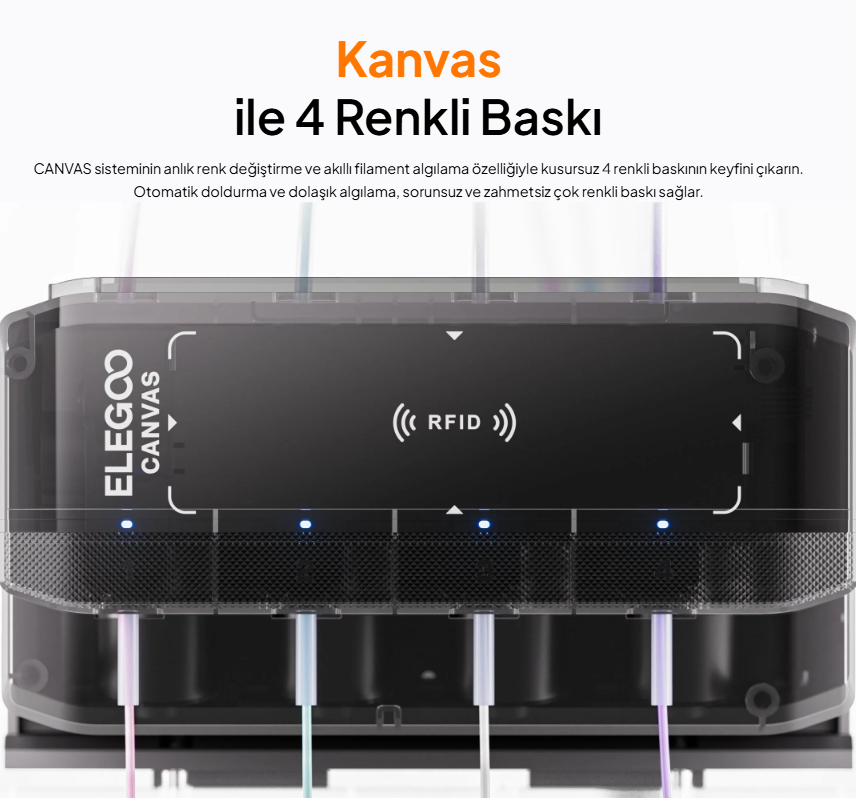

• CANVAS system: 4-color printing support

• RFID filament detection: Yes

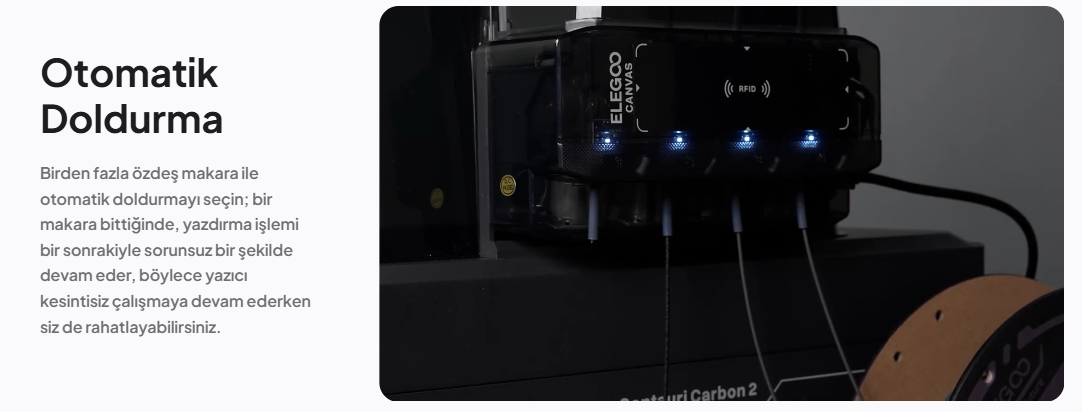

• Automatic filament refill (Auto Refill): Yes

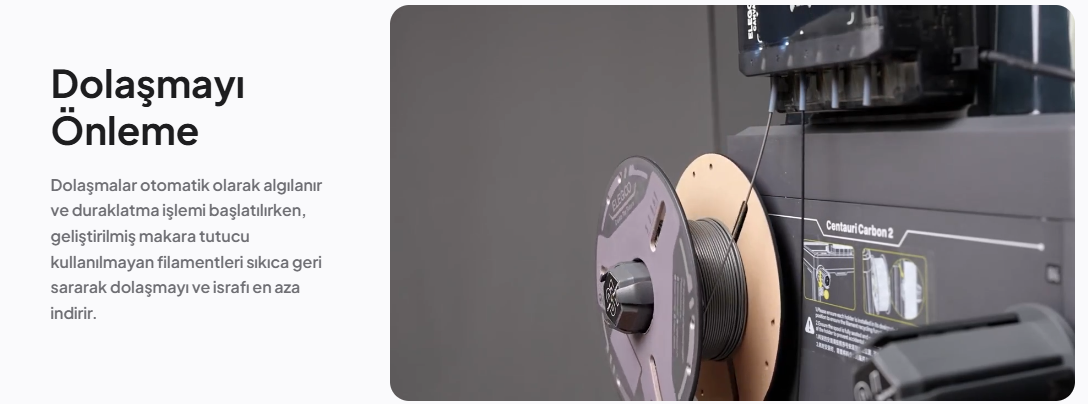

• Auto tangle detection (Auto Tangle Detection): Yes

• Max print speed: ≤ 500 mm/s (Recommended: 250 mm/s)

• Default acceleration: 10,000 mm/s²

• Max acceleration: 20,000 mm/s²

• Print accuracy: ±0.1 mm

• Layer height: 0.1 – 0.4 mm (Recommended: 0.2 mm)

• Extruder: Dual-gear direct-drive extruder (1 fan)

• Nozzle material: Brass + hardened steel (Brass-Hardened Steel)

• Nozzle diameter: 0.4 mm

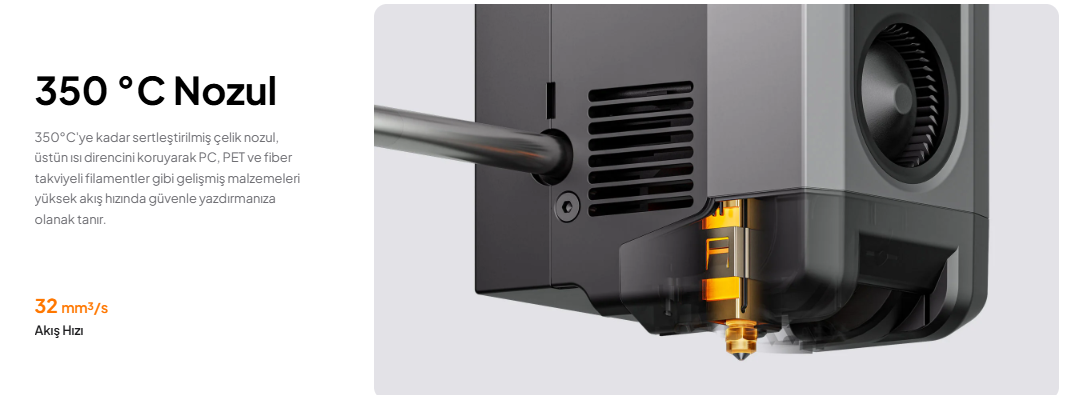

• Max nozzle temperature: 350°C

• Heat break: Titanium alloy

• Bed type: Double-sided spring steel sheet (Textured PEI + PLA special surface)

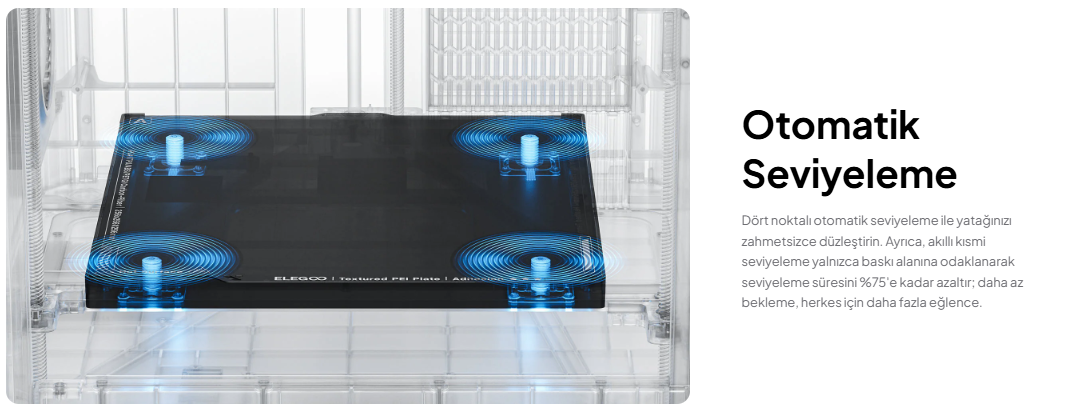

• Bed leveling: 121-point auto-leveling (121-Point Auto-Leveling)

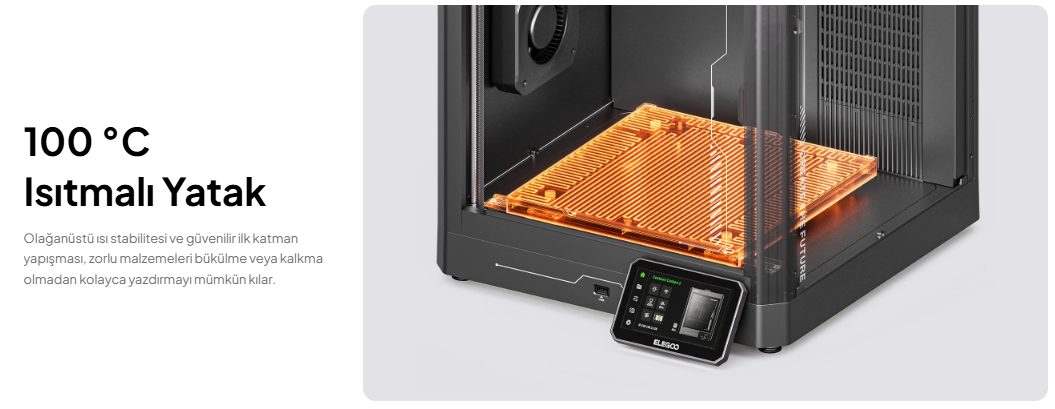

• Max bed temperature: 110°C (at 25°C ambient)

• Operating ambient temperature range: 5°C – 40°C

• Z-axis: 3 lead screws + 3 linear guide rods

• Motor drivers: Silent drivers on all axes (Silent Drive)

• Mainboard: Powerful self-developed mainboard

• LED lighting: Yes

• Camera: Yes (AI smart detection + timelapse)

• Filament runout sensor: Yes

• Clog detection: Yes

• Power loss recovery: Yes

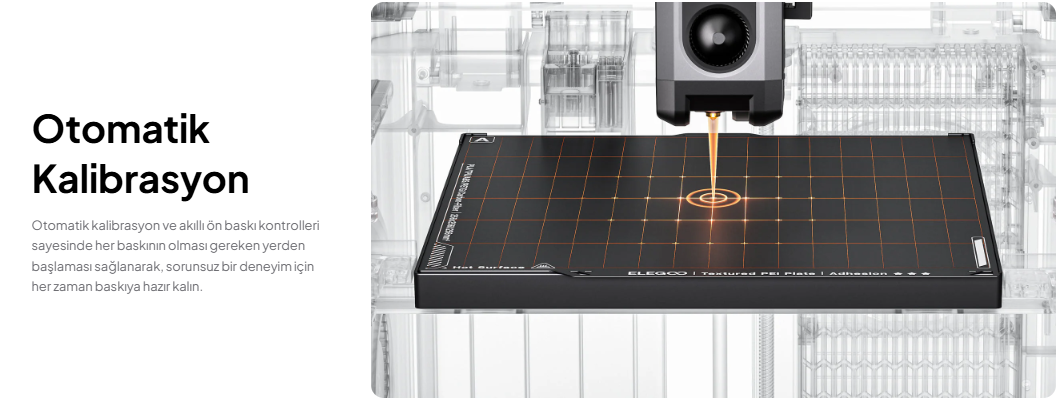

• Full-auto calibration: Yes

• Automatic filament unloading: Yes

• System interface: ELEGOO OS

• Display: 5-inch color capacitive touchscreen

• Language support: English, French, German, Russian, Italian, Spanish, Japanese, Chinese

• Connectivity: USB, Wi-Fi

• Slicing software: ElegooSlicer (recommended), Orca, Cura

• Input formats: STL, OBJ, 3MF, STEP

• Output format: Gcode

• Filament diameter: 1.75 mm

• Recommended filaments (Ideal): PLA, PETG, TPU, ABS, ASA, PLA-CF

• Supported filaments (Capable): PETG-CF, ABS-CF, ASA-CF, PET-CF, PA-CF, PET, PC, PA

• Machine dimensions: 500 x 480 x 743 mm

• Package dimensions: 490 x 495 x 560 mm

• Net weight: 19.35 kg

• Gross weight: 23.8 kg

• Power input: 100–240 VAC 50/60 Hz

• Power output: 24 V

• Rated power: 1100 W @ 220 V; 350 W @ 110 V

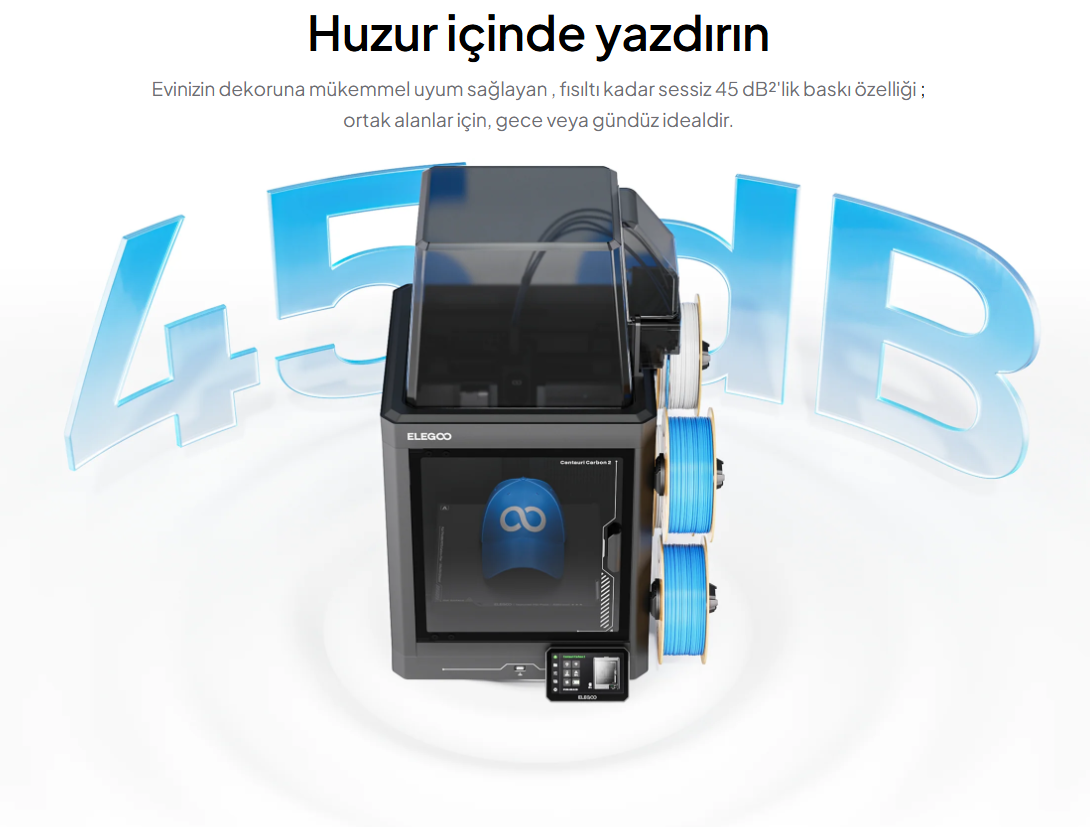

• Operating noise: ≤45 dB
