DC Barrel Jack Power Connector - Female

DC Barrel Jack Power Connector - Female

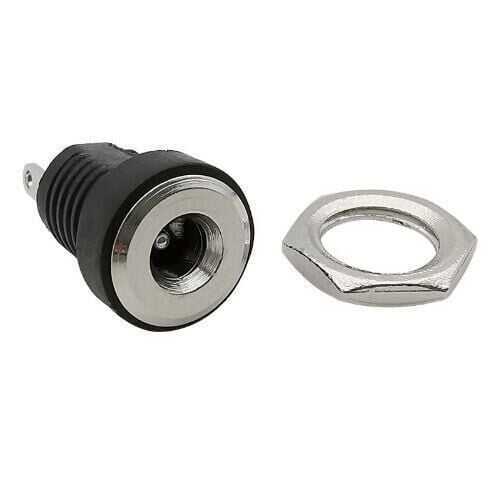

This DC Barrel Jack Female Power Connector is compatible with special jacks sized 3.5 x 1.3 mm and designed for external panel mounting (SMD, SMT) applications. Its compact design and high durability provide a secure power connection in various electronic projects. Ideal for both industrial and hobbyist uses.

Technical Specifications:

• Contact Resistance: ≤ 0.05Ω

• Insulation Resistance: ≥ 100MΩ

• Withstand Voltage: 500V AC / minute

• Rated Load: 30V DC 4-5A

• Insertion Force: 3N ~ 20N

• Electrical Life: 5000 cycles

• Operating Temperature: -30 ~ +70℃

• Compatible Jack Size: 3.5 x 1.3 mm

• Housing Size: 6.5 x 8.1 x 12.1 mm
