CD4511 BCD to 7 Seg. Latch/Decoder/Driver

CD4511

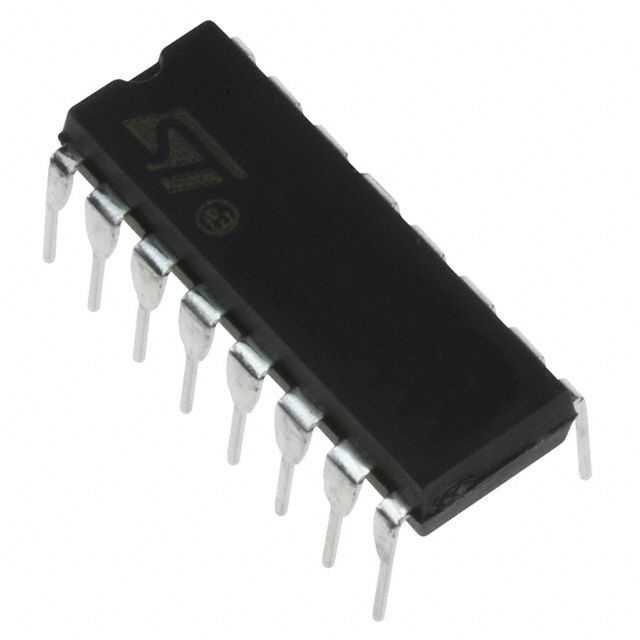

The CD4511 is a CMOS integrated circuit that converts BCD (Binary Coded Decimal) inputs into outputs suitable for 7-segment LED displays. It translates 4-bit binary input data into the corresponding numeric value for display. The built-in latch feature allows input data to be held, providing stable display output. It is widely used in digital displays, counter circuits, and microcontroller-based applications. Thanks to its low power consumption and wide operating voltage range, it is ideal for both educational and industrial projects.

CD4511 - Technical Specifications:

• Function: BCD to 7 Segment Latch / Decoder / Driver

• Input Type: BCD (4-bit)

• Output Type: 7-Segment LED Displays (Common Cathode)

• Operating Voltage: 3V - 15V

• Output Current: 25 mA (max)

• Built-in Latch and Blank Inputs

• Low Power Consumption (CMOS Technology)

• Package Type: DIP-16
