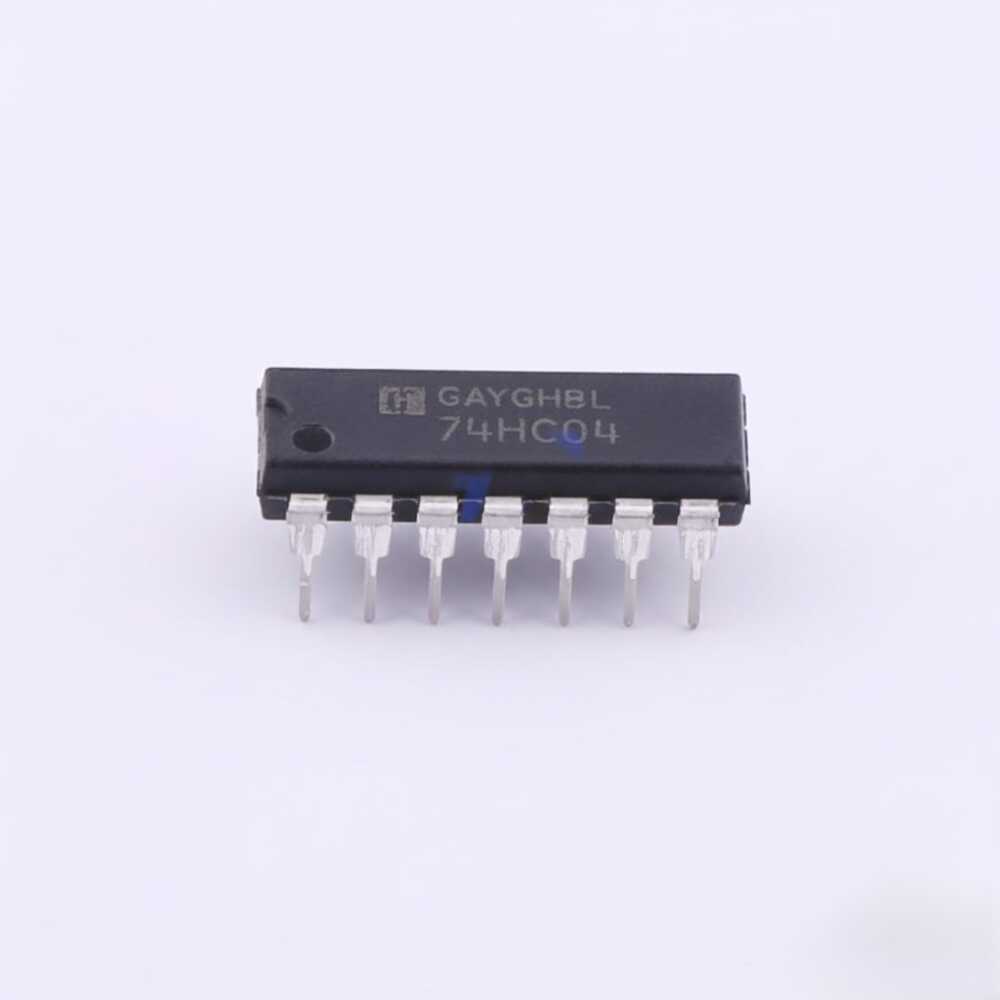

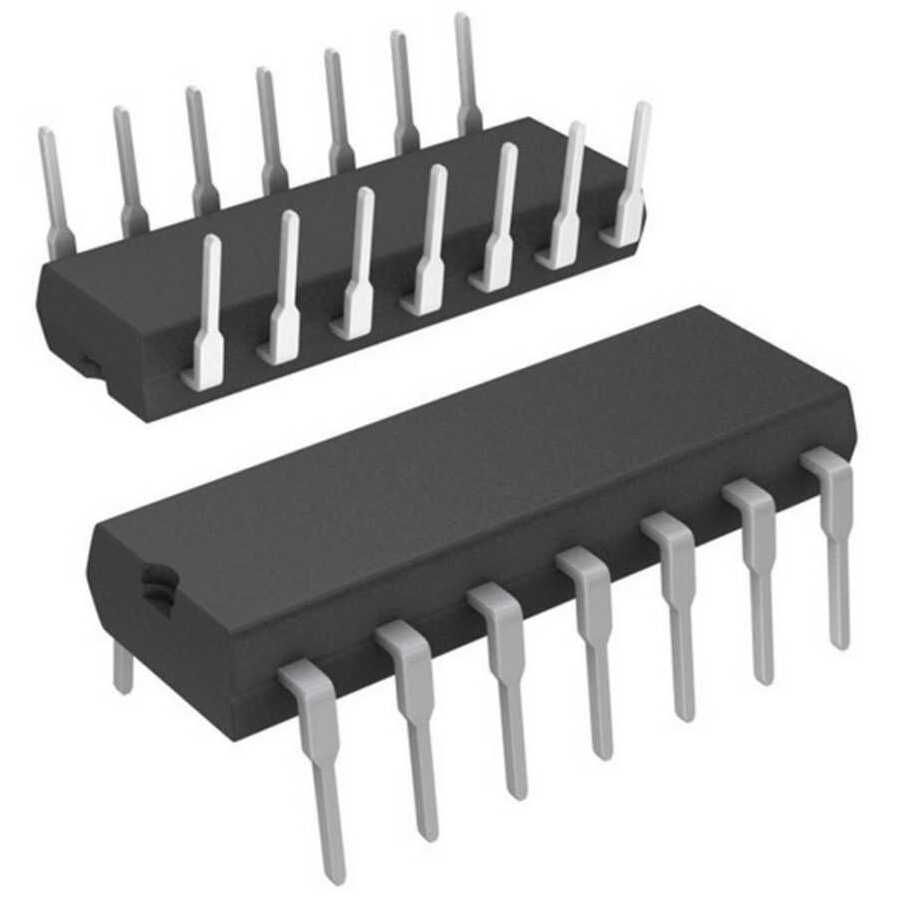

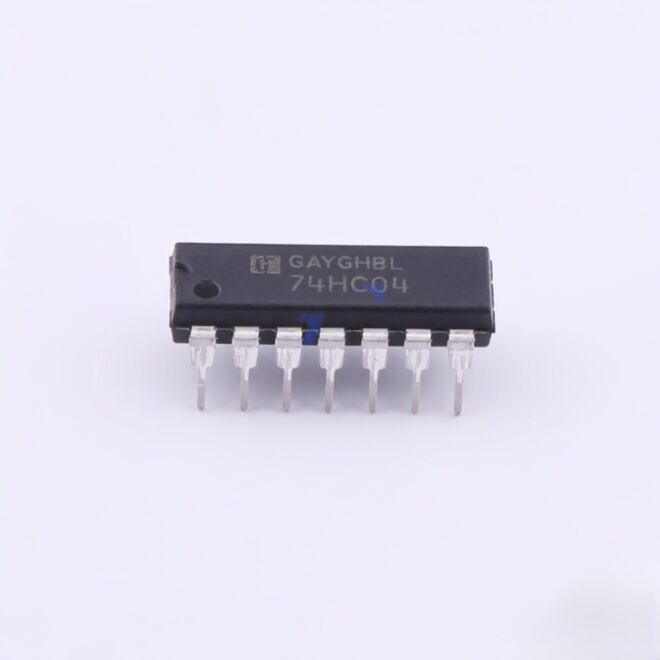

74HC04 IC

74HC04 IC

The 74HC04 is a high-speed CMOS logic IC that contains six independent NOT (inverter) gates. Each gate outputs the logical inverse of the input signal. It is commonly used in digital systems as a signal inverter, oscillator circuit, or logic processing component. With TTL-compatible inputs and outputs, it can be easily integrated with microcontrollers and other digital devices.

74HC04 IC Specifications:

• Logic Gate Type: 6 independent NOT (inverter) gates

• Operating Voltage: 2V - 6V

• TTL-compatible inputs and outputs

• Maximum Operating Frequency: 29 MHz (at 5V supply)

• Operating Temperature Range: -40°C ~ +85°C

• Low power consumption and high switching speed

• Package Type: DIP-14 or SOIC-14

Useful Documents:

• 74HC04 Datasheet
