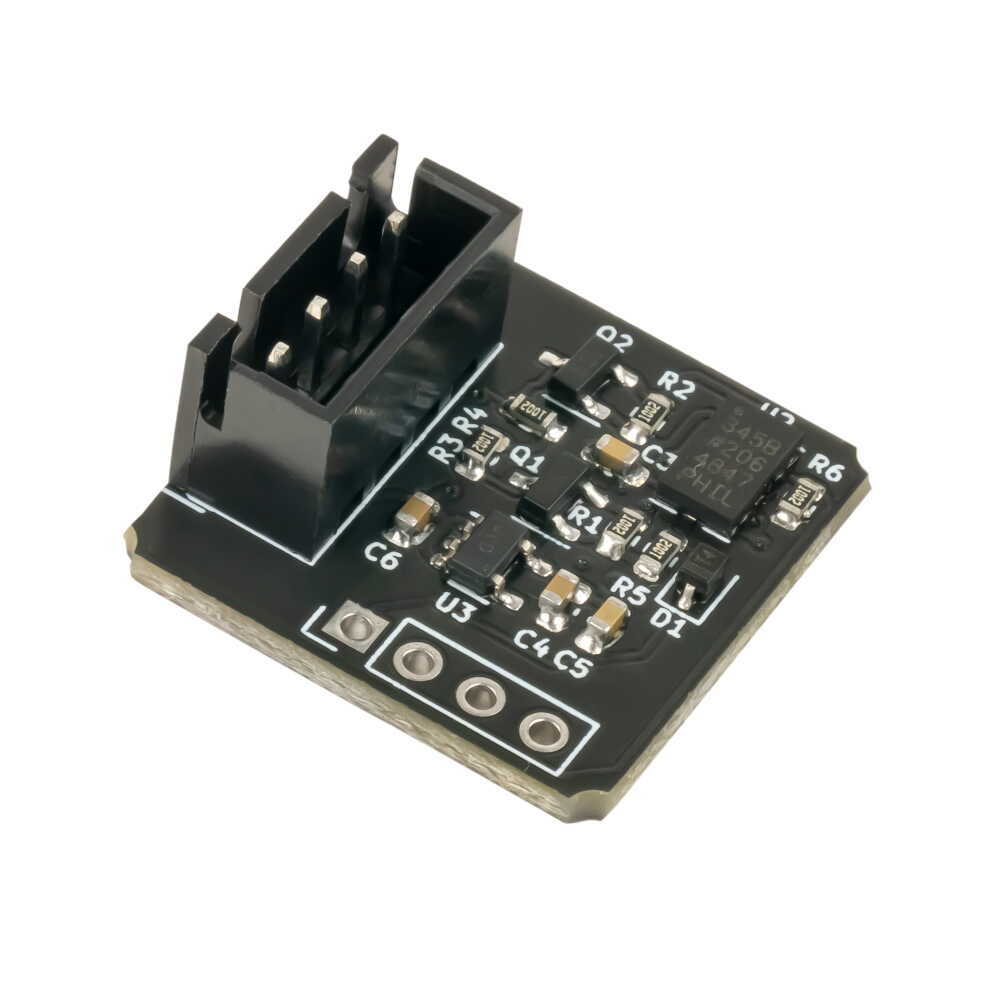

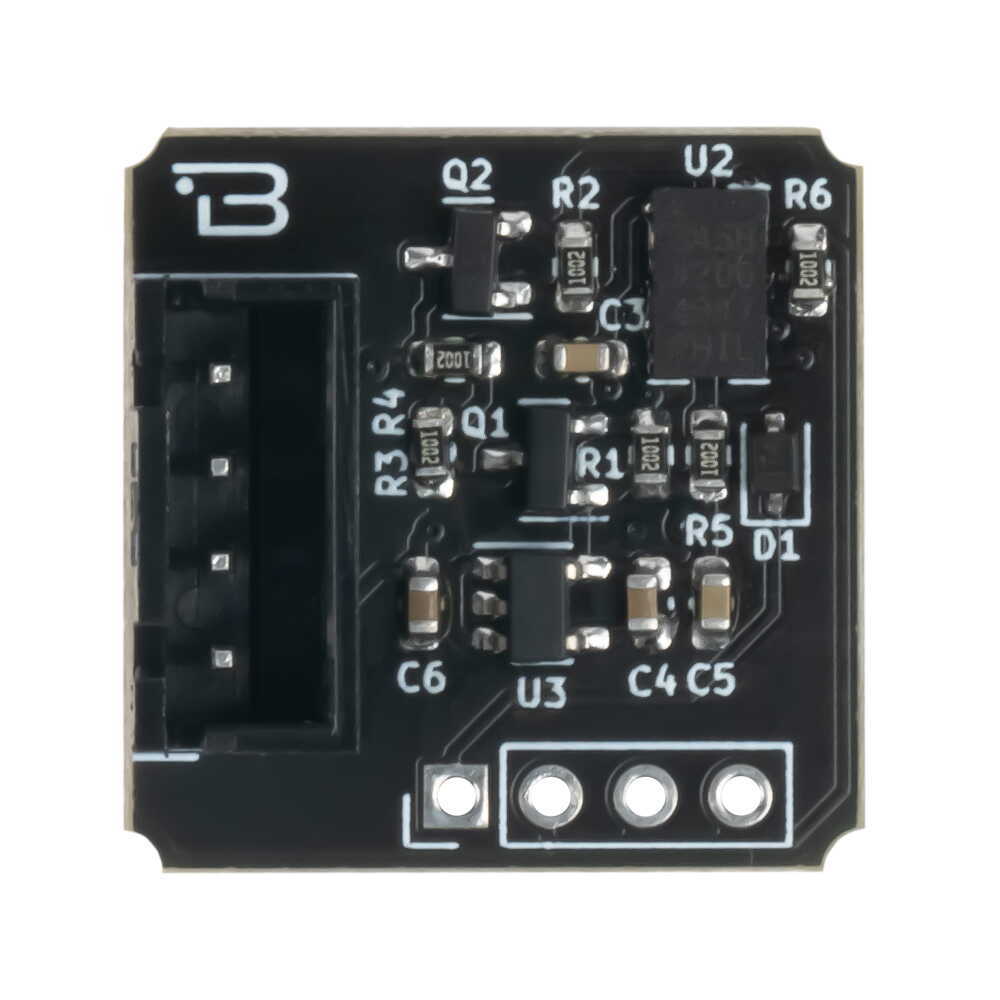

Boardoza ADXL345 Accelerometer Sensor Breakout Board

The ADXL345 Triple Axis Accelerometer Breakout Board is a high-performance accelerometer designed for dynamic acceleration measurement and static angle detection. It supports both SPI and I²C interfaces, providing versatile options for integration into various applications, including motion detection, gaming, robotics, and industrial instrumentation.

• High Resolution: Up to 13-bit resolution allows for measurement of inclination changes less than 1.0°.
• Triple Axis Measurement: Measures acceleration on X, Y, and Z axes.
• Wide Range: It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock.
• Adjustable Sensitivity: It has selectable measurement ranges of ±2g, ±4g, ±8g, and ±16g.
• Ultra Low Power Consumption: Suitable for battery-powered devices.

• Power Input Type: Molex 2 pin 2.50 header
• Input Voltage: 3.3V or 5V
• Functions: Digital accelerometer
• Measurement Range: ±2g, ±4g, ±8g, and ±16g
• Resolution: 10-bit (default), 13-bit (high resolution mode)

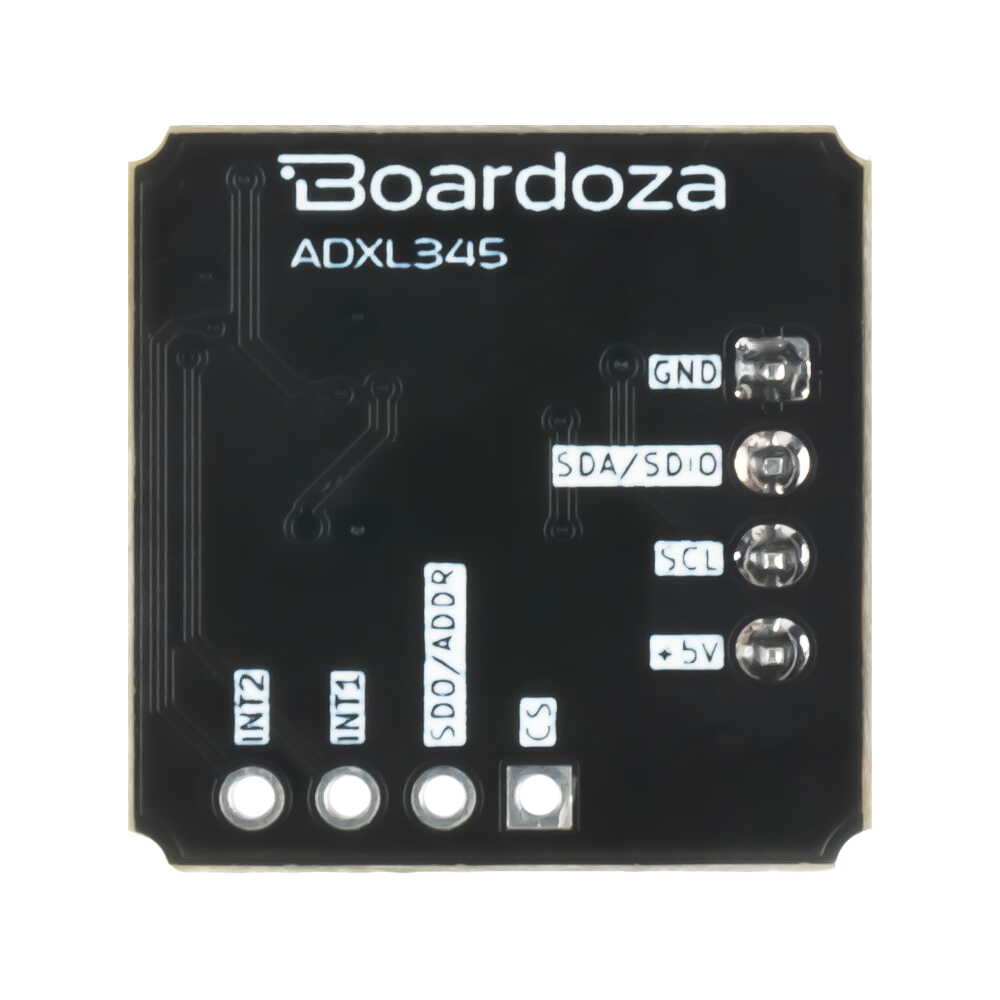

• Interface: I²C, SPI (3 and 4 wire)
• Operating Temperature: -40°C ~ +85°C

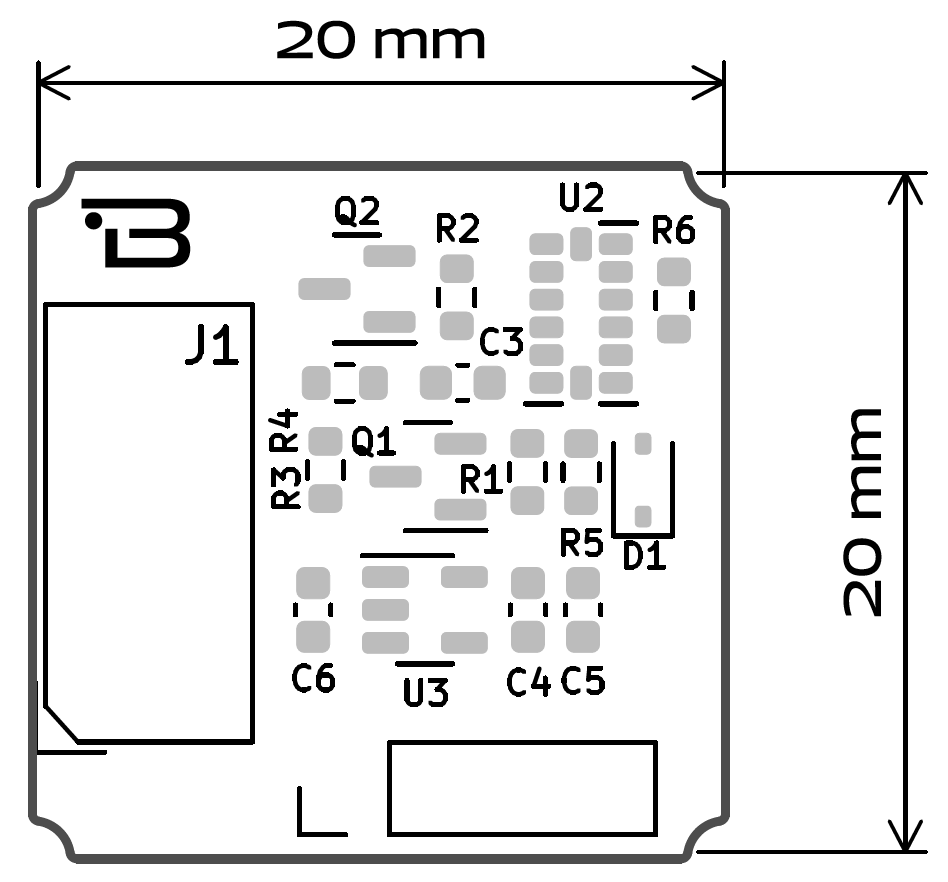

• Board Dimensions: 20mm x 20mm
