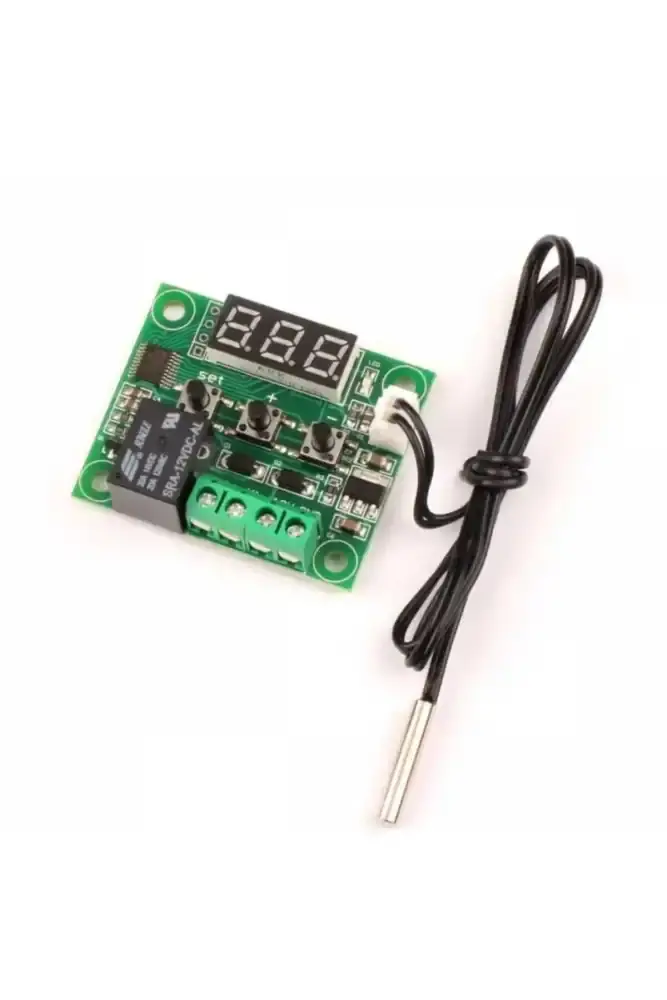

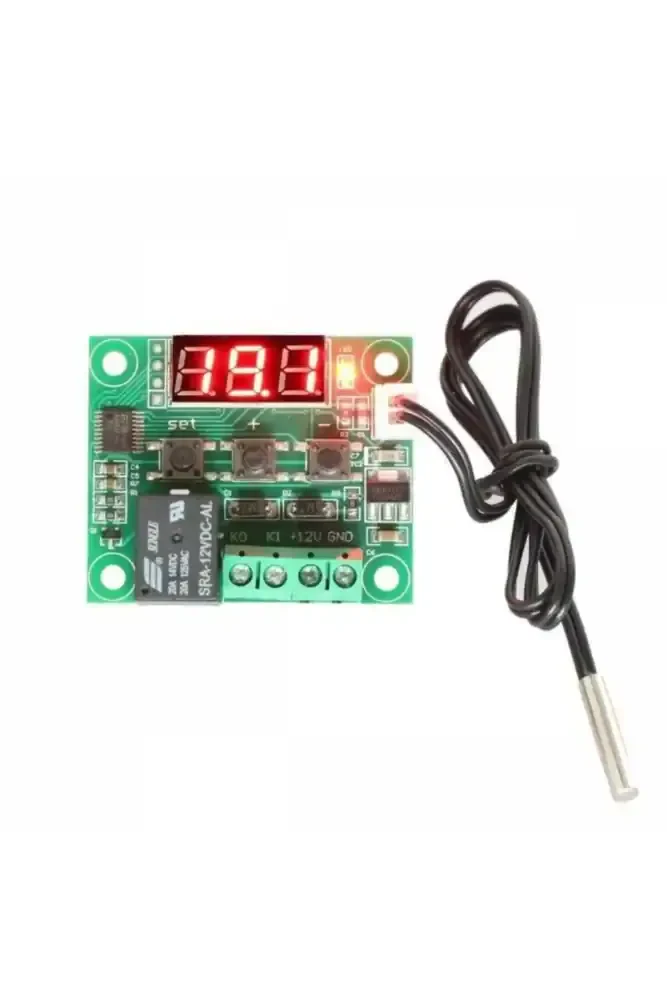

Adjustable Digital Thermostat with Relay Output (12V)

Adjustable Digital Thermostat with Relay Output (12V)

The Adjustable Digital Thermostat with Relay Output (12V) is an electronic device used in systems that require temperature control. Its main function is to use a relay output to turn a device on or off based on the desired temperature range.

Technical Specifications:

• Dimensions: 48.5mm x 40mm

• Current When Relay is Active: 65mA

• Standby Current: 35mA

• Operating Conditions: -10 ~ 60°C, 20% - 85% humidity

• Accuracy: 0.1°C between -9.9~99.9°C, 1°C outside this range

• Sensor: NTC type (10k ±0.5%) waterproof

• Measurement Range: -50 to 110°C

• Supply Voltage: 12VDC

• Output: 20A

• Temperature Control Mode: On/Off
