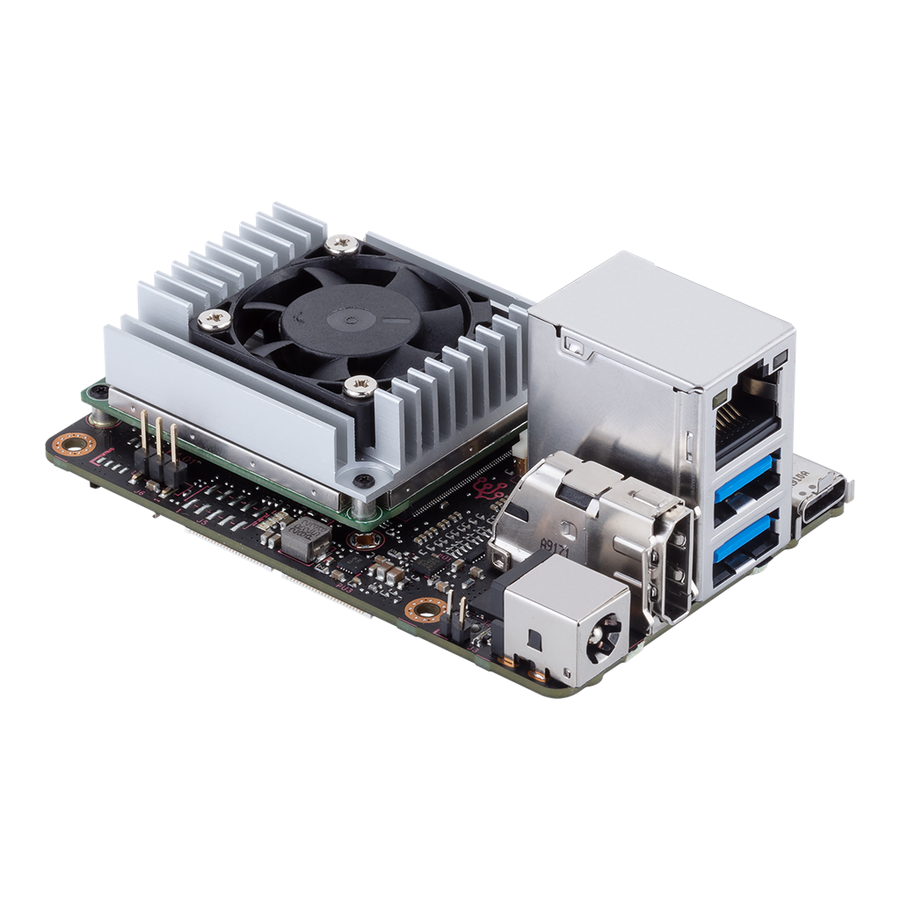

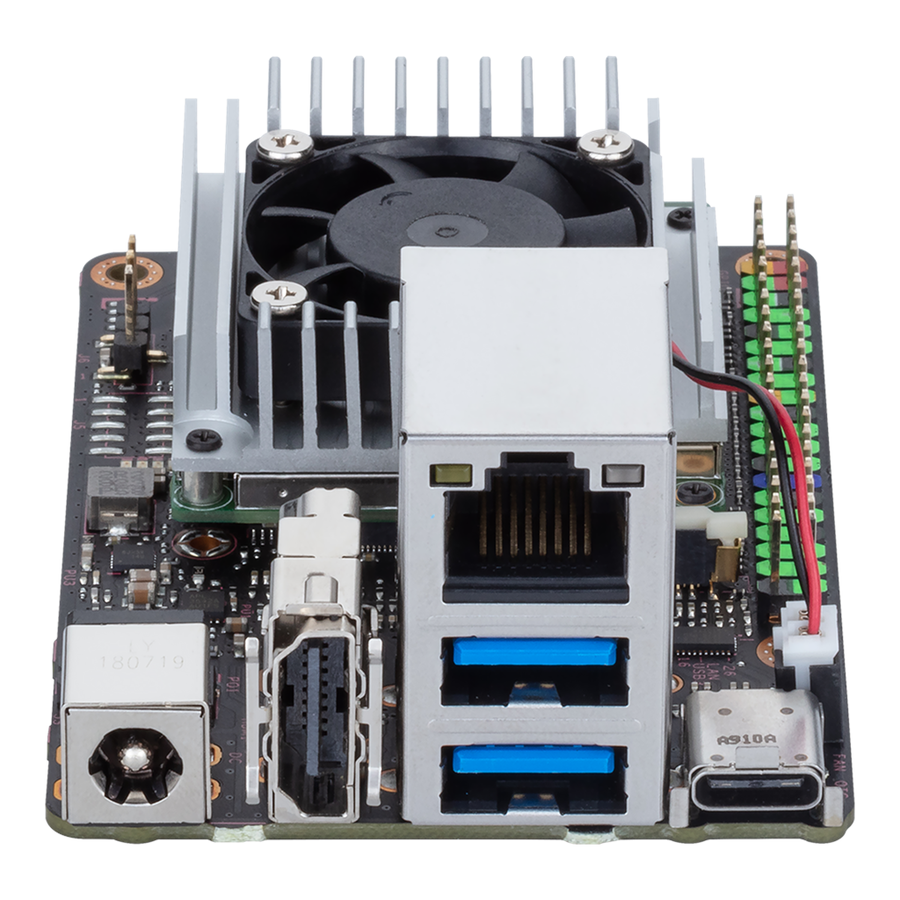

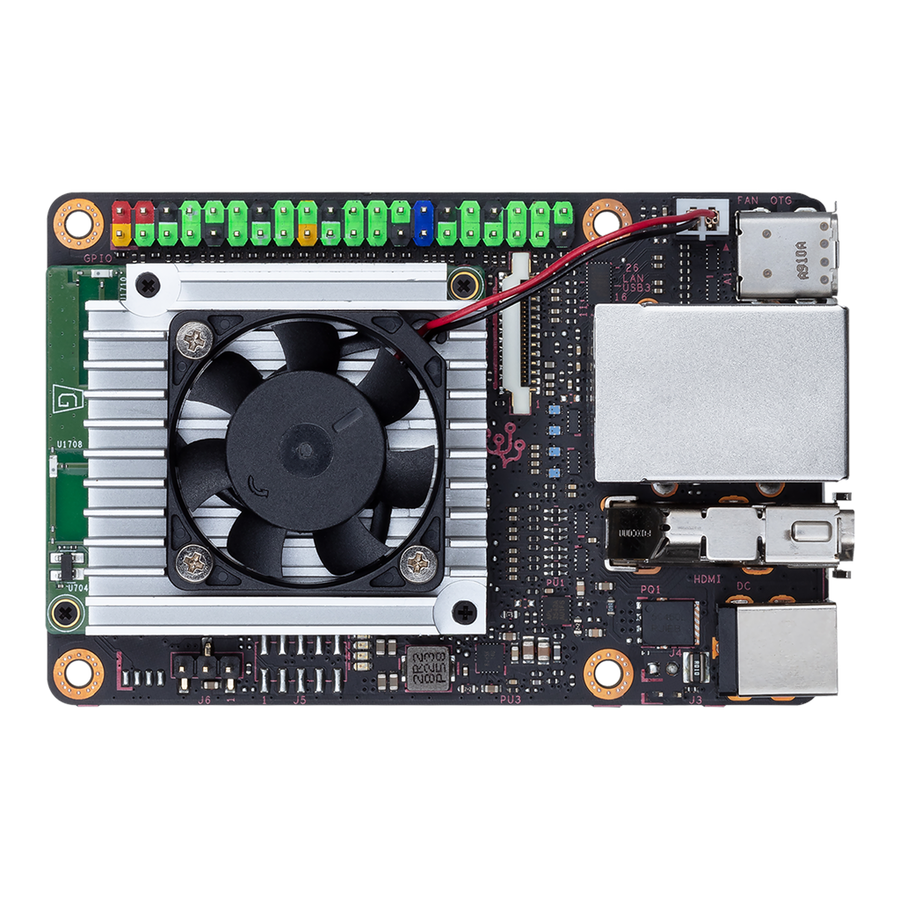

Asus Tinker Edge T

Asus Tinker Edge T

Designed for artificial intelligence applications, the Asus Tinker Edge T is a single board computer. There is the Asus Tinker Edge T, which reduces power consumption and increases processing efficiency, and Google TPU, a machine learning accelerator that facilitates smart applications. With the Asus Tinker Edge T optimized for Tensorflow Lite, it is very easy and fast to realize your image processing and machine learning projects.

Technicial Specifications:

• SoC: NXP i.MX 8M
• CPU: LPDDR4 1GB
• GPU: GC7000 Lite
• NN Processor: Google Edge TPU ML accelerator coprocessor
• Display: 1 x HDMI™ with CEC hardware ready, 1 x 22-pin MIPI DSI (4 lane)
• Memory Size: Dual-CH LPDDR4 1GB

• Storage: 8GB eMMC, Micro SD(TF) card slot (push/pull)

• Connectivity: 1 x RTL8211F-CG Gb LAN, 1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 4.2

• USB: 3 x USB 3.2 Gen1 Type-A ports, 1 x USB 3.2 Gen1 Type-C® OTG port

• Camera Interface: 2 x 24-pin MIPI CSI-2

• Internal Headers:

1 x 40-pin headers includes:
- 28 x GPIO pins
- 1 x SPI bus
- 2 x I2C bus
- 2 x UART
- 3 x PWM
- 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x GND
1 x Boot Mode Switch
1 x 2-pin Reset header
1 x 2-pin DC Fan header

• Power Connector(up to 45W): 1 x 11~19V DC Power Input Jack (5.5/2.5 mm)
• OS Support: Debian
• Dimension: 3.37 inch x 2.115 inch (8.55 cm x 5.4 cm)
