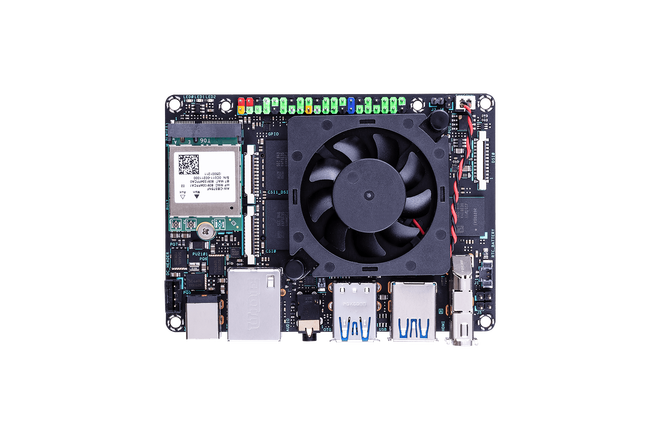

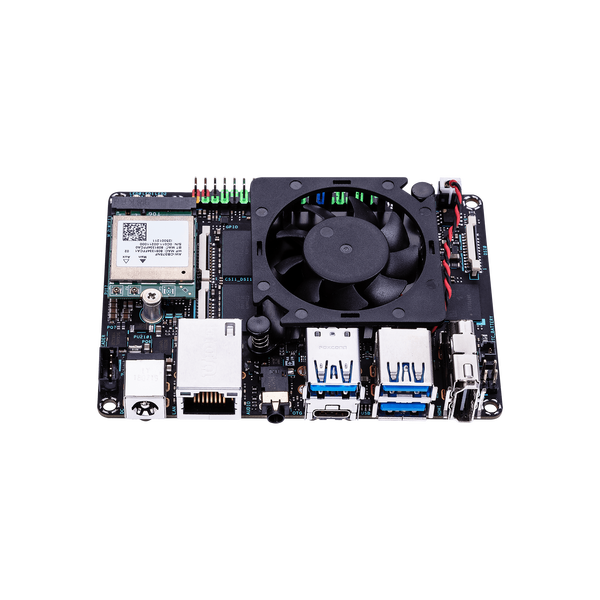

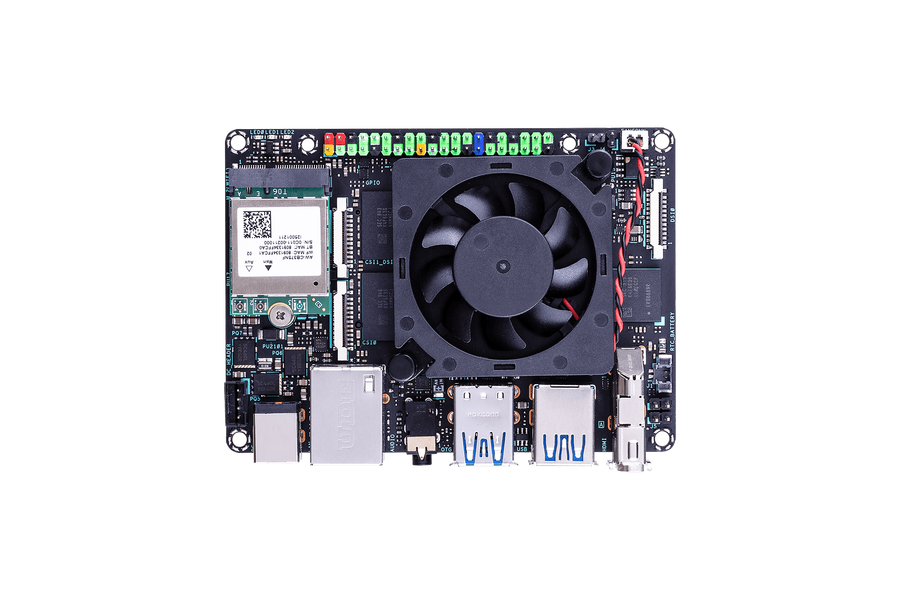

Asus Tinker Edge R

Asus Tinker Edge R

The Asus Tinker Edge with Arm® big.LITTLE ™ A72 + A53 Hexa-core SoC processor using ARM big.LITTLE technology stands out with its low power consumption. You can realize your machine learning projects with Rockchip NPU.

Technicial Specifications:

• SoC: Rockchip RK3399Pro
• CPU: Dual-core ARM® Cortex®-A72 @ 1.8 GHz, Quad-core ARM® Cortex®-A53 @ 1.4 GHz
• GPU: Arm® Mali™-T860 MP4 GPU @ 800 MHz
• NN Processor: Rockchip NPU
• Display: 1 x HDMI™ with CEC hardware ready, 1 x USB Type-C® (DP), 1 x 22-pin MIPI DSI (4 lane)
• Memory Size: Dual-CH LPDDR4 4GB (SYSTEM), LPDDR3 2GB (NPU)

• Storage: 16 GB eMMC, Micro SD(TF) card slot (push/pull)

• Connectivity: 1 x RTL8211F-CG GbE LAN, 1 x M.2 - 802.11 a/b/g/n/ac wireless & BT 5.0 (2T2R)

• Audio: 1 x 3.5mm audio jack (with Mic & plug-in detection), 1 x S/PDIF TX pin, 1 x PCM/I2S pins

• USB: 3 x USB 3.2 Gen1 Type-A ports, 1 x USB 3.2 Gen1 Type-C® OTG port

• Camera Interface: 1 x 22-pin MIPI CSI-2 (4 lane), 1 x 22-pin MIPI CSI-2/DSI (4 lane) *

• Expansions: 1 x Mini PCIe slot (Full-Length, nano-SIM socket, for 4G/LTE)

• Internal Headers:

1 x 40-pin headers includes:
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/I2S
- up to 1 x S/PDIF TX
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin Recovery header
1 x 2-pin Power-on header
1 x 2-pin Reset header
1 x 2-pin NPU UART header
1 x 2-pin DC Fan header
1 x 2-pin RTC Battery header

• Power Connector(up to65W): 1 x 11~19V DC Power Input Jack (5.5/2.5 mm), 1 x 11~19V 4-pin DC Power Input Header
• OS Support: Debian 9 / Android 9
• Dimension: Pico-ITX, 3.9 inch x 2.8 inch (100 X 72 mm)
