Two Stars of Maker World are Together Now!

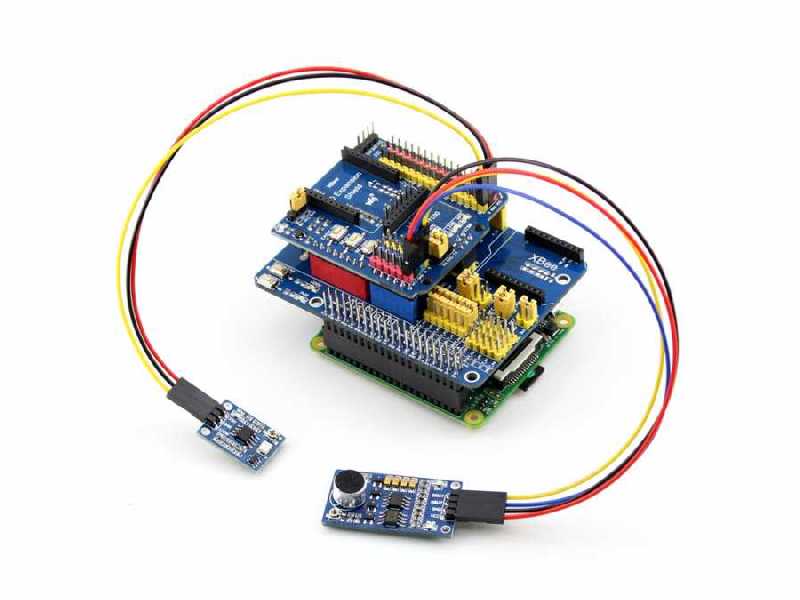

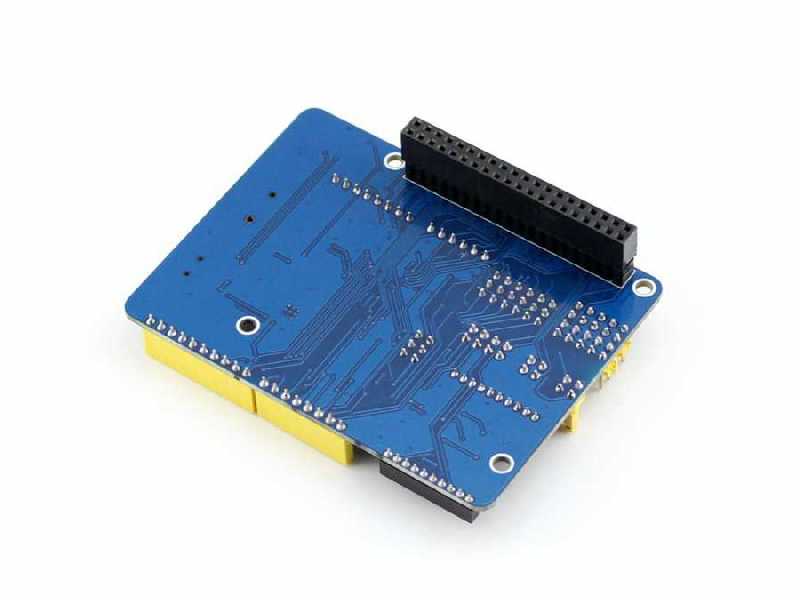

Both of Arduino and Raspberry Pi are quite improved and great systems. Through ARP1600 Board, this two platform is together now. With this board, Arduino Shields and hardware/software sources can be used with Raspberry Pi.

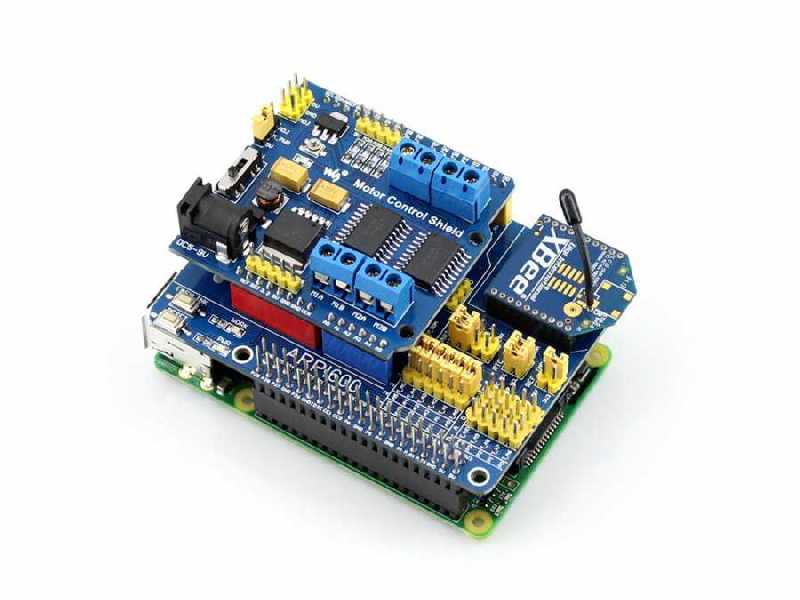

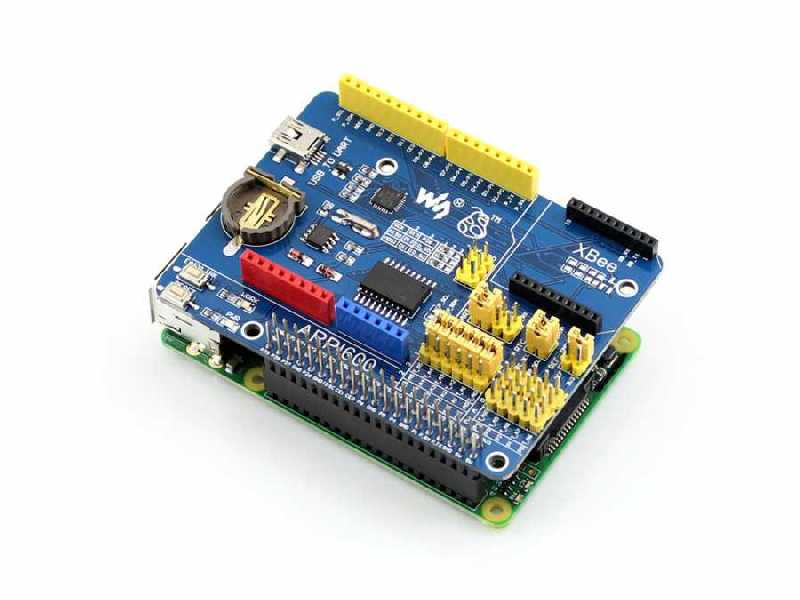

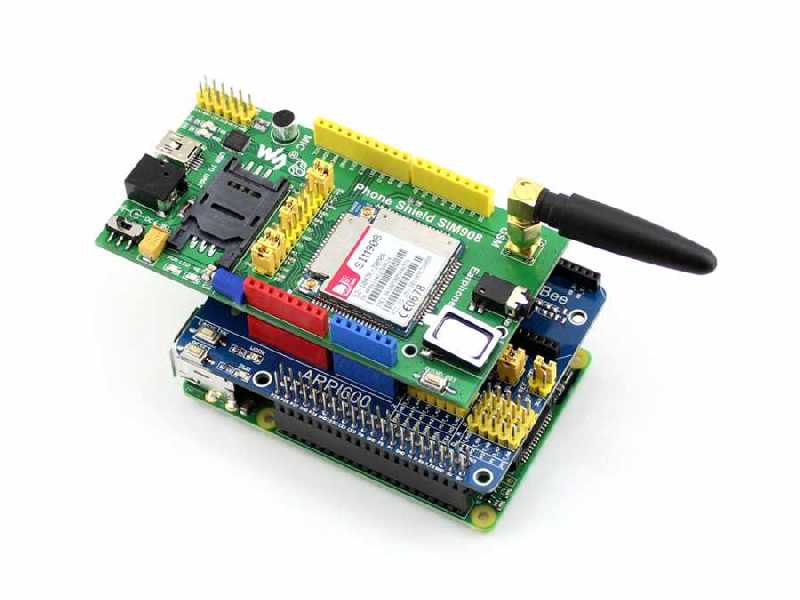

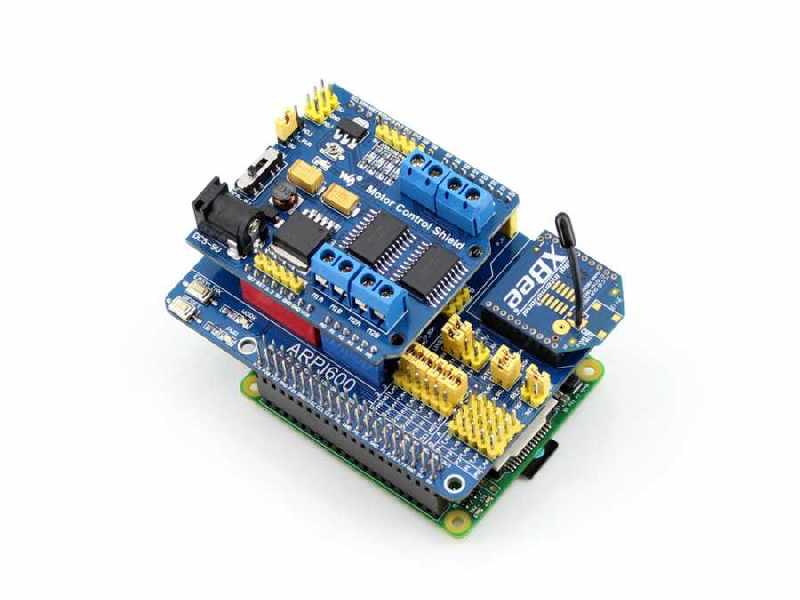

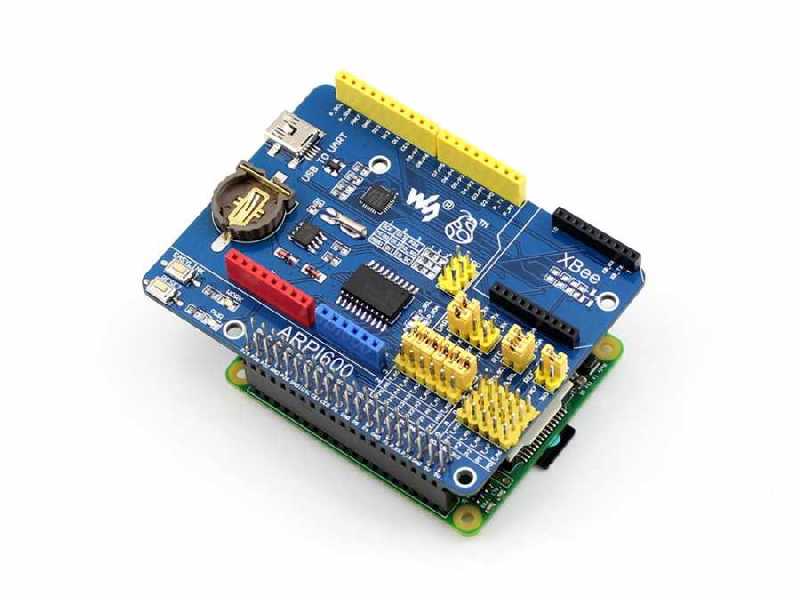

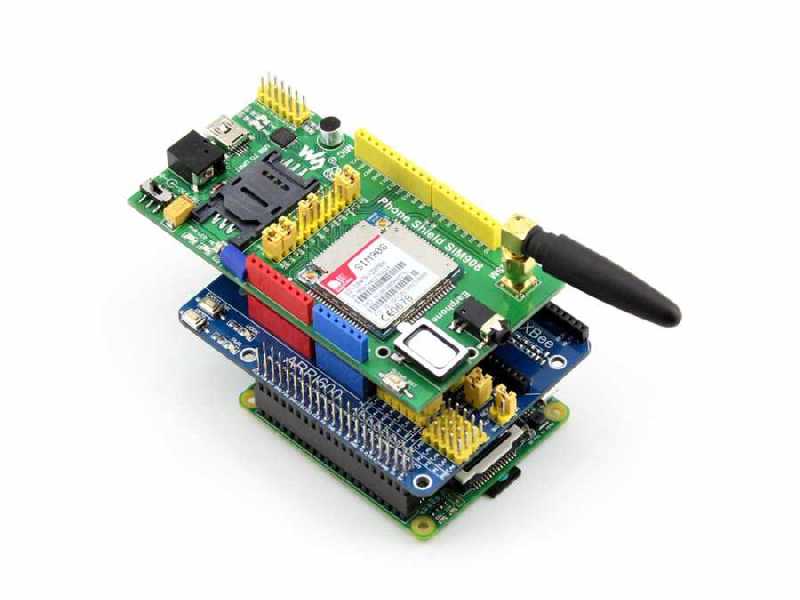

Board can be plugged to Raspberry Pi A+/B+/2/3 models via GPIO pins and you can use thousands Arduino Shields with Raspberry Pi without any other connection. Also, through XBee socket which is on board, you can provide XBee connection practically.
Note: Logic level of all pins is 3.3V. This situation should be considered while making compatible Shield choice.
Features:
- Compatible with Arduino UNO, Leonardo, easy to connect with various Ardunio Shields.

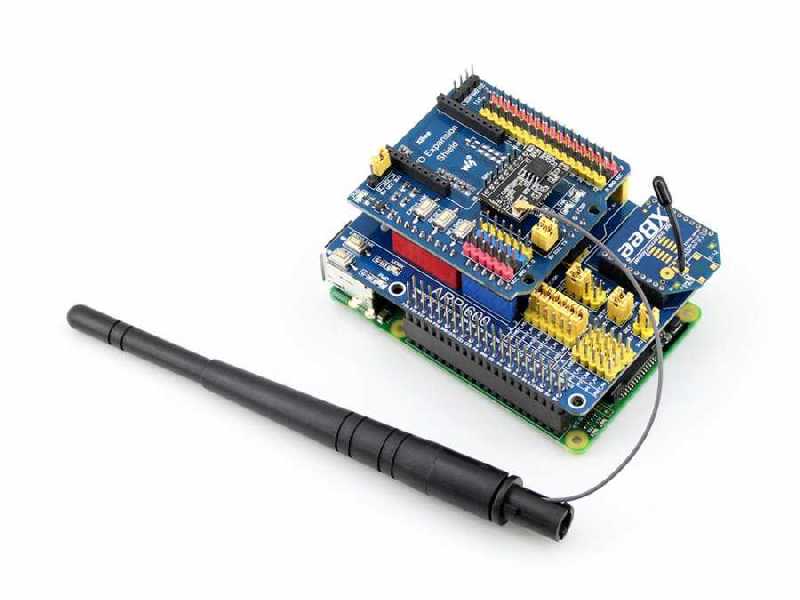

- XBee connector for connecting XBee modules
- Sensor Interface for Sensor connection
- Onboard USB TO UART for serial port debugging, also can be configured as XBee USB adapter
- Onboard ADC, 10 bit, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
- Onboard RTC

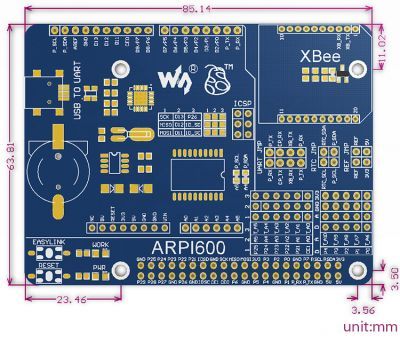

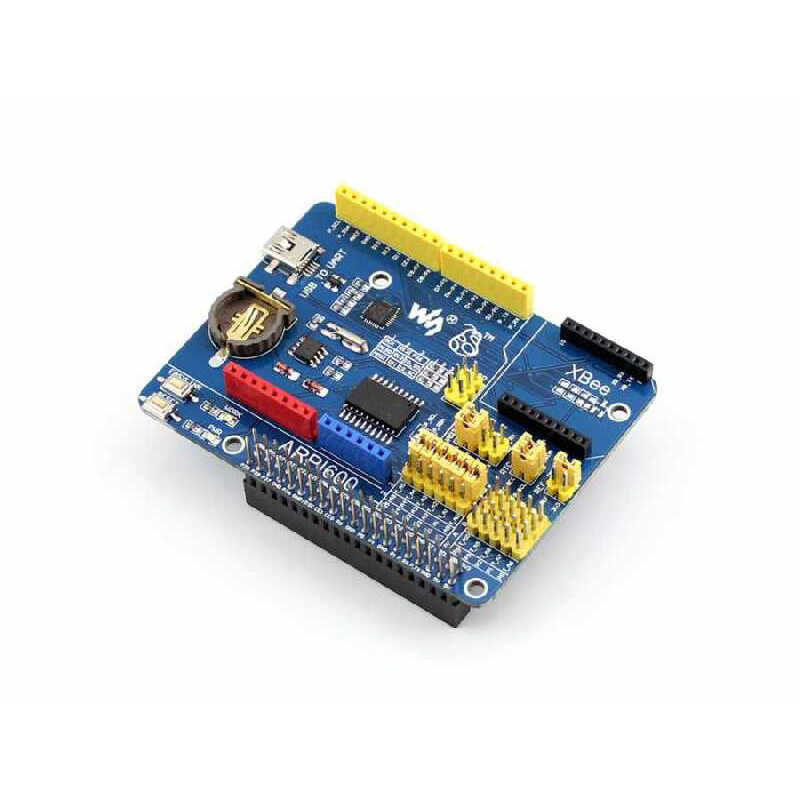

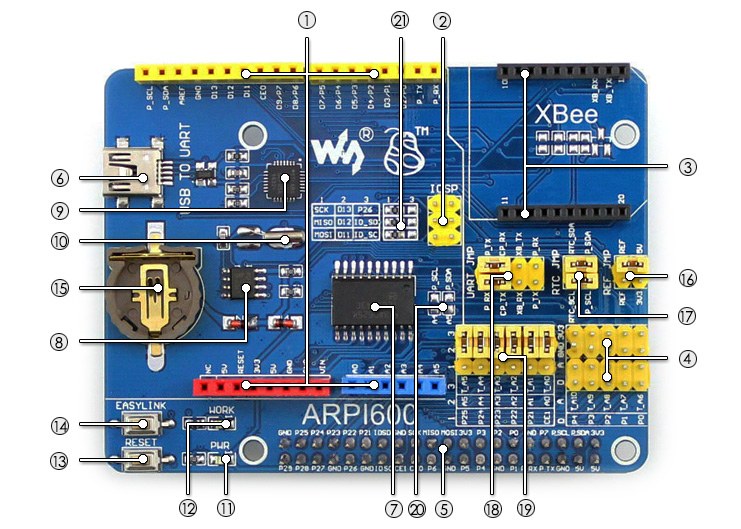

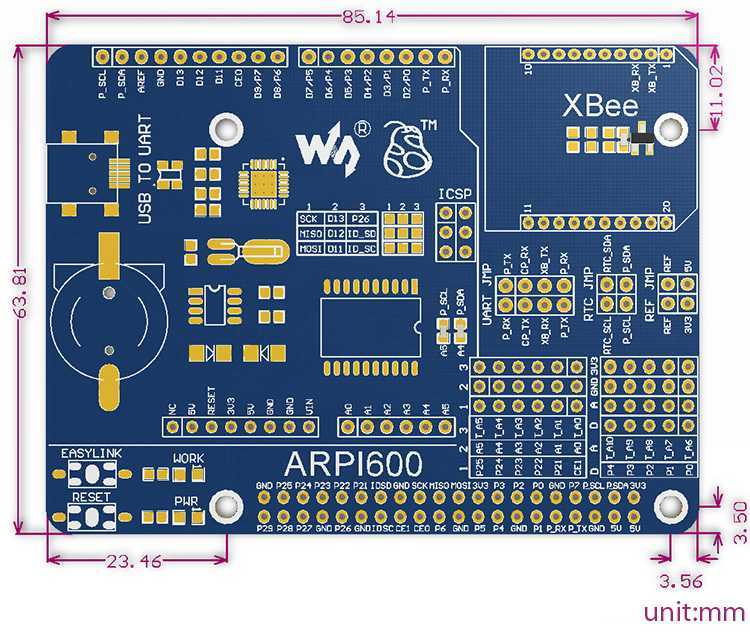

1-Arduino Connector: for connecting Arduino shields
2-ICSP interface: Arduino ICSP
3-XBee Connector: for connecting XBee communication modules
4-Sensor Interface: for connecting sensors
5-Raspberry Pi connector: for connecting Raspberry Pi
6-USB-UART converter
7-TLLC1543: AD Converter
8-PCF8563: RTC
9-CP2102
10-32.768KHz crystal: RTC crystal
11-Power Indicator
12-XBee State LED
13-XBee and Arduino Interface Reset Button
14-XBee EASYLINK button
15-RTC battery holder: for CR1220 button battery
16-TLC1543 referance voltage configuartion jumper
17-RTC jumper
18-UART Jumper
19-Arduino AD Configuration Jumper
20-Arduino I2C Confuguration Jumper
21-Arduino SPI Configuration Jumper
Package Contents:
- ARPI600 x 1

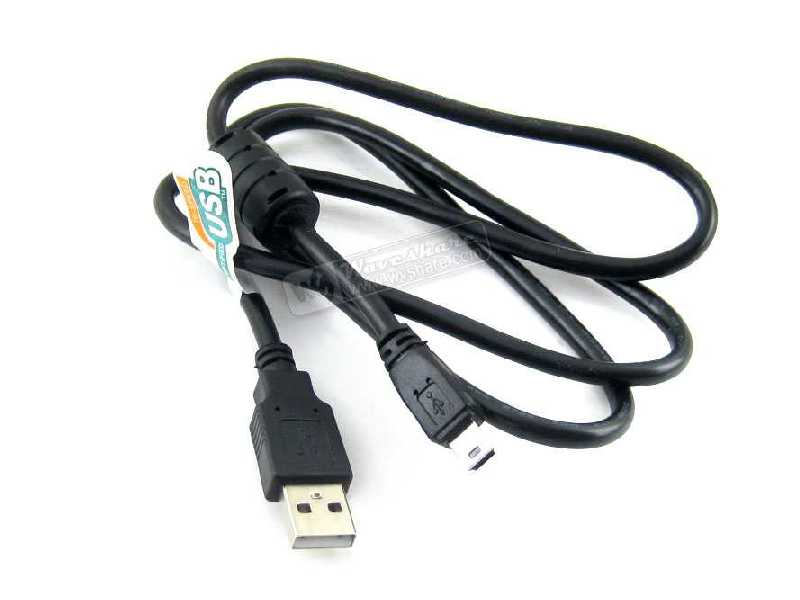

- Mini-USB cable

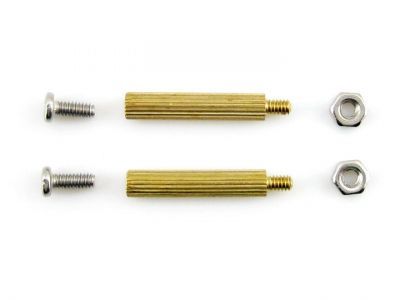

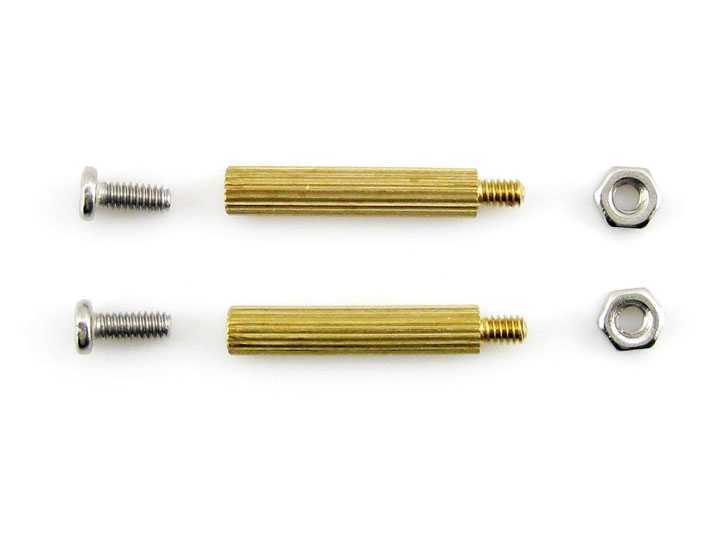

- RPi screw package x 1
