AMS1117 5V-3.3V Step-Down Power Supply Module

Product Code
:
20134
Brand / Origin
:
Robotistan
Quantity
:
10+
Without Vat
:
9.04 TL
Discount Price
:
6.78 TL
%25
Quantity:

-

+

Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

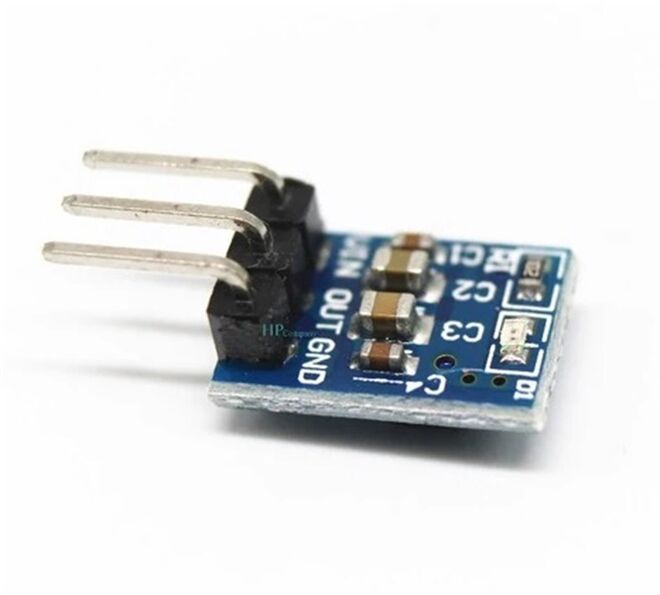

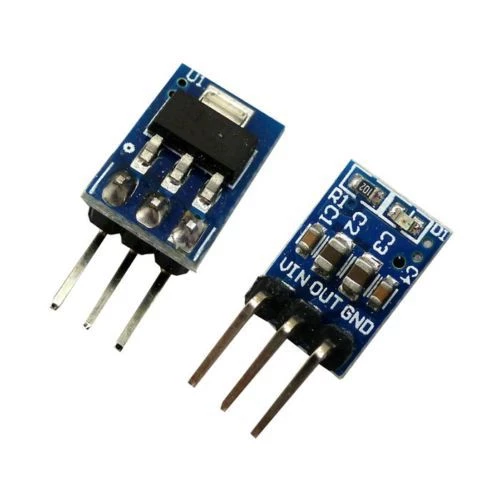

  • AMS1117 5V-3.3V Step-Down Power Supply Module

    It has been developed to create the 3.3V voltage you need in electronic circuits. It reduces the input voltages between 5V~(-1+1) to 3.3V. It has a maximum current capacity of 800mA and has a 3 Pin dip header structure. Suitable for use on breadboard. It does not require an external circuit element.








    Step-Down Power Supply Module Technical Specifications:

    • Input Voltage: 5V~(-1~+1)
    • Output Voltage: 3.3V-5V
    • Output Current: 800mA

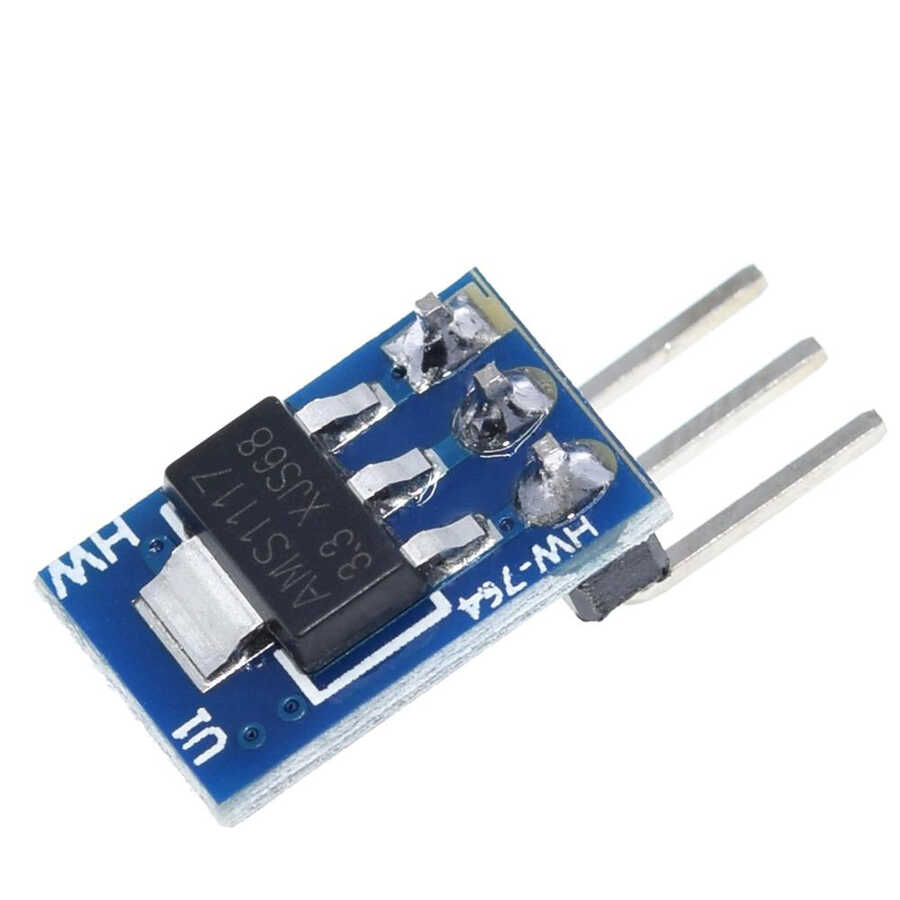

    • It has built-in AMS1117 chip.
    • Built-in power indicator that shows the power is on: Red LED
    • Weight: 15g
    • Type: DC/DC Converters
    • Efficiency: ≤93%
    • Line Adjustment Rate: 0.2% (maximum)
    • Load Regulation: 0.4% (maximum)
    • Operating Junction Temperature Range: -40 to 125 °C
    • Welding Temperature (25 seconds): 265 °C
    • Storage Temperature: - 65~150°C
    • Output Voltage: 3.267 to 3.333V (IOUT: 0 to 1A, VIN: 4.75V to 12V)
    • Line Adjustment (Maximum): 10mV (VIN :4.75V - 12V)
    • Load Regulation (Maximum): 15mV (VIN = 5V, IOUT: 0 - 1A)
    • Size: 8.6mm x 12.5mm



    Step-Down Power Supply Module Dimensions:






    Step-Down Power Supply Module Package Contents:

    • 1 x AMS1117-3.3 LDO 800MA DC 5V to 3.3V Step-Down Power Supply Module
