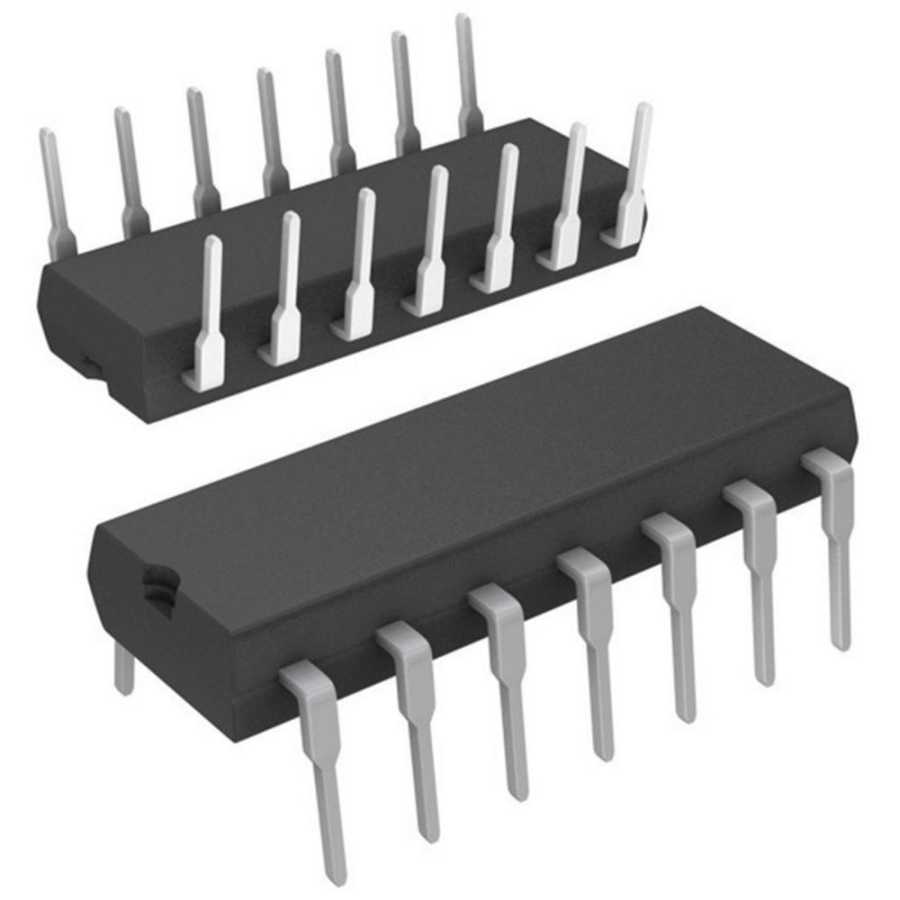

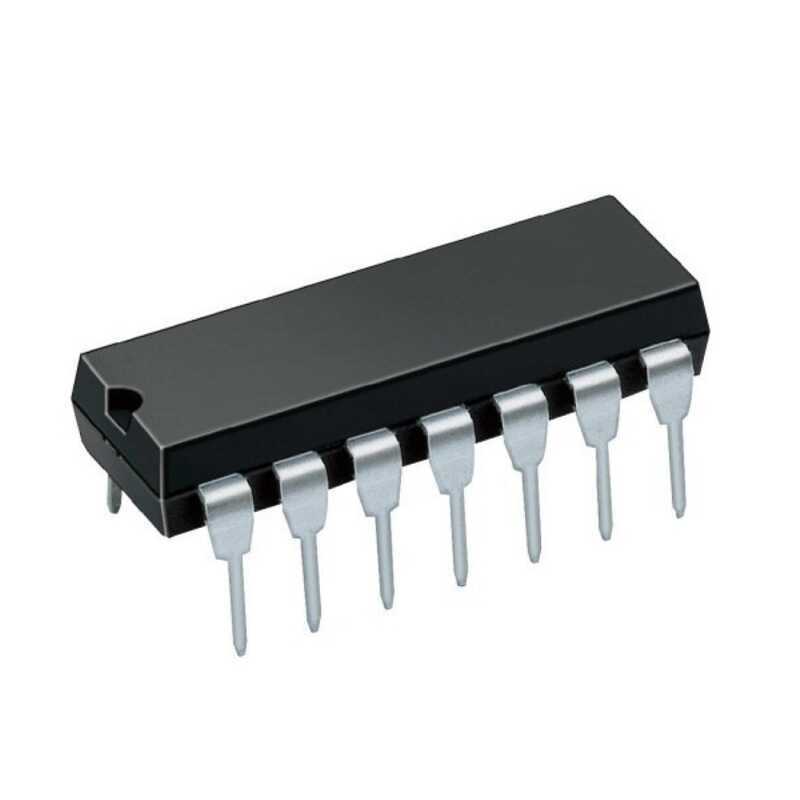

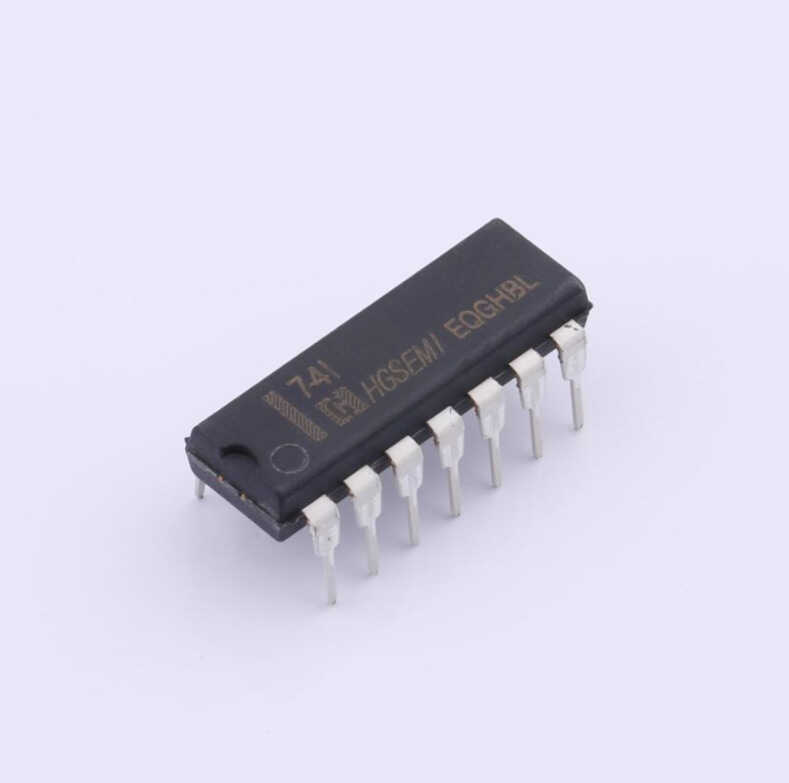

74HC08 IC

74HC08 IC DIP-14

The 74HC08 is a high-speed CMOS logic IC that contains four independent 2-input AND gates. With TTL-compatible inputs and outputs, this IC offers low power consumption and high switching speeds, making it a popular choice for digital circuits. As a member of the 74HC series, the 74HC08 provides reliable performance in digital control, timing, logic, and other system applications.

74HC08 IC DIP-14 Specifications:

• Logic type: Four 2-input AND gates

• Operating voltage: 2V – 6V

• Maximum output current: ±5.2 mA (V_CC=5V)

• Maximum input current: ±1 µA (at 25°C)

• Operating temperature range: -40°C to +85°C

• Package type: DIP-14 (Dual Inline Package)

• High-speed CMOS technology with low power consumption

Useful Documents:

• 74HC08 Datasheet
