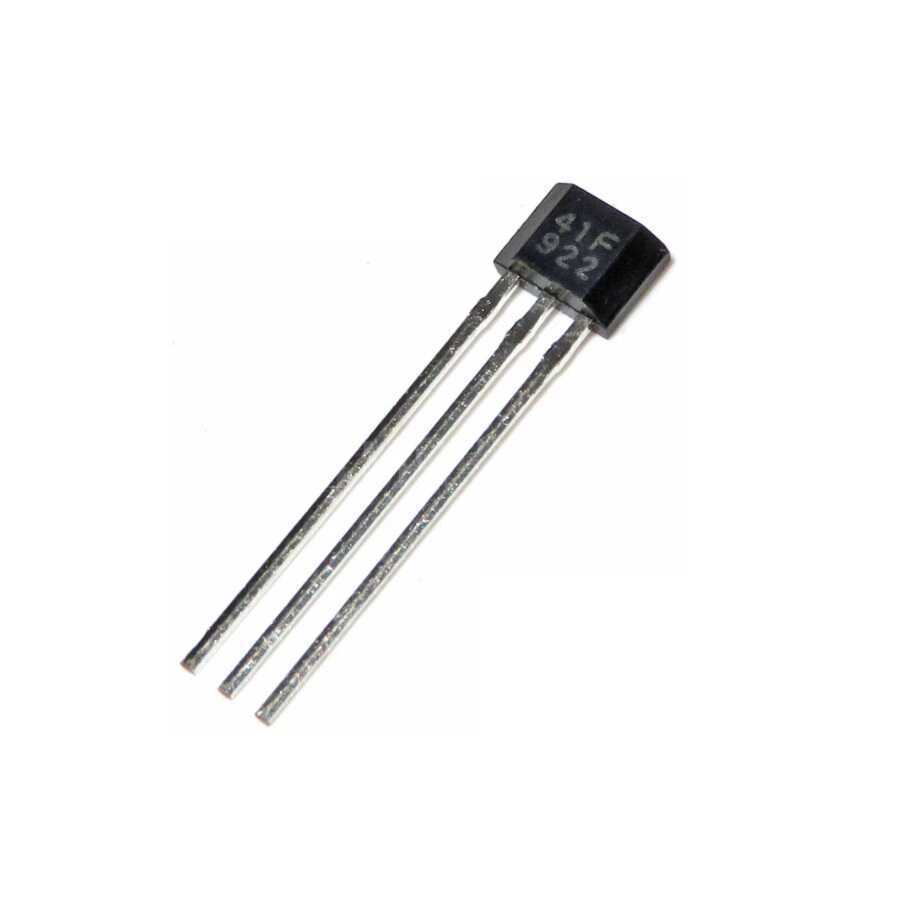

The 41F Hall Effect Sensor - TO-92S is a low-cost, compact sensor that generates a digital output by detecting magnetic fields. It is commonly used in applications such as brushless DC motor commutation, speed, and position sensing. The TO-92S flat package design ensures space efficiency on printed circuit boards and allows for easy installation.

Technical Specifications:

• Operating Voltage: 4.5 VDC – 24 VDC
• Operating Current: Maximum 10 mA
• Output Type: Open collector, maximum 20 mA current capacity
• Saturation Voltage (Vsat): 0.4 V (at 15 mA load)
• Output Leakage Current: Maximum 10 µA (at 24 VDC)
• Response Time:
• Rise Time: 0.5 – 1.5 µs
• Fall Time: 0.2 – 1.5 µs
• Magnetic Operating Point (Bop): 40 – 150 Gauss
• Magnetic Release Point (Brp): -150 – -40 Gauss
• Operating Temperature Range: -40°C to +150°C
• Storage Temperature Range: -40°C to +150°C
• ESD Resistance: ±3 kV (according to JEDEC JS-001 standard)

Key Features:

• Wide Voltage Range: Operates from 4.5 VDC to 24 VDC, providing flexibility in various applications.
• Low Power Consumption: Consumes a maximum of 10 mA, offering energy efficiency.
• High Temperature Resistance: Reliable performance up to 150°C.
• Compact Design: The TO-92S package is ideal for use in limited space applications.
• Bipolar Detection: Respond
