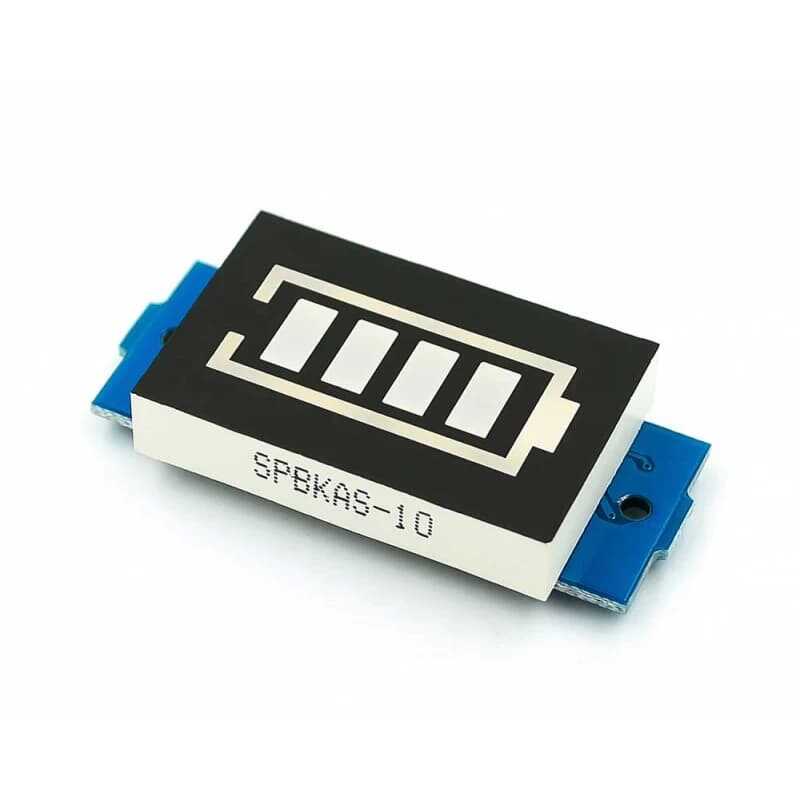

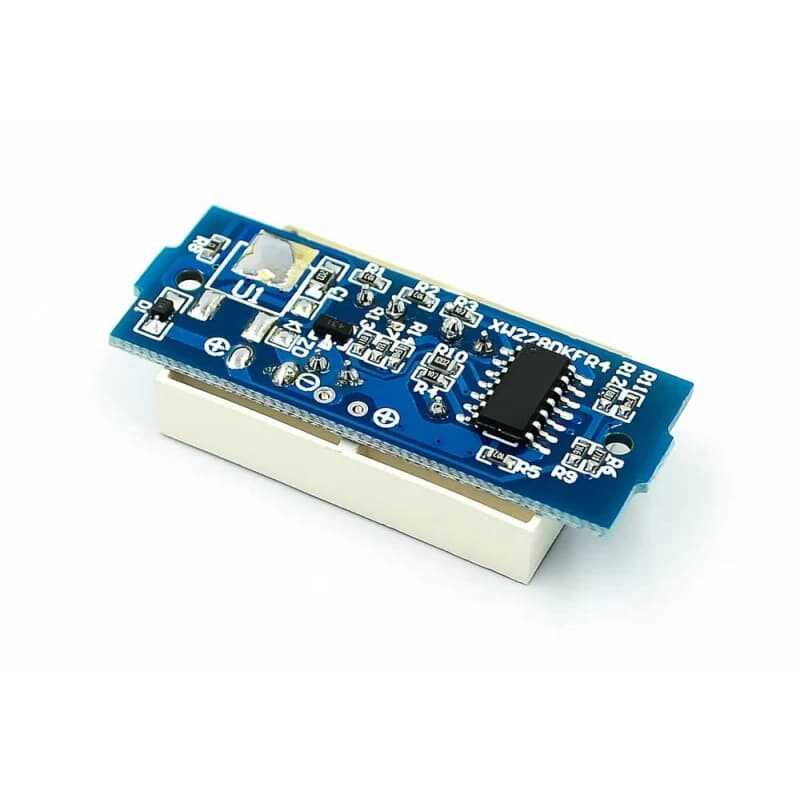

3S 18650 Li-Po Lithium Battery Capacity Display Module

Thanks to the Battery Capacity Indicator Module, you can instantly see the charge rate of your Li-Po Lithium batteries. It will save you time in your projects and external uses thanks to its ease of connection, simple and fast operation. To see the charge level of your battery, it will be enough to connect the "+ and -" poles of your battery to be equal to the "+ and -" poles on the module.


Indicator Meanings:

  • Only Red Frame Lights: Below 9.9V,
  • If 1 Bar Is Lit: Between 9.9V and 10.5V,
  • If 2 Bars Are On: Between 10.5V and 11.1V,
  • If 3 Bars Are On: Between 11.1V and 11.7V,
  • If 4 Bars Are On: It means over 11.7V.

3S 18650 Li-Po Lithium Battery Capacity Display Module Technical Specifications:

  • Operating Voltage: 3.7V/DC
  • Width: 20mm
  • Length: 44mm
  • Height: 9mm
