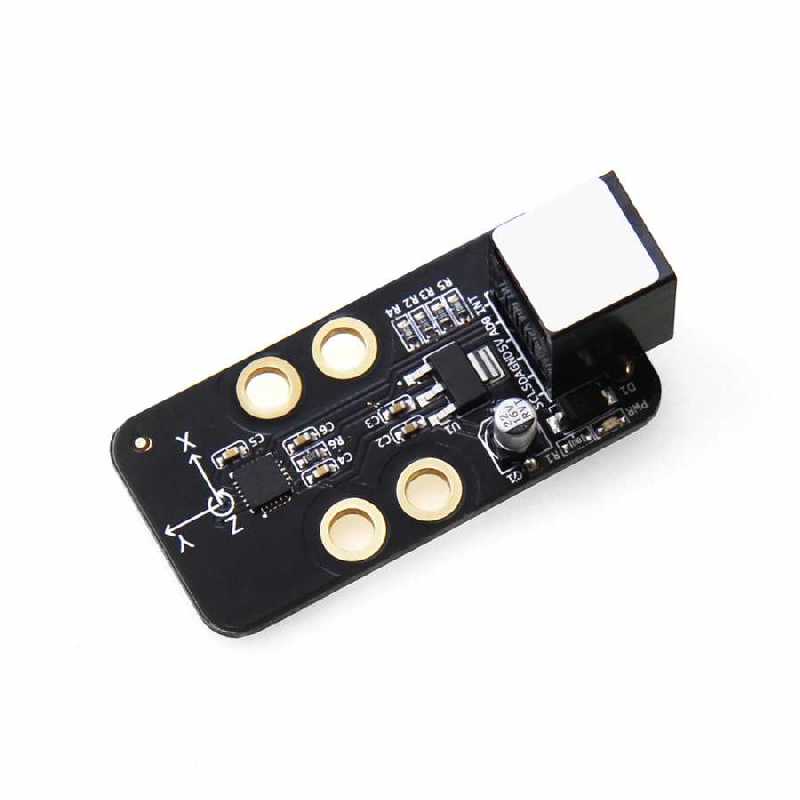

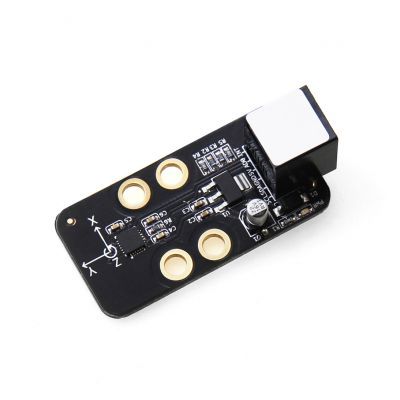

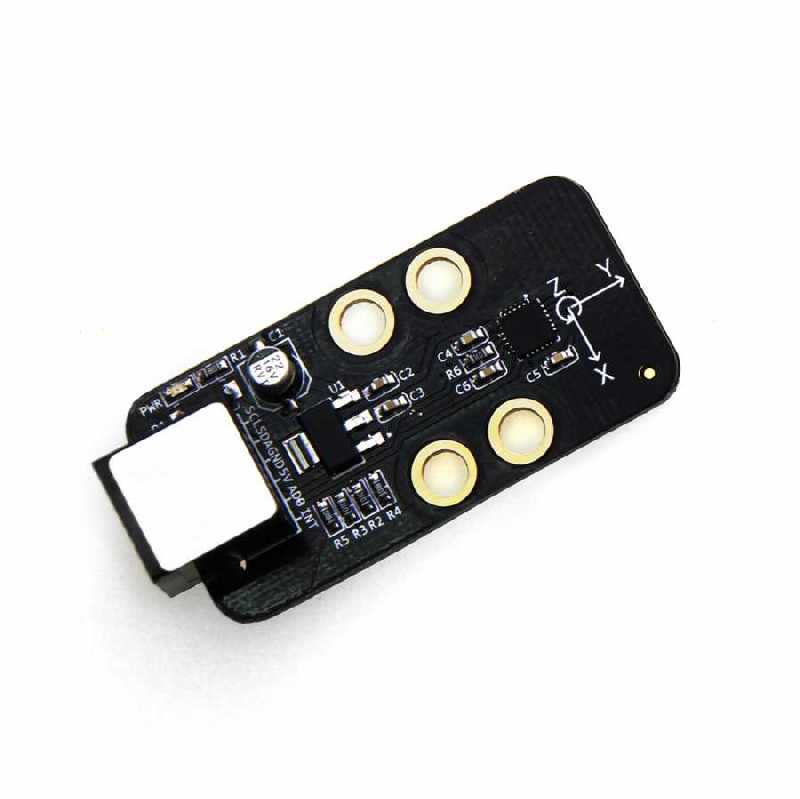

Me 3-axis accelerometer and gyro sensor board provides you to detect movement at your robot. Through on board MPU6050 IC, board can be used as 3-axis accelerometer and 3-axis gyroscope.
Features:

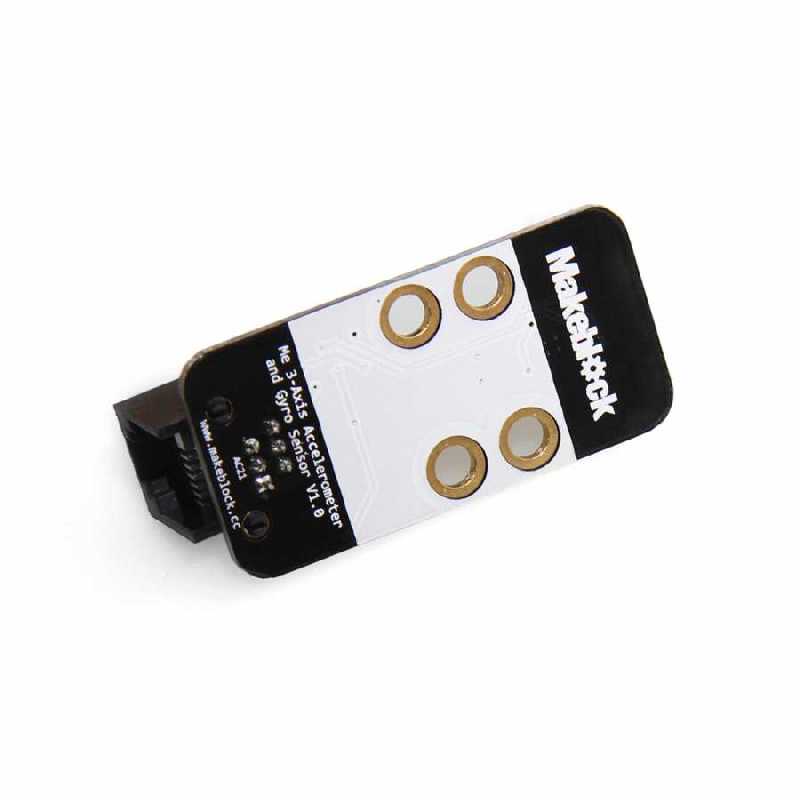

- White area of module is the reference area to contact metal beams
- Digital output of 6-axis or 9-axis synthetical operation data of such formats as rotation matrix, quaternion, and Euler angle
- 3-axis angular velocity sensor controlled measurement range: ±250, ±500, ±1000, ±2000°/s (dps)
- 3-axis accelerometer controlled measurement range: ±2g, ±4g, ±8g, and ±16g
- Digital Motion Processing (DMP) engine is provided to reduce the load of complex motion integration, sensor synchronization, and posture detection
- Eliminate the axial sensitivity between accelerometer and gyro; reduce the influence of settings and drifting of sensor
- Embedded calibration algorithm of operation time deviation and magnetic force sensor
- Anti-reverse protection – connecting the power supply inversely will not damage IC
- Support mBlock GUI programming, and applicable to users of all ages
- Adopt RJ25 port for easy connection
- Provide pin-type of port to support most development boards including Arduino series
- Dimensions: 24x48x32 mm
- Operation Voltage : 5V
