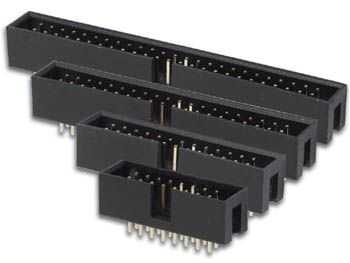

26-Pin IDC Male Connector

26-Pin IDC Male Connector

The 26-pin IDC (Insulation Displacement Connector) male connector is a reliable solution for data transmission and power connections. It is designed for use with ribbon cables and is commonly preferred in electronics projects, communication panels, industrial automation systems, and circuit board interconnections.

What Is an IDC Connector?

IDC connectors are designed to connect to cables without stripping the insulation. They are compatible with ribbon cables and available in male and female versions. These connectors simplify parallel data transmission in electronic systems.

Applications:

• Interfacing with Raspberry Pi and other development boards
• Industrial control and automation systems
• Programmers and interface panels
• Bus communication lines

Technical Specifications:

• Pin Count: 26
• Connector Type: IDC Male
• Pin Pitch: 2.54 mm
• Compatibility: 26-pin ribbon cable and IDC female connectors
• Mounting Type: Through-hole (PCB solderable)
