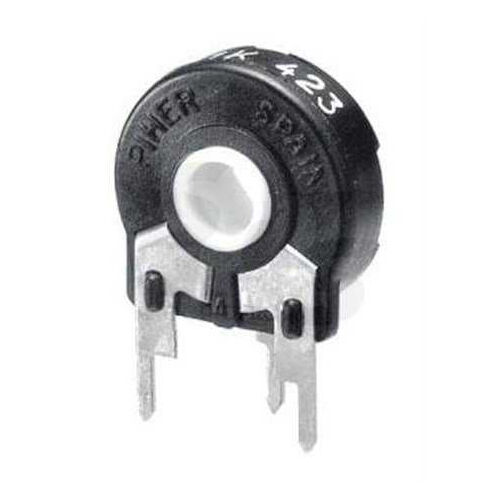

22K Trimpot (Vertical) - PT10

Product Code
:
17750
Brand / Origin
:
Robotistan
Quantity
:
10+
Without Vat
:
1.06 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3.00 pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Trimpots, voltage divider and contrast adjustment circuits are used in circuits which need to be adjusted precisely and resistance adjustment is not required.

    Technical specifications:

    • Resistance Value: 22K
    • Trimpot Type: Vertical
    • Resistance Change: Linear
    • Total Resistance Tolerance:  ±20%
    • Rated Power: 0.15W(50C)
    • Max Operating Voltage: 200V DC
    • Rotation of Noise(TThe murmur will appear when shaft turn from
      terminal 1 to terminal 3 by 30 rounds/minute
      equably speed): ≤47mV
    • Electrical Rotation angle: 220°±20°
    • Rotation torque (Rotational torque when turn the shaft :without special provision, rotational speed is 60°/s in ambient temperature 5-35°C ): 0.3-2.0Ncm
    • Stop torque (The force that shaft transfer from terminal 1 to stop point or terminal 3 to stop point after 10 seconds until be break ):  >5Ncm
    • Rotation life: 10000 Rot.


    Technical Drawing:



    Technical Documents:
