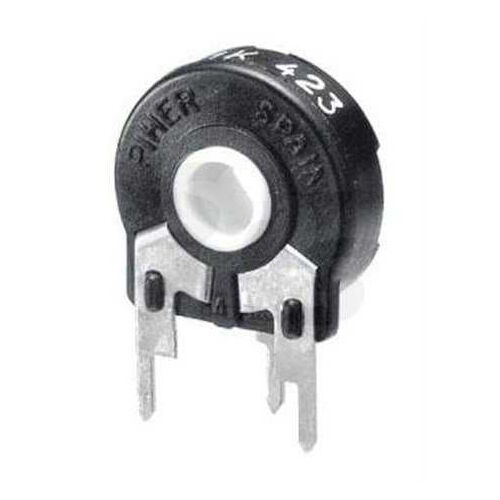

100K Trimpot (Vertical) - PT10

Product Code
Brand / Origin
Without Vat
5.02 TL



Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Trimpots, voltage divider and contrast adjustment circuits are used in circuits which need to be adjusted precisely and resistance adjustment is not required.

    Technical specifications:

    • Resistance Value:100K
    • Trimpot Type: Vertical
    • Resistance Change: Linear
    • Total Resistance Tolerance:  ±20%
    • Rated Power: 0.15W(50C)
    • Max Operating Voltage: 200V DC
    • Rotation of Noise(TThe murmur will appear when shaft turn from
      terminal 1 to terminal 3 by 30 rounds/minute
      equably speed): ≤47mV
    • Electrical Rotation angle: 220°±20°
    • Rotation torque (Rotational torque when turn the shaft :without special provision, rotational speed is 60°/s in ambient temperature 5-35°C ): 0.3-2.0Ncm
    • Stop torque (The force that shaft transfer from terminal 1 to stop point or terminal 3 to stop point after 10 seconds until be break ):  >5Ncm
    • Rotation life: 10000 Rot.

    Technical Drawing:

    Technical Documents:
