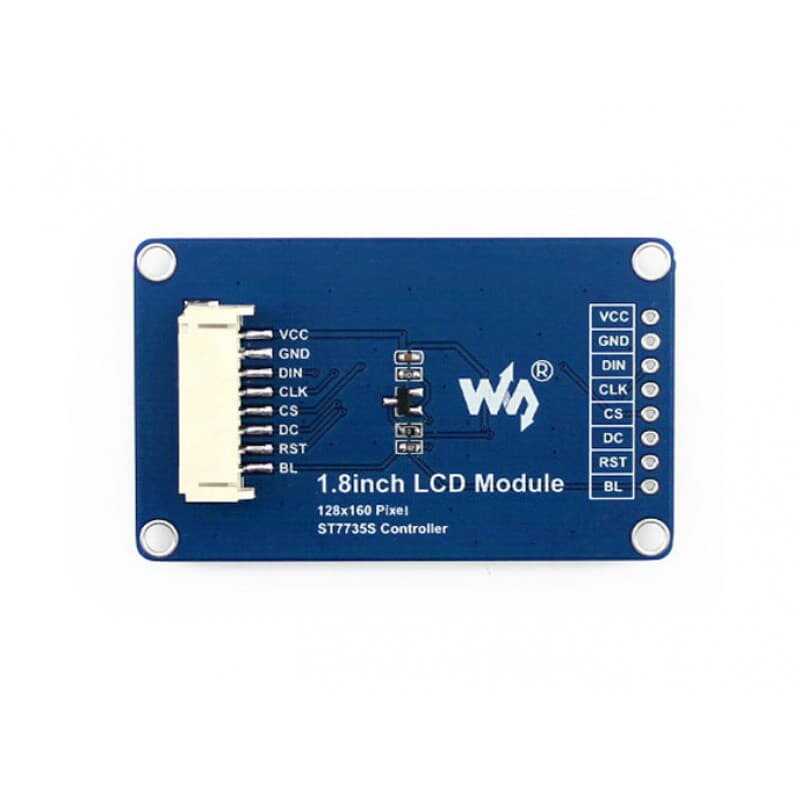

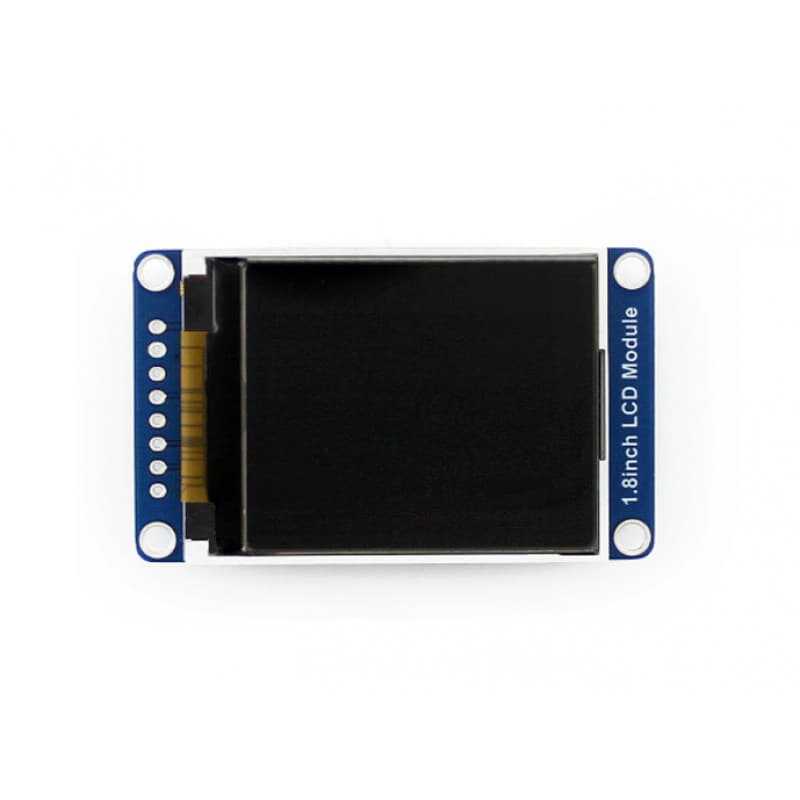

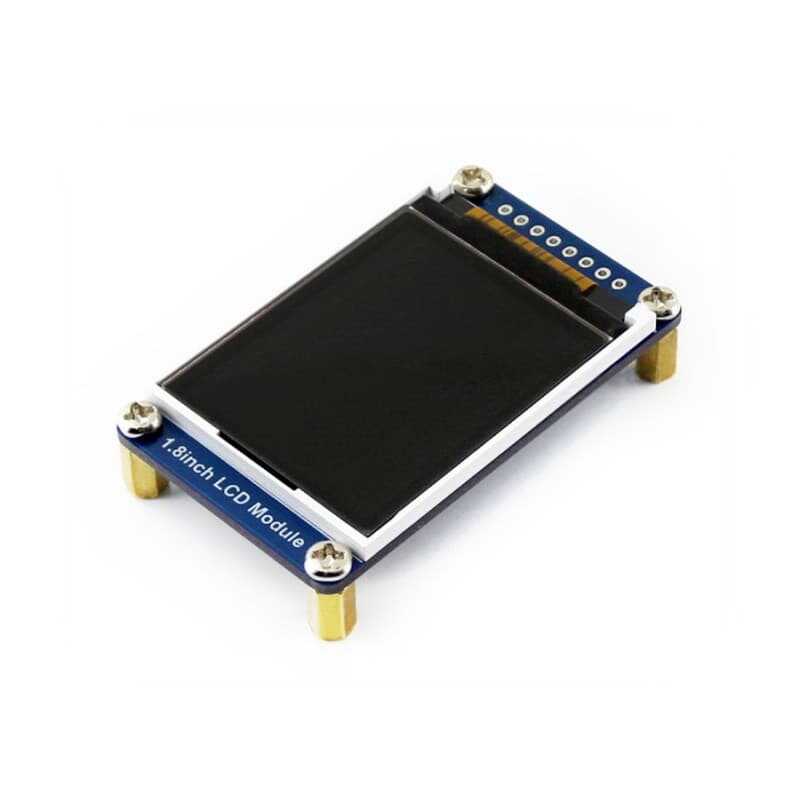

128x160, General 1.8 inch LCD display Module

128x160, General 1.8 inch LCD display Module

This small screen is one of the best ways to add a small, colorful and bright screen to any project. 1.8 Inch TFT LCD Module can be used with any microcontroller since it uses 4-wire SPI for communication and has its own pixel addressable frame buffer. It can even be used with low memory and few pins! The TFT driver (ST7735R) can display full 18-bit color (262,144 tones). The 1.8 Inch SPI 128×160 TFT LCD Display Module always comes with the same driver chip, so you don't have to worry about your code not working from one to the other. Also in a small space, a microSD card holder is built in, so you can easily load full color bitmaps from a FAT16/FAT32 formatted microSD card.

1.8 inch LCD display Module Technical Specifications:

• It has 1.8 inch serial SPI color display module.

• Display color: RGB, 65K colors

• Backlight: LED

• Working voltage: 3.3V

• Resolution: 128x160 SPI interface, requires minimum GPIO for control.

• The LCD has a wide viewing angle and its contrast is also appropriate.

• It supports analog and hardware SPI.

• It has a quality screen.
