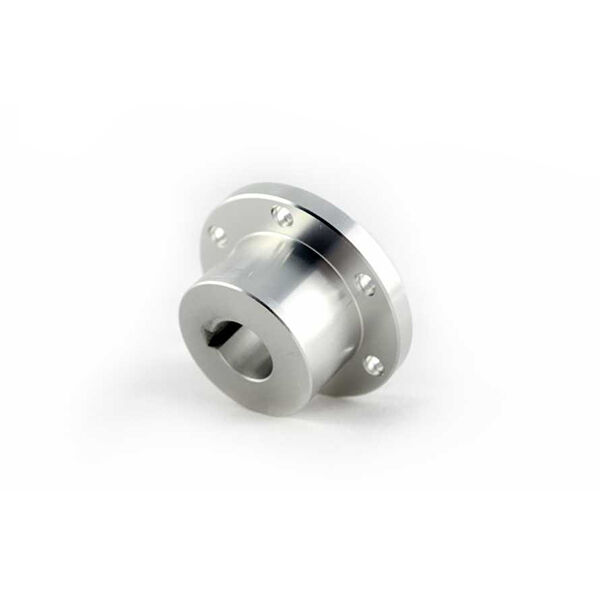

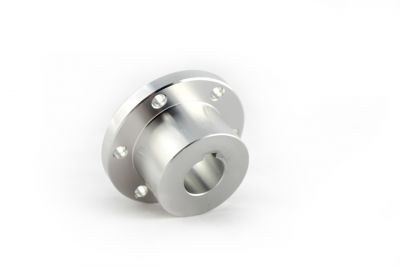

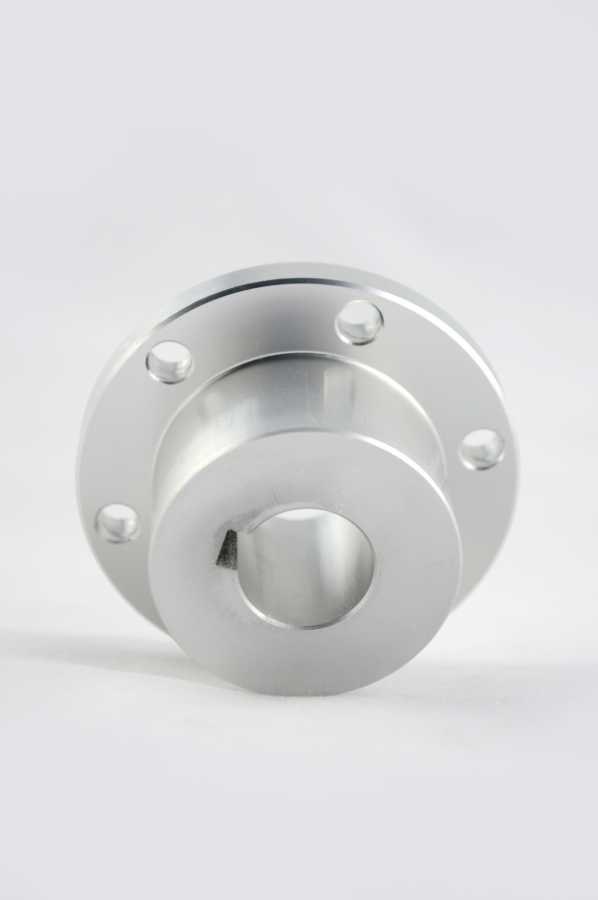

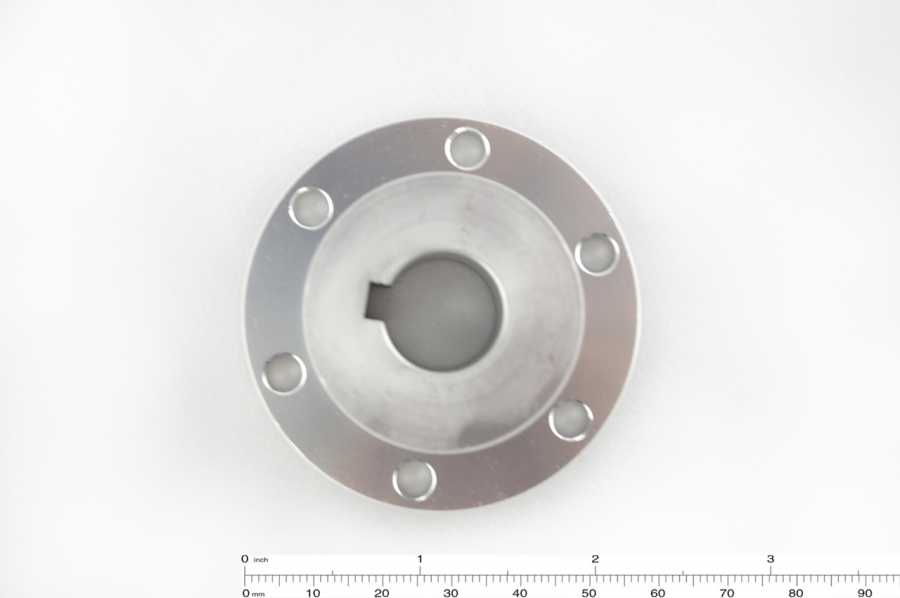

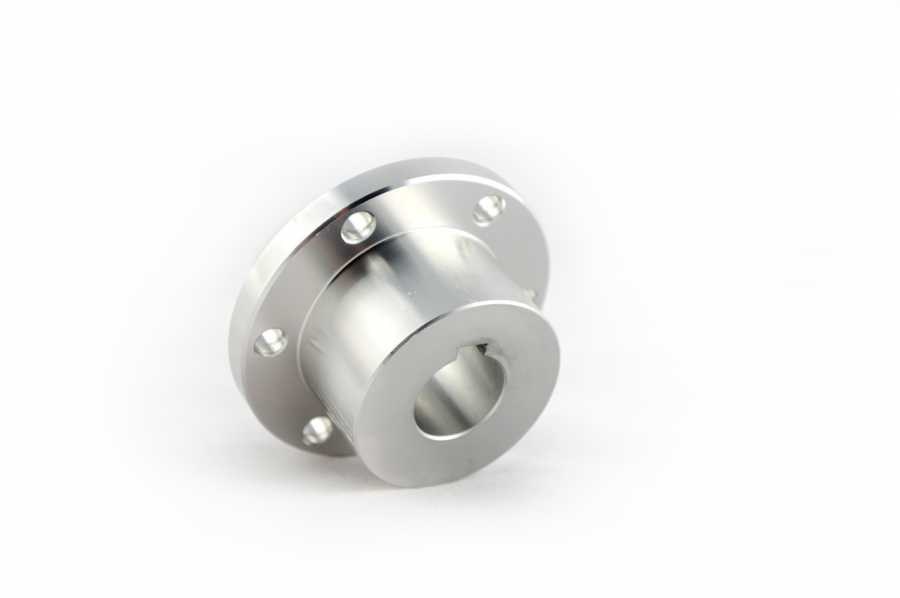

16mm Key Hub 18026

These high quality universal Aluminum hubs are key-locked and loctited to the motor shaft. They are designed to connect a motor and a wheel. There is a groove of key locked for securing a motor to the hub.We design, produce and market the key-locked hubs, we also customize the difference size for you to meet your needs and it can be start at a very low order quantity.

Key Features:

• Material: Aluminum-alloy

• Outside diameter: 57mm

• Inside diameter: 16mm

• Net weight: 82g

• Sold in individually



Download PDF Files:

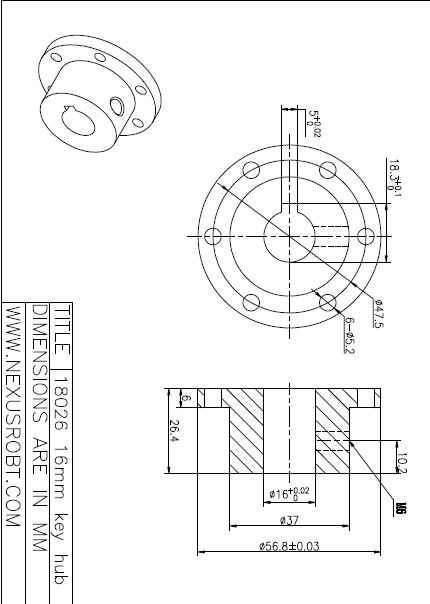

• 16mm Key Hub Layout Print 18026
