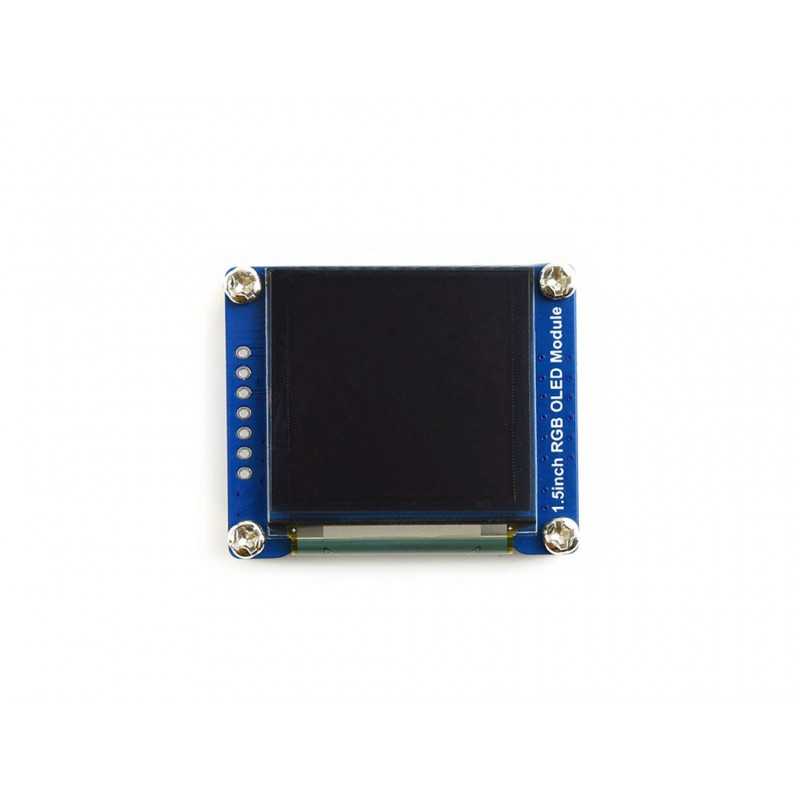

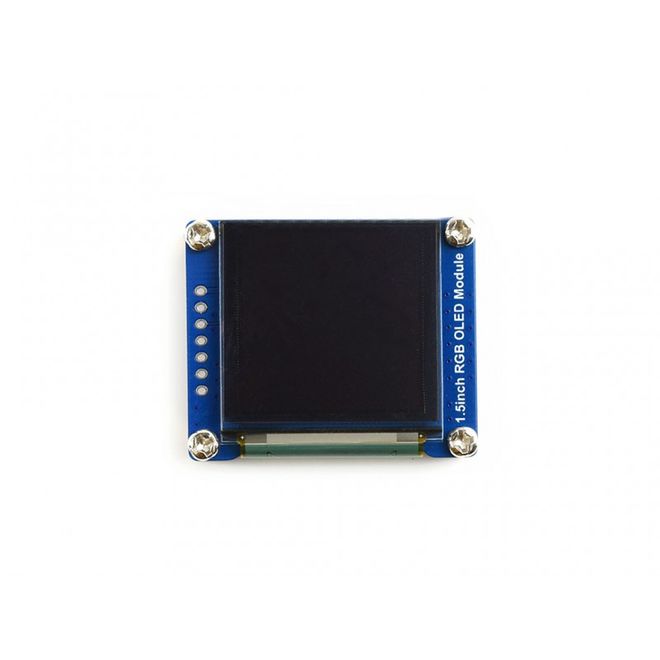

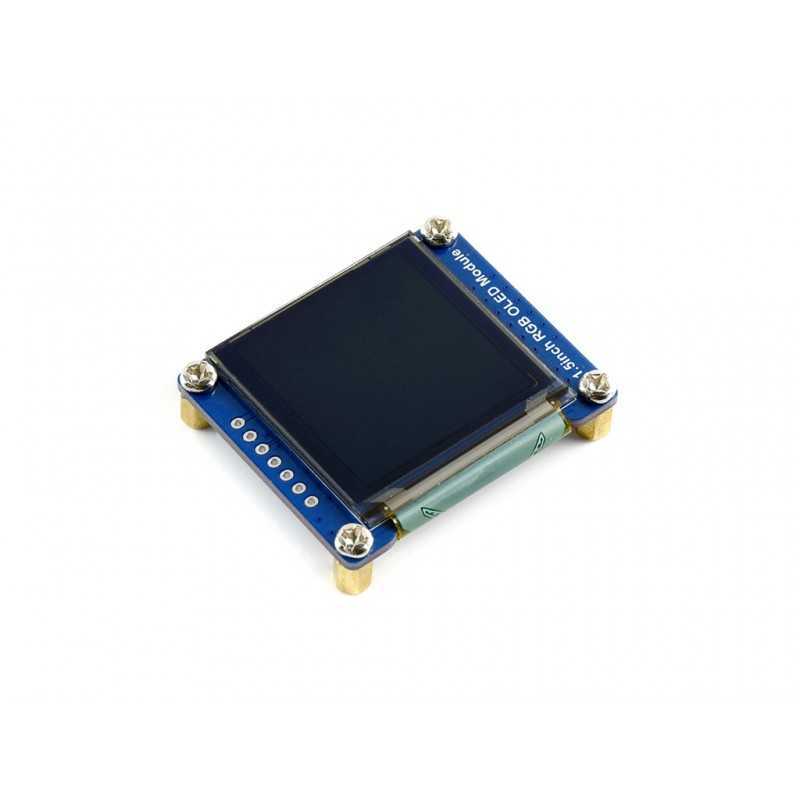

  • This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.

    Features:

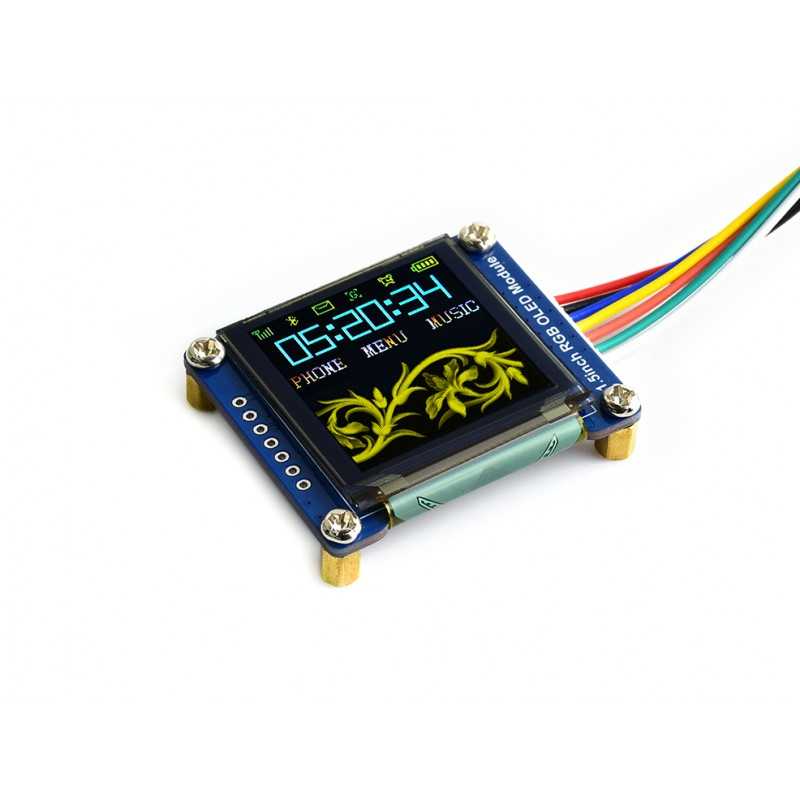

    • 128x128 high resolution, 65K colors, clearly displays colorful images
    • Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

    Specifications:

    • Driver: SSD1351
    • Interface: 4-wire SPI, 3-wire SPI
    • Display color: RGB, 65K colors
    • Resolution: 128x128
    • Viewing angle: >160°
    • Operating voltage: 3.3V / 5V
    • Dimension: 44.5 x 37 (mm)

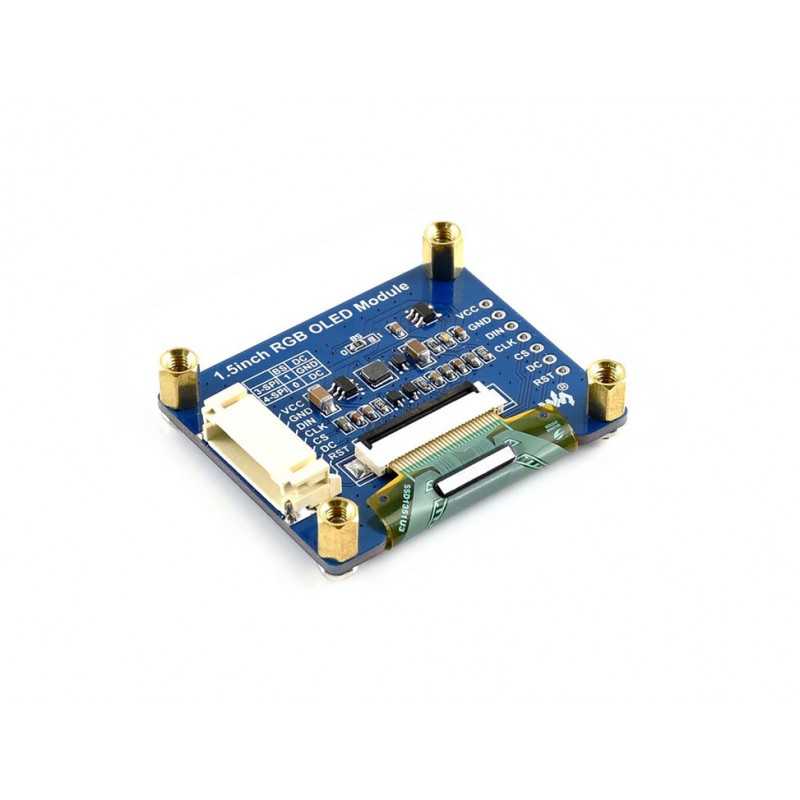

    Interface:

    SYMBOLDESCRIPTION
    VCCPower (3.3~5V input)
    GNDGround
    DINData input
    CLKClock data input
    CSChip selection, low active
    DC4-wire SPI: Data/Command selection (high for data, low for command)
    3-wire SPI: Connects to GND, keeps low
    RSTReset, low active

    There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI:

     BSDC
    4-wire SPI0DC
    3-wire SPI1Connects to GND

    Dimensions:

    1.5inch RGB OLED Module dimensions

    Documents:



    PACKAGE CONTENT:

    1-1.5inch RGB OLED Module x1
    2-PH2.0 7Pin x1
