It has a 1000 RPM lap number at 12 V voltage. Motor shaft output is 6mm D shaft. The engine draws approximately 240mA current at idle. The stall torque is 6 kg / cm.

These motors can start rotating at a low voltage of 1V, but the recommended operating voltage is 12V.

You can fix the engine as desired with the 6 M3 screw mounts on the front of the engine. You can also use 37D Metal Motor Grippers for fastening. These holders are fully compatible with motors.

Technical specifications:

  • Dimensions: 37Dx52L
  • Weight: 198 gr
  • Shaft Shaft Diameter: 6mm
  • Shaft Length: 17mm
  • Speed (12V): 1000 Rpm
  • Idle Current (12V): 240 mA
  • Strain Current (12V): 9 A
  • Strain Torque (12V): 7.5 kg / cm
Features
Gearbox Type
Metal Gearbox
Encoder
w/o Encoder
Motor Type
37mm
Shaft Diameter
6mm
Speed (RPM)
501-1000 Rpm
Voltaj Aralığı
12V
18090

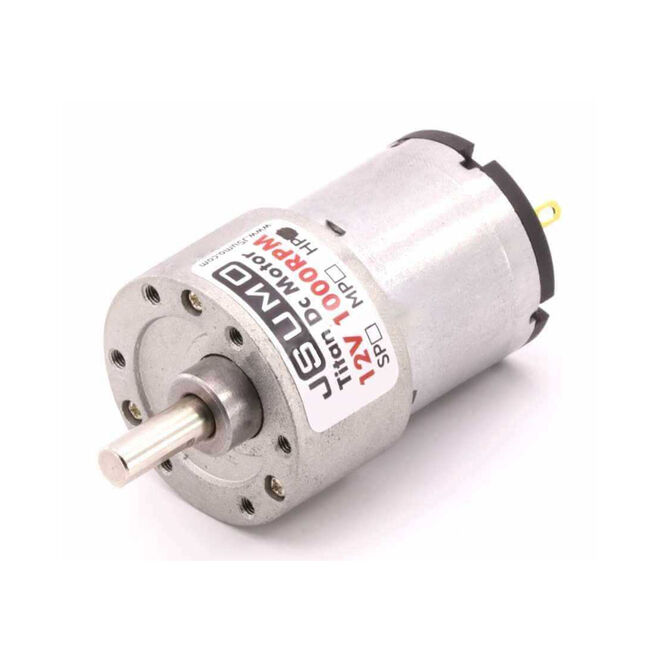

12V 37 mm 1000 RPM Jsumo Titan DC Motor
12V 37 mm 1000 RPM Jsumo Titan DC Motor
:
987.73 TL + VAT
:
1,185.27 TL
