Mini Adjustable 3A Step-Down Voltage Regulator
  • Mini Adjustable 3A Step-Down Voltage Regulator
  • Mini Adjustable 3A Step-Down Voltage Regulator

Mini Adjustable 3A Step-Down Voltage Regulator

Product Code : 11747 Brand / Origin :  China
Post Comment
Price: 1,14 USD
In Stock : 183
Quantity:
Add to Shopping List
This product rated 5/5 based on 1 customer reviews.

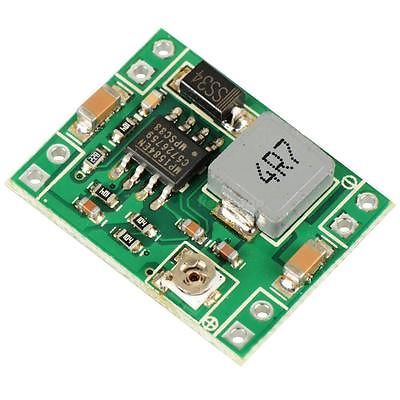

This DC-DC step-down voltage regulator board has a step-down switching regulator on it. The regulator can pass through current up to 3A on itself. It's input voltage range is 4.5-28V and you can get an output voltage adjustable between 0.8-20V via the mini potentiometer on the board. You can use this voltage regulator board in hobby and robotic projects.
When using this board, the input voltage always must be higher than output voltage. IN+ is positive voltage input, IN- is GND input, OUT+ is positive voltage output, OUT- is GND output.
Features:
  • Input Voltage: 4.5-28V
  • Output Voltage: 0.8-20V
  • Output Current: 3A

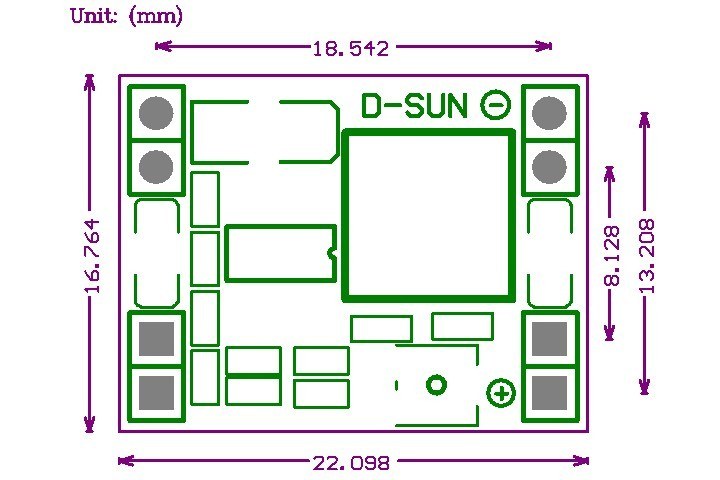

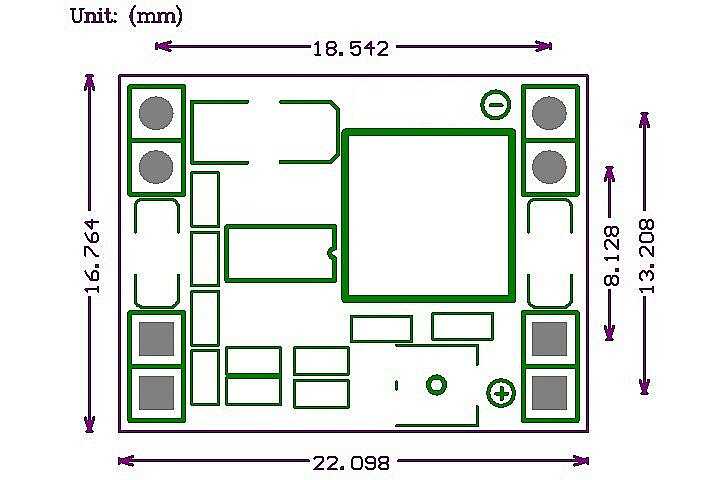

  • PCB Size: 23x17x4mm
