XL4015 CC-CV Step-Down Module - 5A

XL4015 step-down module; It is an electronic module that lowers the voltage. The abbreviation CC-CV stands for constant current and constant voltage. This product, which is a step-down voltage regulator, does not have the task of reducing and increasing the amperage. current always stays constant. You can also find our voltage amplifier models here.



Your power supply may have an amperage rating of 50-100A. The device you want to use, the more current it consumes. This device can only limit this situation. Adjustment is made between 0-5A and when you set 3A, for example, when your device at the output wants to draw more than 3 amps, the circuit automatically cuts the current. In this case, the lower blue LED lights up. Also, you cannot see the current limit you set on the screen. You can learn your current limit when your load reaches the maximum current value and the blue LED lights up. When high current is drawn from this product, the card will heat up. Card; It turns itself off thanks to the overheating protection, but your card may be damaged due to high temperature. Therefore, when you use the card, you should monitor the temperature and cool the card if necessary.

3 (35).jpg (76 KB)
2 (51).jpg (60 KB)

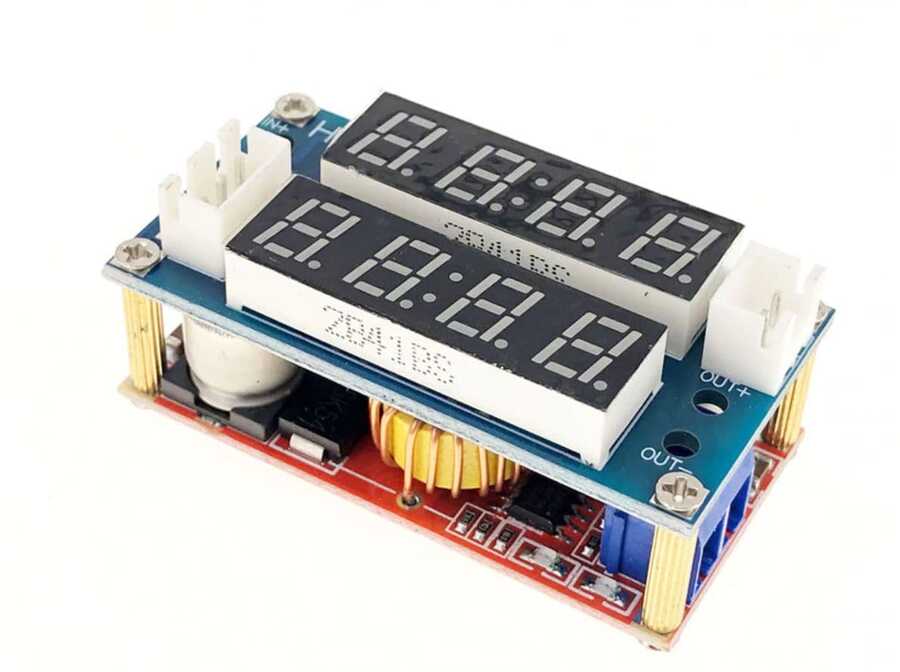

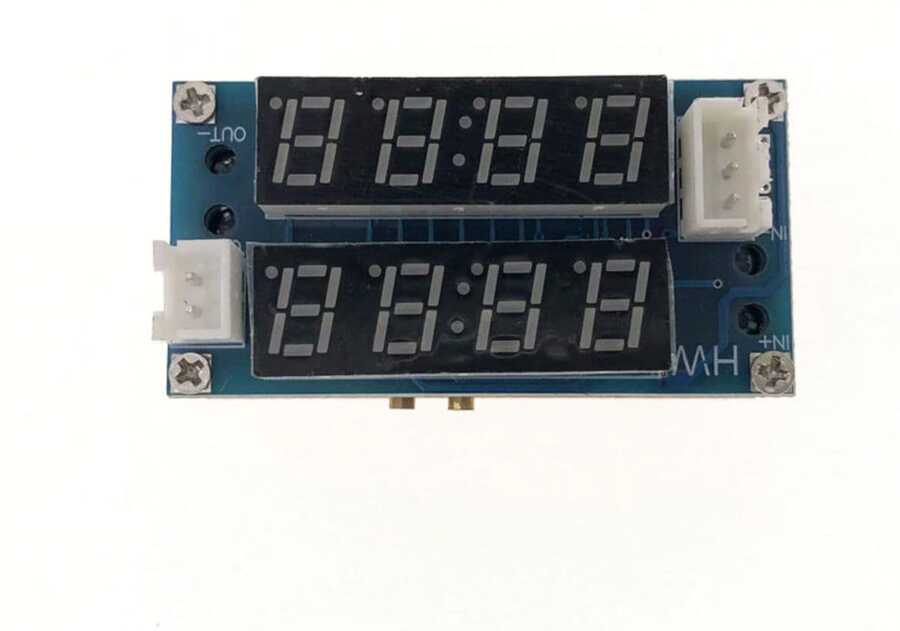

While the output voltage is displayed on the upper screen, the output current is displayed on the lower screen. Input voltage is not visible on the screen. With the blue trimpots, the output voltage is adjusted and the output current is limited. In addition, due to the first use, the blue trimpots may become empty. You don't need to worry about this situation. You can solve this problem by turning the blue trimpots 40-50 turns if necessary. Your input voltage can constantly vary between 5V and 32V. This should not surprise you because you can get the constant voltage value you want at the output. You also installed the system, but the electricity went out. When the electricity comes, the system you set up stays in the same setting and there is no change in your values.

4 (17).jpg (54 KB)

XL4015 Voltage Step Down Module - 5A Technical Specifications:

  • Model: XL4015
  • Input Voltage: 5V-32V/DC
  • Output Voltage: 1.27V-30V/DC
  • Output Current: 5A (Max.)
  • Efficiency: 95% (Decreases as input and output difference increases.)
  • Switching Frequency: 300KHz
  • Output Ripple: 50mV (Max.) 20M bandwidth
  • Operating Temperature: -40°C to +85°C
  • Display: Dual - Color
  • Size: 51x26x23mm



Package Included:

  • 1 x XL4015 Shielded Voltage Stepper
