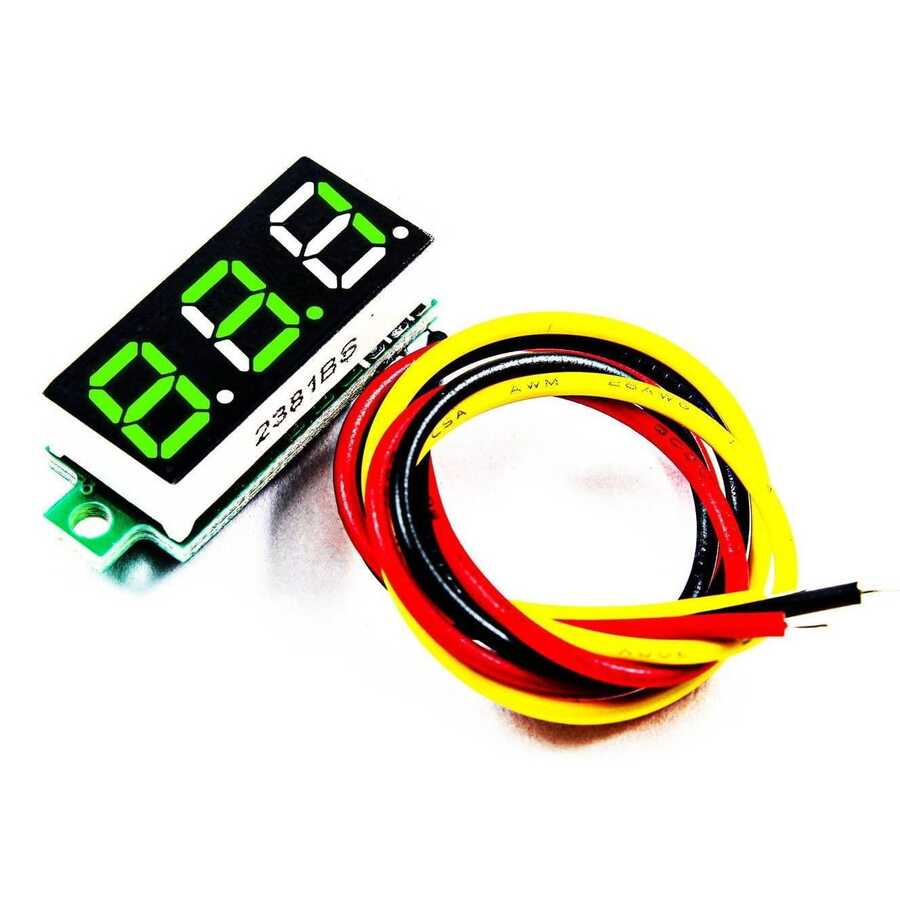

0.28inch 0-100V/DC 3-Wire Mini Digital Voltmeter

With 0.28inch 0-100V/DC 3-wire mini digital voltmeter, DC voltages between 0V-100V can be measured. It provides an easy-to-understand interface with its segment display.






0.28inch 0-100V/DC 3-Wire Mini Digital Voltmeter Technical Specifications:

  • Display: 0.28" Led Display, Mini Size
  • Protection: Reverse Connection Protection 3-Wire
  • Input Voltage: 4.0 ~ 40V (with reverse connection protection function)
  • 3-Wire Detection Voltage: 0.0 ~ 100V
  • Accuracy: 3%
  • Refresh Time: 200mS/times
  • Input Current: <20mA
  • Operating Temperature: -10 ~ + 65°C
  • Operating Humidity: 10 to 80% (without condensation)
  • Working Pressure: 80~106kPa
  • Cable Length: 10cm
  • Size: 23 x 10mm



0.28inch 0-100V/DC 3-Wire Mini Digital Voltmeter Wiring:

  • Red: Voltmeter Supply Positive Lead
  • Black: Voltmeter Supply Negative Ground Lead
  • Yellow: Voltmeter Voltage Measuring Lead
