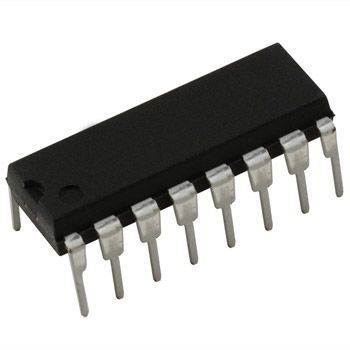

ULN2003 - DIP16 IC

ULN2003 - DIP16 IC

The ULN2003 is a 7-channel open-collector Darlington transistor driver IC. Each channel can handle up to 500 mA of current, making it ideal for driving relays, stepper motors, LEDs, and other inductive loads. The IC is compatible with TTL and CMOS logic levels and includes built-in flyback diodes for protection against voltage spikes generated by inductive loads. Its DIP-16 package makes it easy to use in breadboards and prototype circuits.

ULN2003 IC Specifications:

• Number of Channels: 7 Darlington transistor outputs

• Output Current (I_O): Up to 500 mA per channel

• Output Voltage (V_CE): Maximum 50V

• Input Compatibility: TTL and CMOS logic levels

• Built-in flyback diodes for inductive load protection

• Package Type: DIP-16

• Operating Temperature Range: -20°C ~ +85°C

Useful Documents:

• ULN2003 Datasheet
