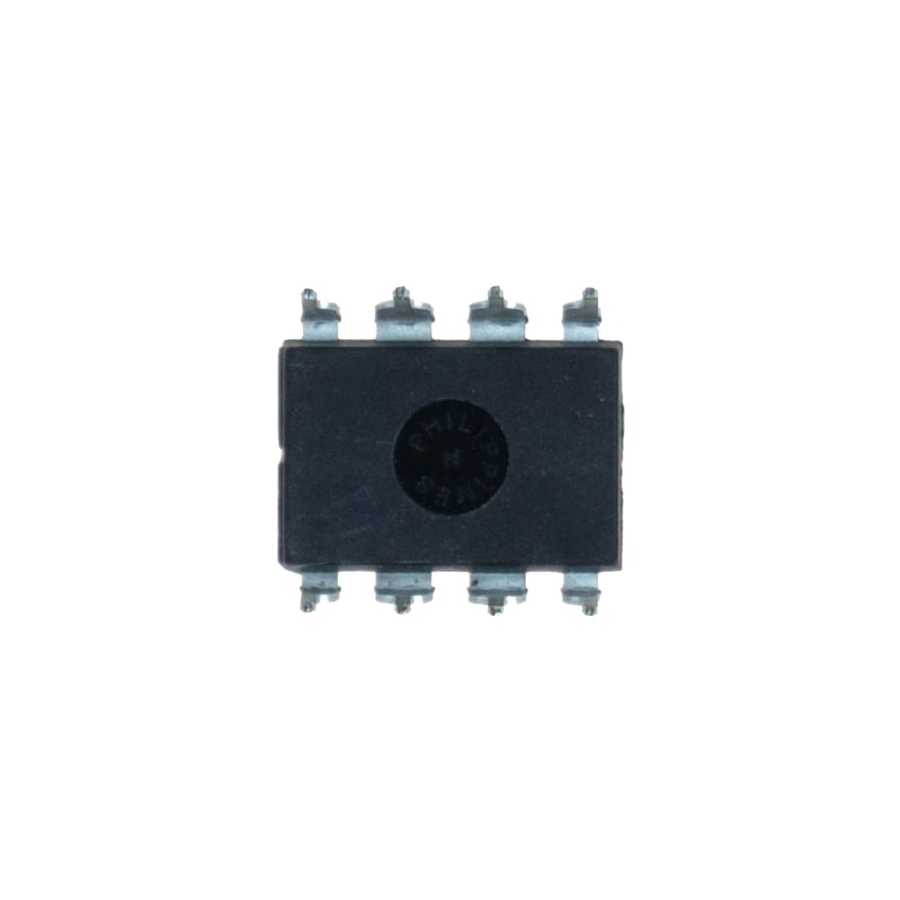

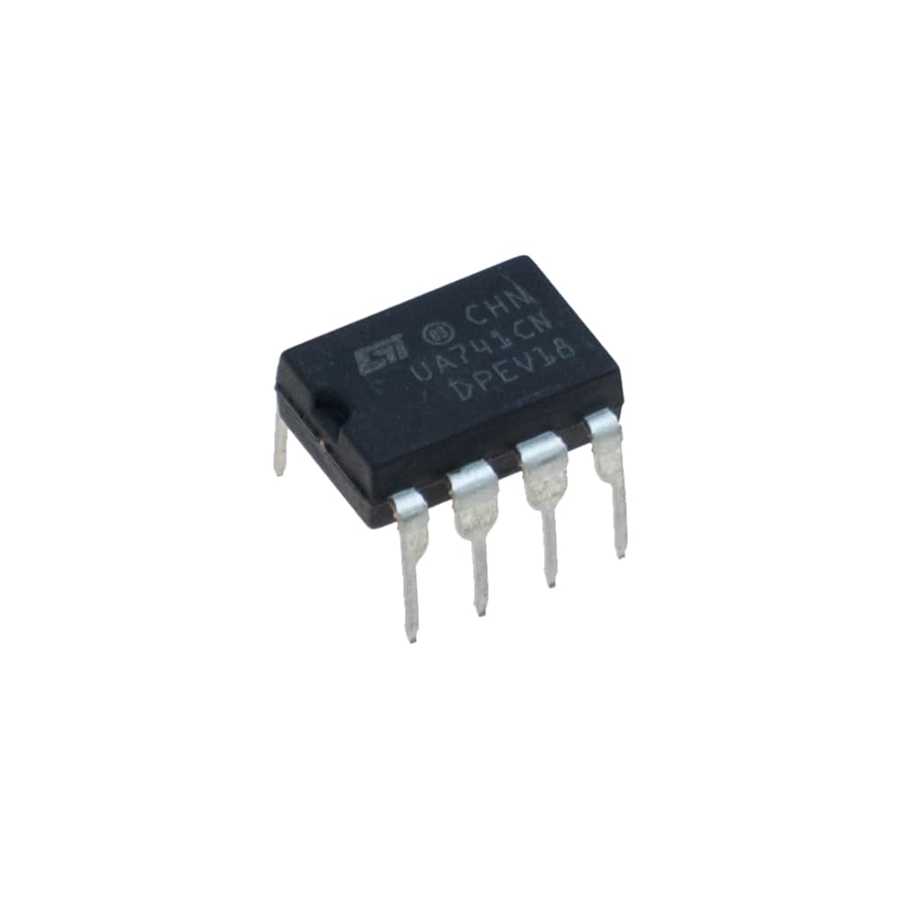

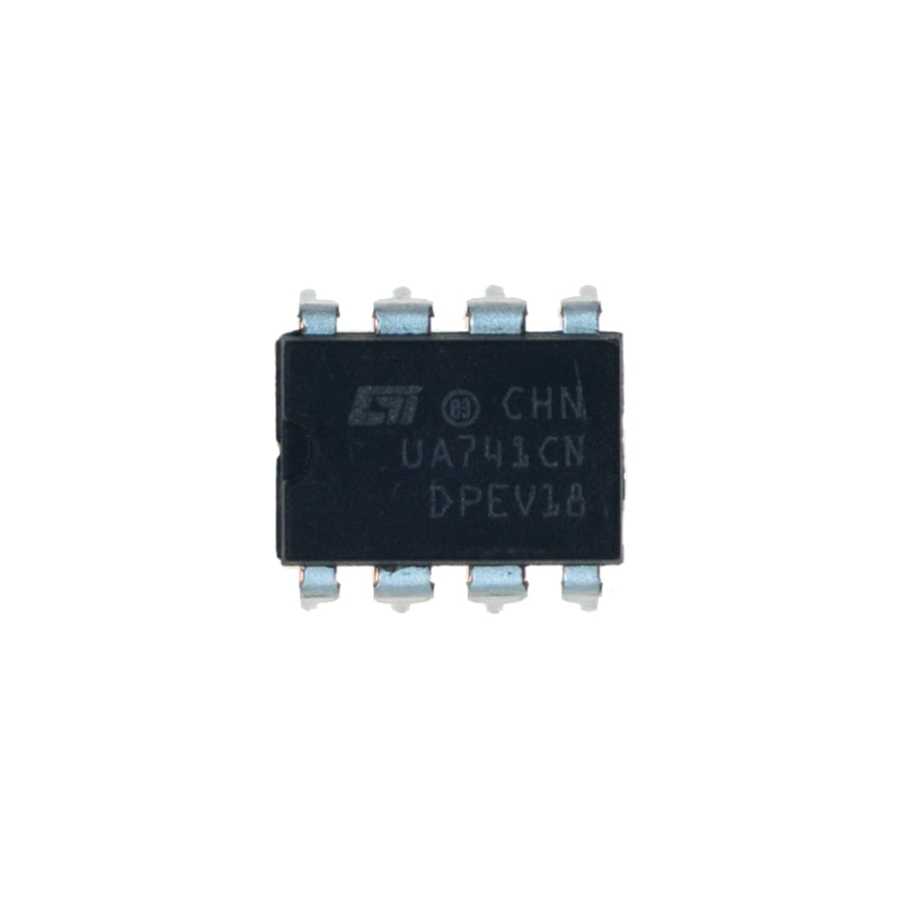

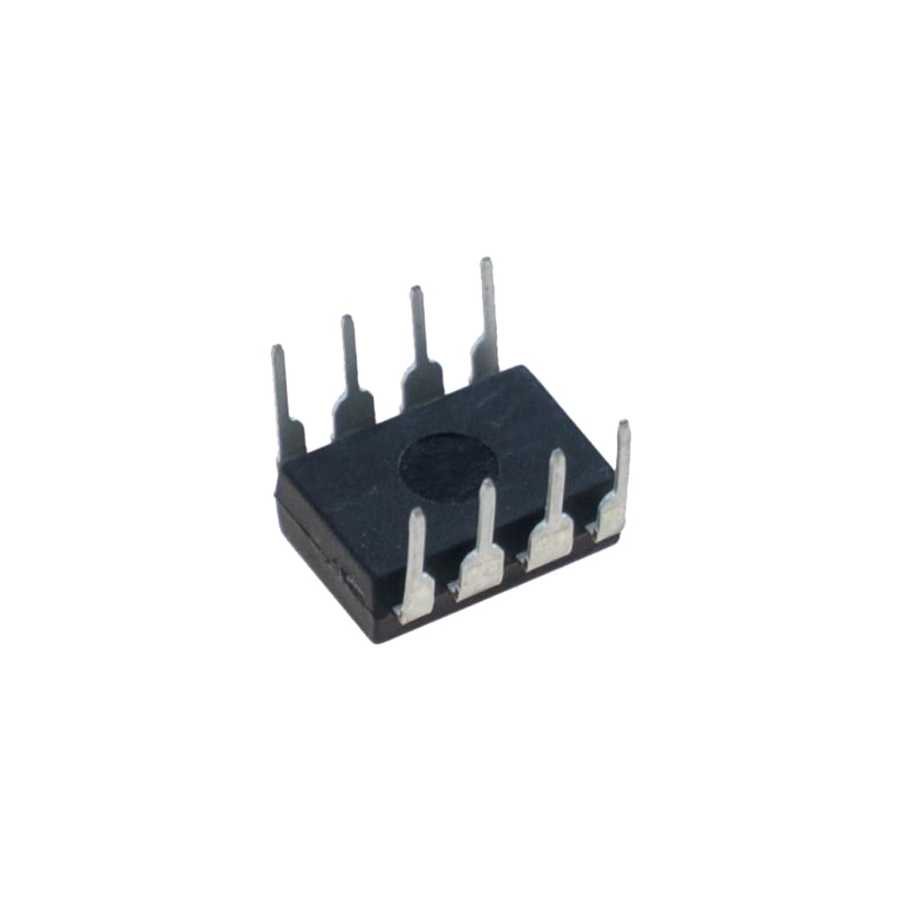

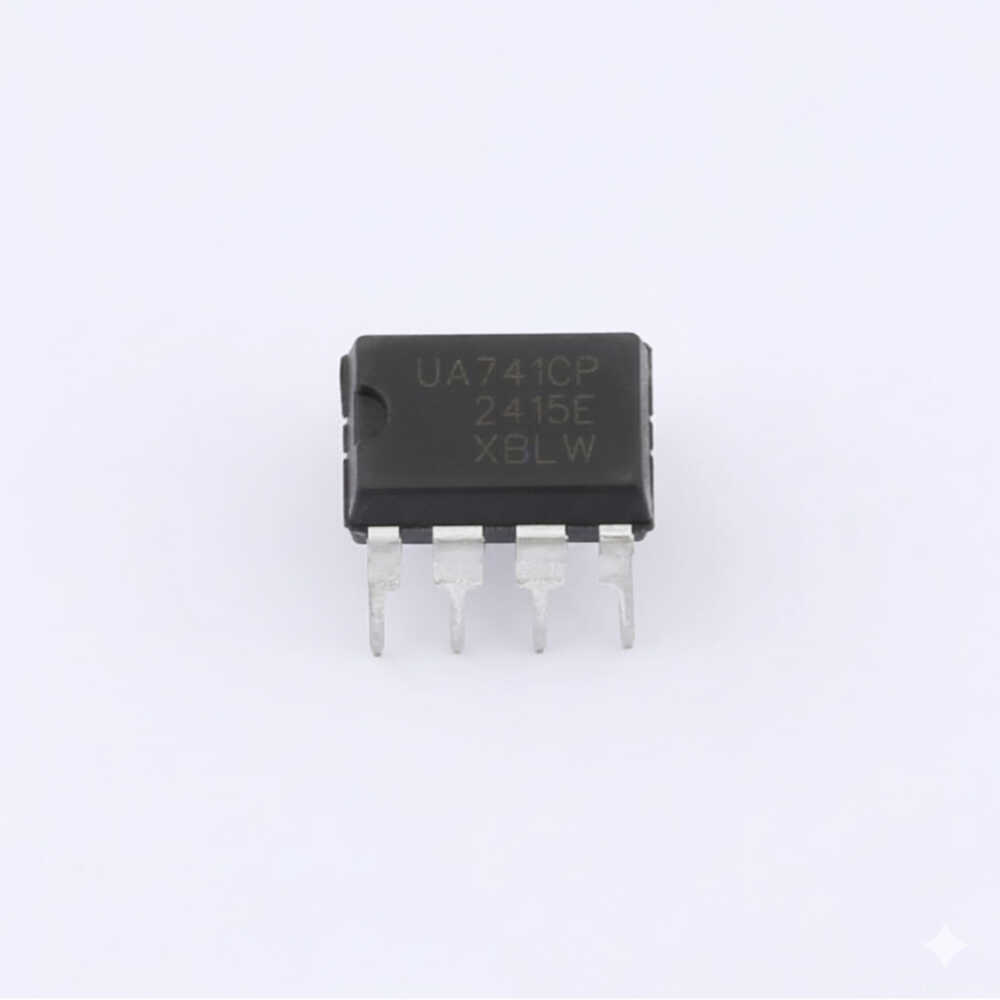

UA741 - DIP8 IC

UA741 IC SOP-8

The UA741 is a general-purpose operational amplifier (op-amp) IC widely used in signal conditioning, filtering, amplification, and analog computation circuits. It features high input impedance, low output impedance, and excellent frequency stability. The UA741 also includes internal overload protection and can operate with either single or dual power supplies, making it a versatile choice for many analog applications.

UA741 IC SOP-8 Specifications:

• Type: General-purpose operational amplifier (op-amp)

• Operating voltage: ±3V – ±18V (or single supply 6V – 36V)

• Gain bandwidth: 1 MHz

• Voltage gain: 200,000 (typical)

• Input impedance: 2 MΩ

• Output current: ±25 mA

• Slew rate: 0.5 V/µs

• Package type: SOP-8 (surface-mount small package)

• Applications: Filters, analog computation circuits, amplifier designs, sensor signal processing
