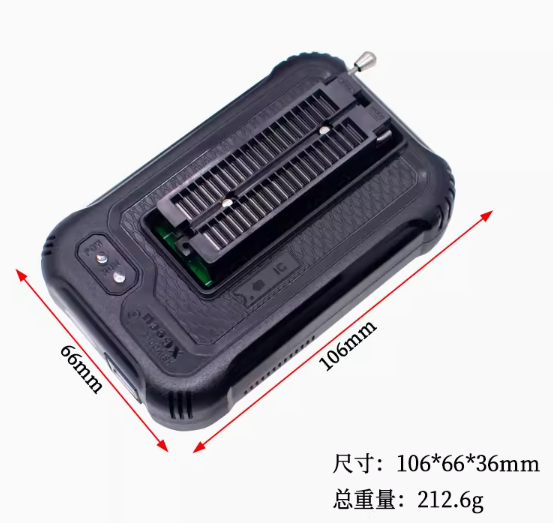

TL866ll Plus Universal USB Programmer (With ICSP Feature )

XGecu TL866II Plus USB High Performance Programmer

The TL866II Plus is a device that allows you to program microcontrollers from different series and families that you frequently use, all through a single board.

The programmer also features an ICSP interface, allowing you to program integrated circuits directly on the board. In addition to microcontrollers, EEPROM, EPROM, and FLASH memory chips can also be programmed. A complete list of supported devices is available in the documentation section.

Technical Specifications:

• Equipped with a 40-pin ZIF socket with built-in voltage protection
• Supports multi-programming with up to 4 programmers simultaneously
• Chips that do not require external high voltage can be programmed using power supplied via USB
• Supports serial downloading and high-speed parallel high-voltage programming via ICSP interface
• Fast programming support for AVR microcontrollers
• Supports all 8-bit Microchip PIC microcontrollers
• TTL chip testing and control support
• SPI BIOS chip support: Available
• NAND Flash support: Available
• 25 NOR Flash maximum capacity: 512M
• Maximum Vpp voltage: 18V
• Vcc voltage range: 1.8V – 6.5V
• Number of supported devices: 15000+
• Easy-to-use computer software for convenient operation

Package Contents:

• 1 x XGecu TL866II Plus USB Universal Programmer
• 1 x USB Connection Cable

Documents / Useful Links:

• Supported Device List
